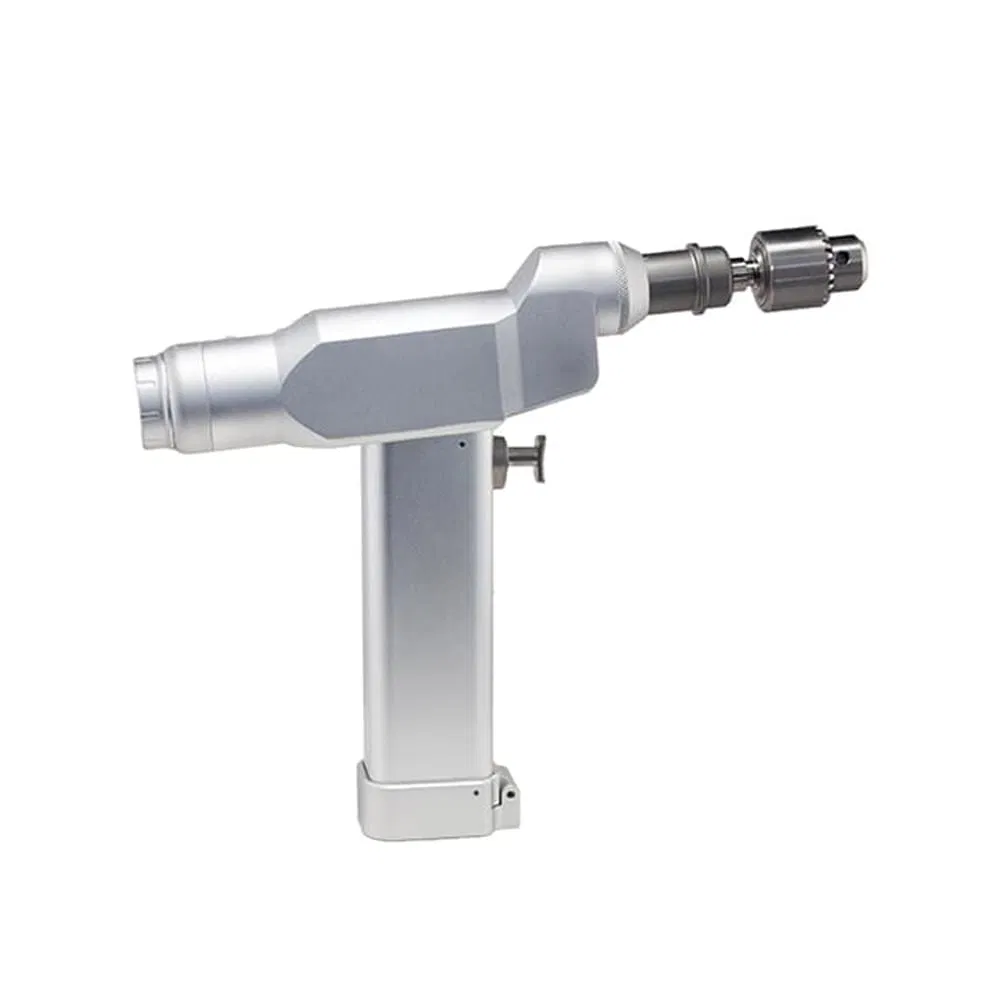

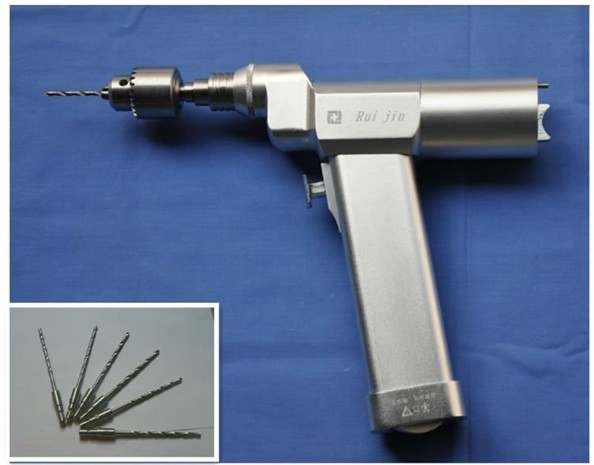

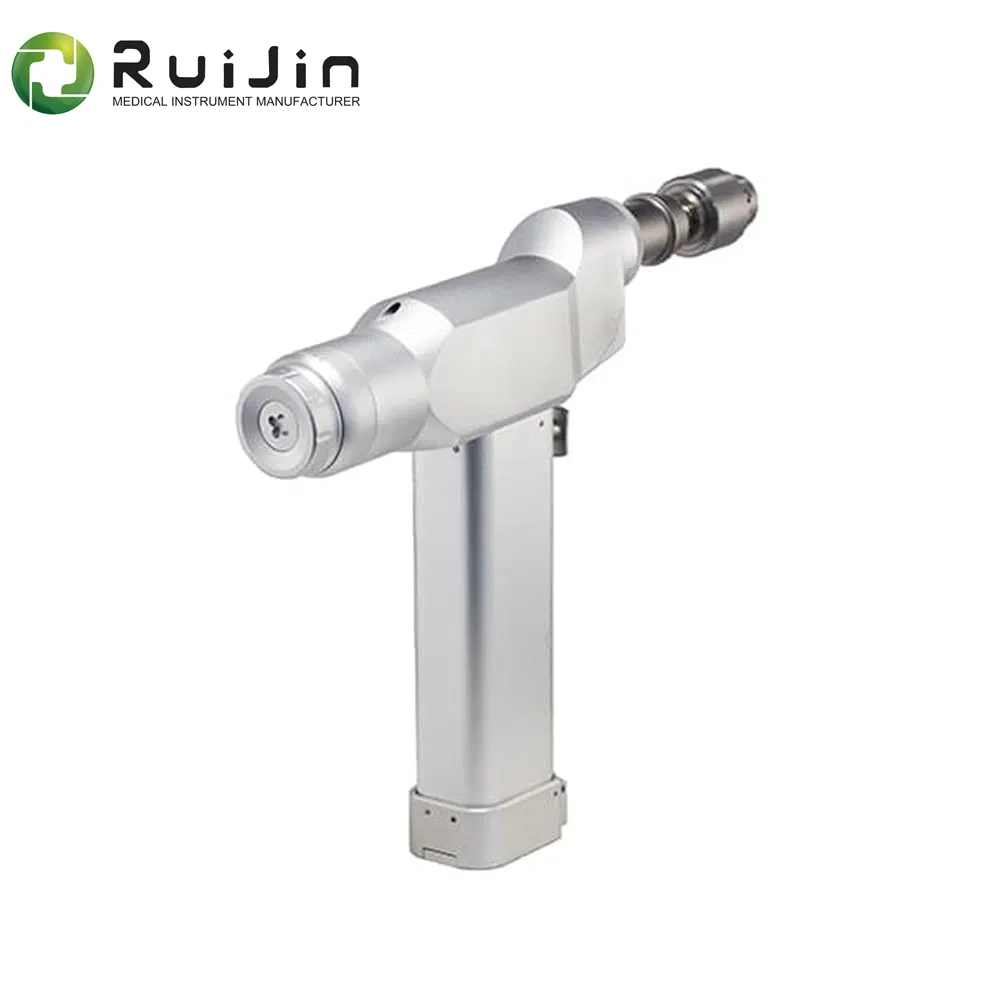

Ruijin Cordless Battery Orthopaedic Bone Drill

1 / 5

Ruijin Cordless Battery Orthopaedic Bone Drill

Customization:	Available
Type:	Drill
Application:	Kirschner Wire, Intramedullary Nail

Send Inquiry

Product Description

Basic Specifications

Model NO.

ND-2011 / Rj79

Material

Stainless Steel and Aluminium

Feature

Reusable

Weight

1700g

Torque

20000g/Cm

Non-Load Speed

600r. M. P.

Charging Time

About 3 Hours

HS Code

9018909000

Production Capacity

10000 Pcs/Year

Cordless Battery Orthopaedic Bone Drill

1. Technical Data

Output Power	130W
Speed (r.p.m)	0-16000rpm
Noise (db)	≤75
Sterilization	≤135ºC
Operation Voltage (V)	14.4V
Hand-piece Temperature Rise	≤25ºC
Radial Run-out	≤ 0.5mm
Battery Type	Ni-MH
Charger Input	AC 220V, 50Hz

2. Product Technical Merits

✓ Autoclavable up to 135ºC

✓ High-performance imported motor

✓ Low noise and minimal vibration

✓ Variable speed for precision control

✓ Lightweight design for accuracy

✓ 4.0mm hollow for needle passage

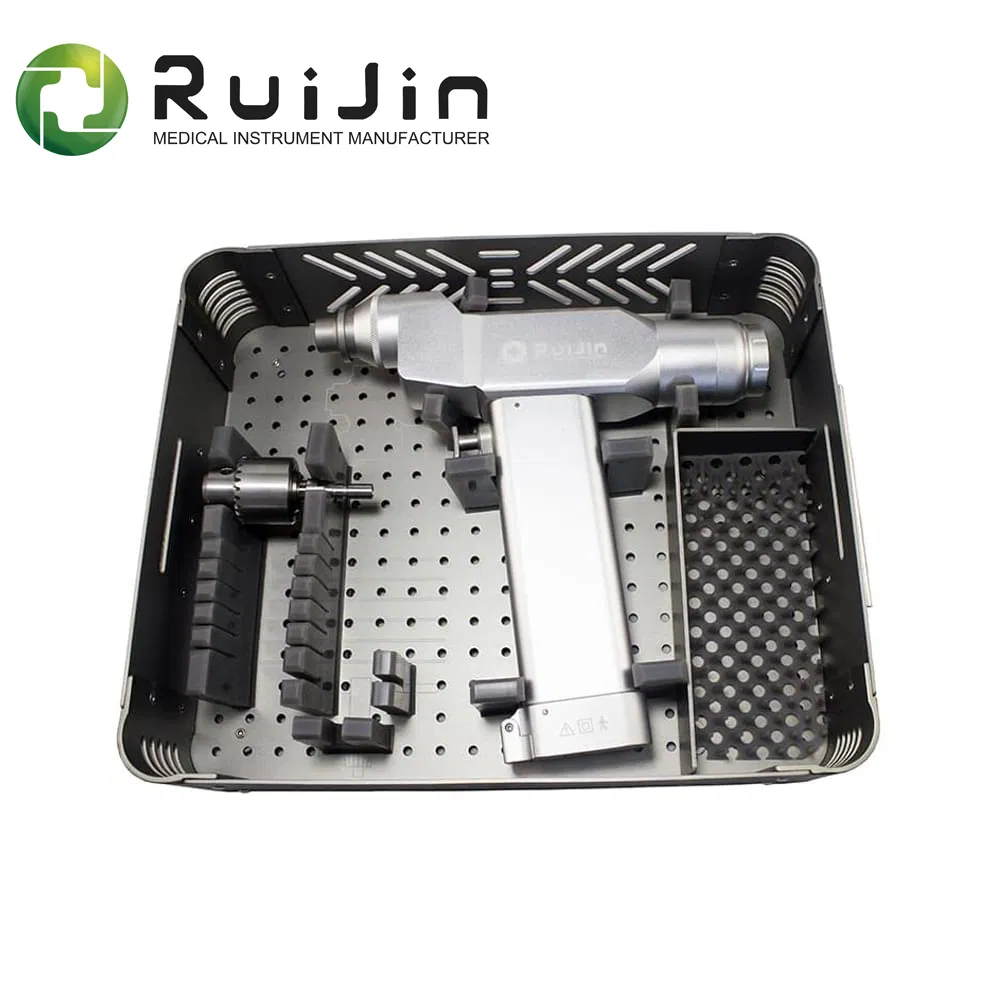

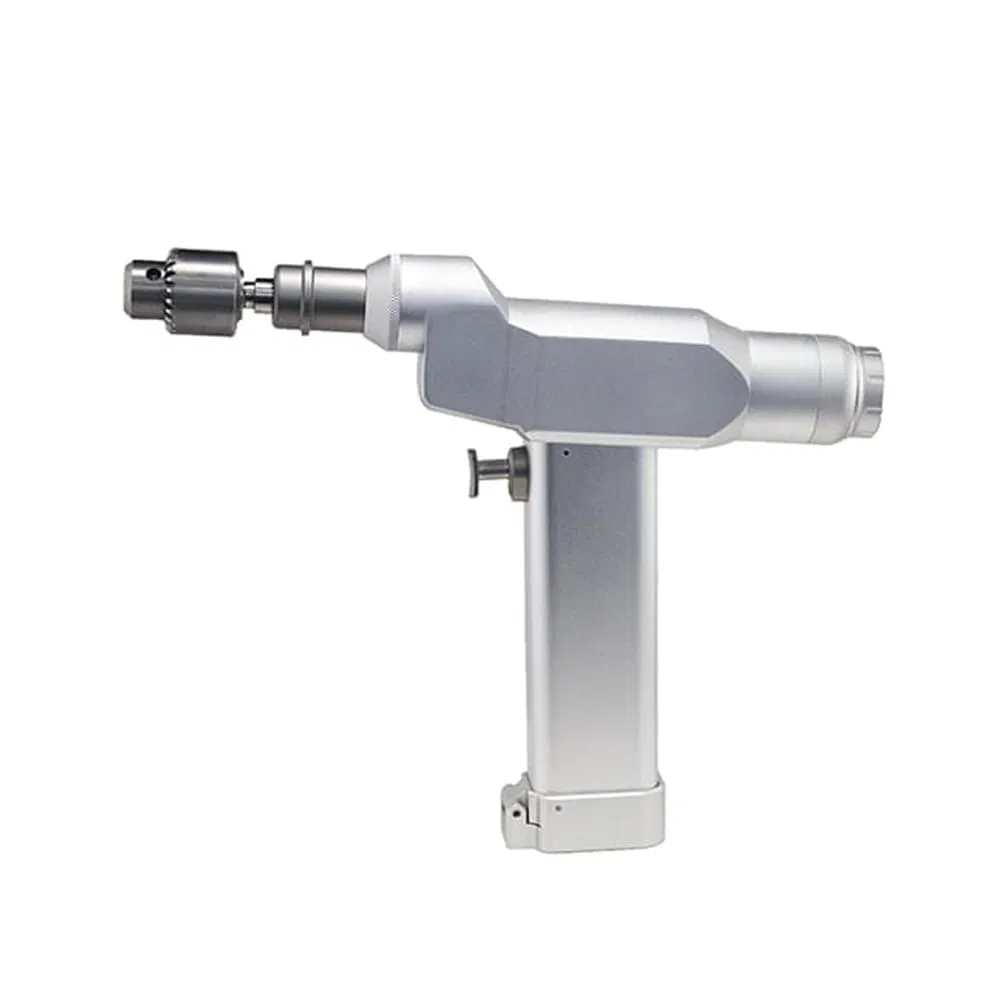

Product Display & Configuration

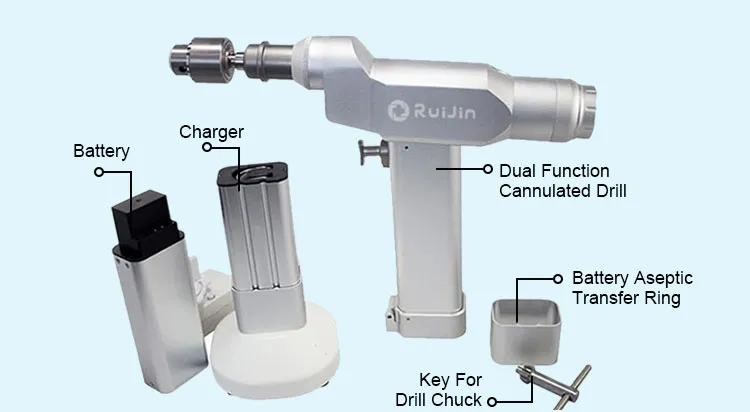

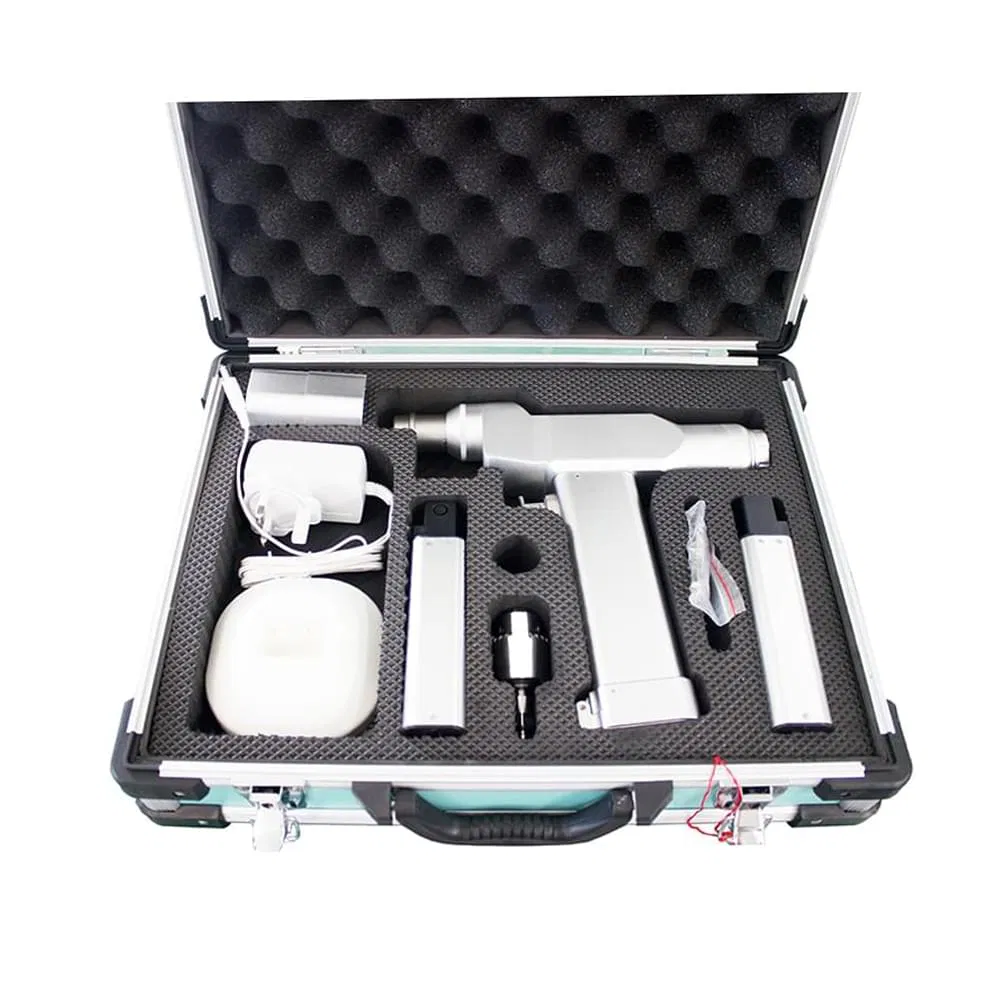

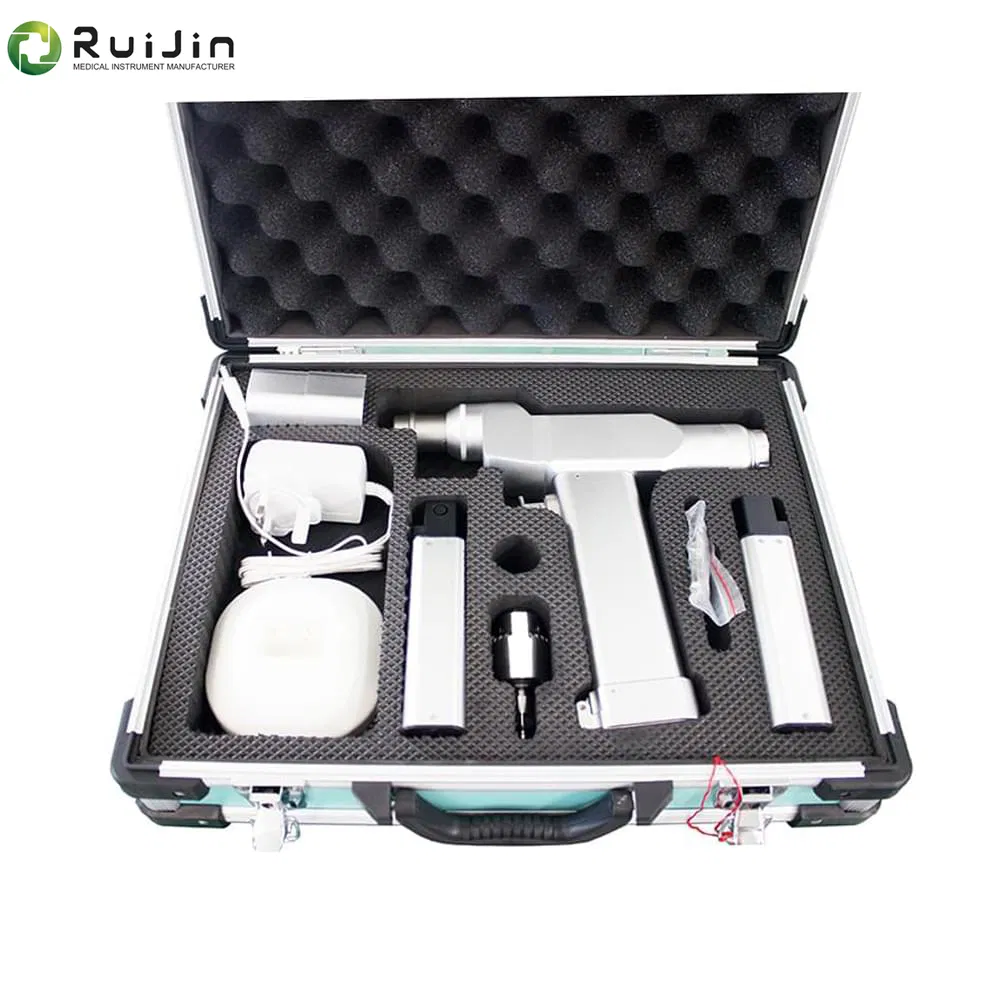

Standard Configuration:

Drill chuck with key, Battery, Charger, Hand piece, Sterilizing channel, Aluminium box.

Quality Certification

Maintenance & Safety Notes

Sterilization: Temperature must be kept below 135°C to prevent motor damage.
Battery Care: Remove battery from the hand-piece when not in use to prevent discharge. Battery cannot be disinfected.
Cleaning: Saw blades and drill bits should be cleaned with a purifier and dried immediately after operation.
Professional Use: Device should only be handled by trained professionals.
Power Compatibility: Supports 110V/60Hz to 220V/50Hz electricity sources.

Frequently Asked Questions

What is the maximum sterilization temperature for this bone drill?

The device is designed to withstand sterilization temperatures up to 135ºC. Exceeding this limit may cause damage to the internal motor.

How long does it take to fully charge the battery?

A full charge typically takes approximately 3 hours using the standard provided charger.

Can I use different types of needles with this drill?

Yes, the drill features a 4.0mm hollow channel, allowing all major brands of needles to pass through easily.

What kind of battery does the system use?

The system utilizes a Ni-MH (Nickel-Metal Hydride) battery, which is reliable and does not suffer from memory effect.

Is the drilling speed adjustable?

Yes, it features variable speed control (0-16000rpm for specific parts) to ensure better accuracy during various surgical procedures.

What surgeries is this bone drill suitable for?

It is widely used in Trauma Surgery, Thoracic Surgery, Joint Operations, and Veterinary Orthopedic Surgery.
