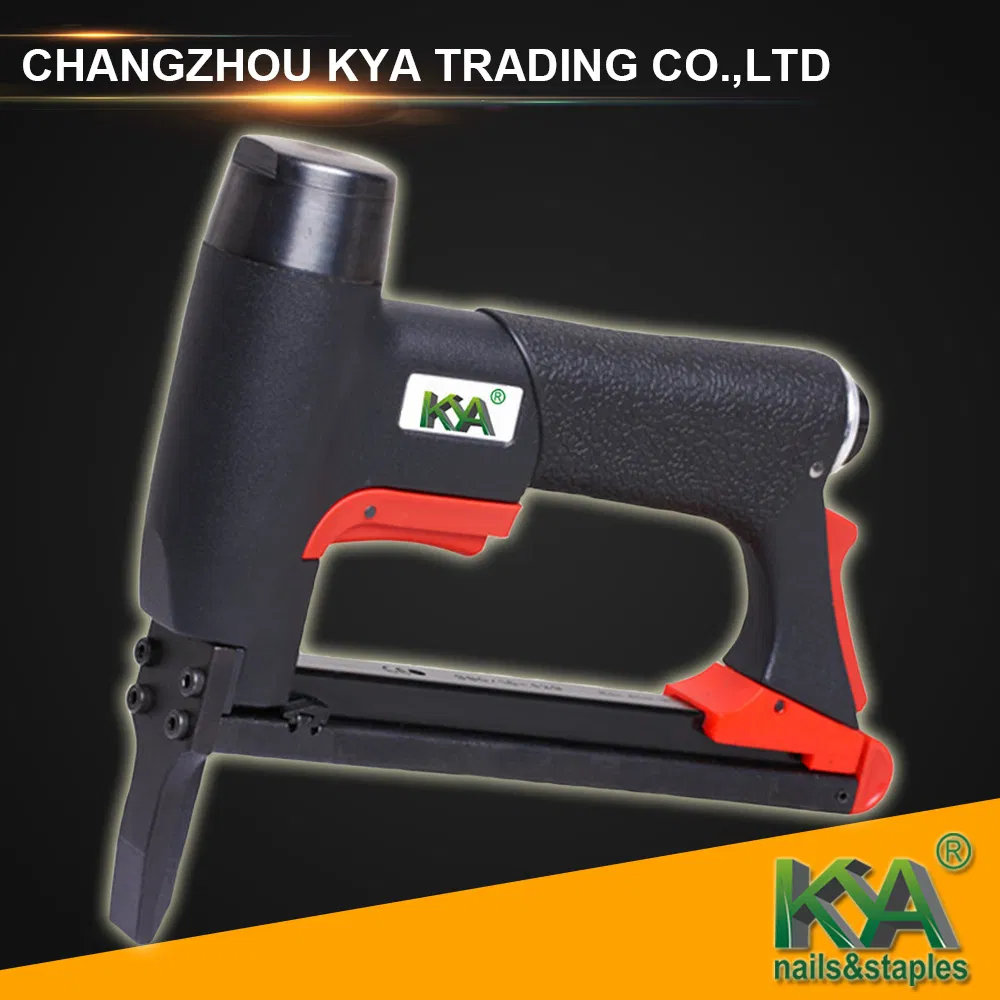

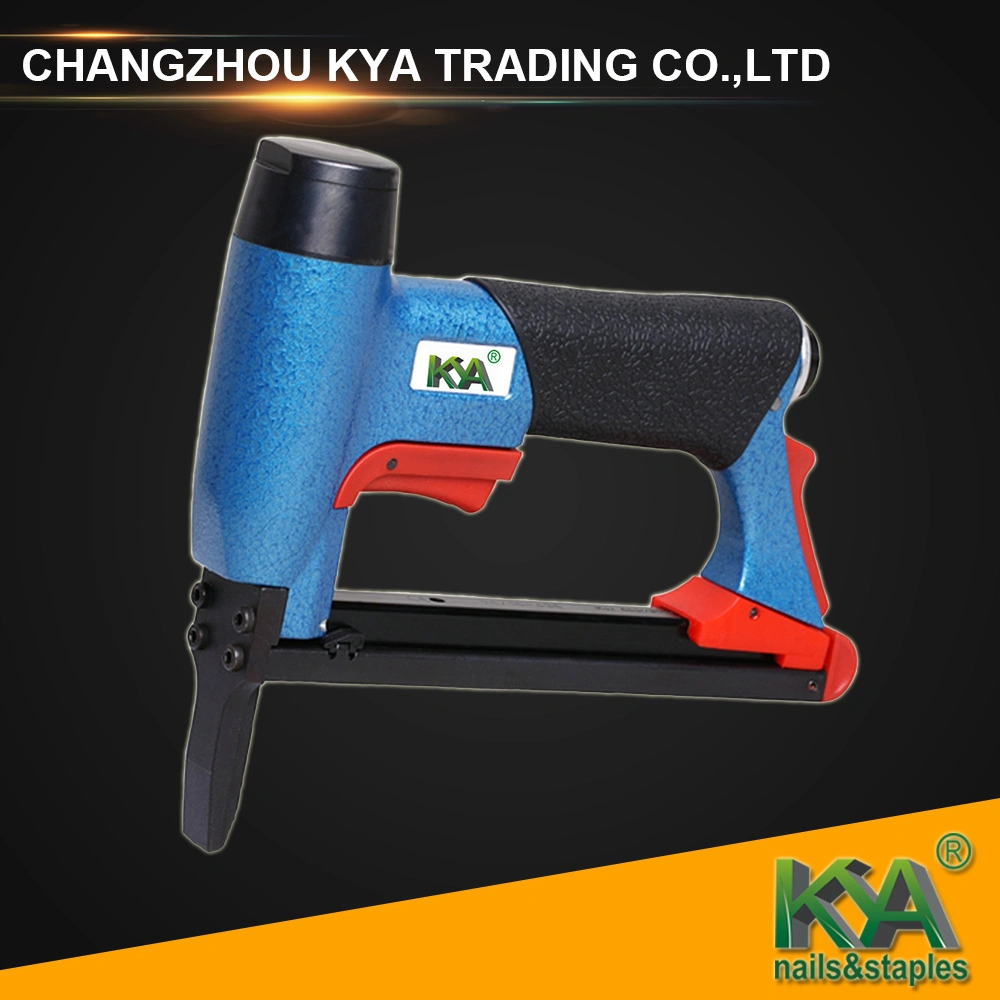

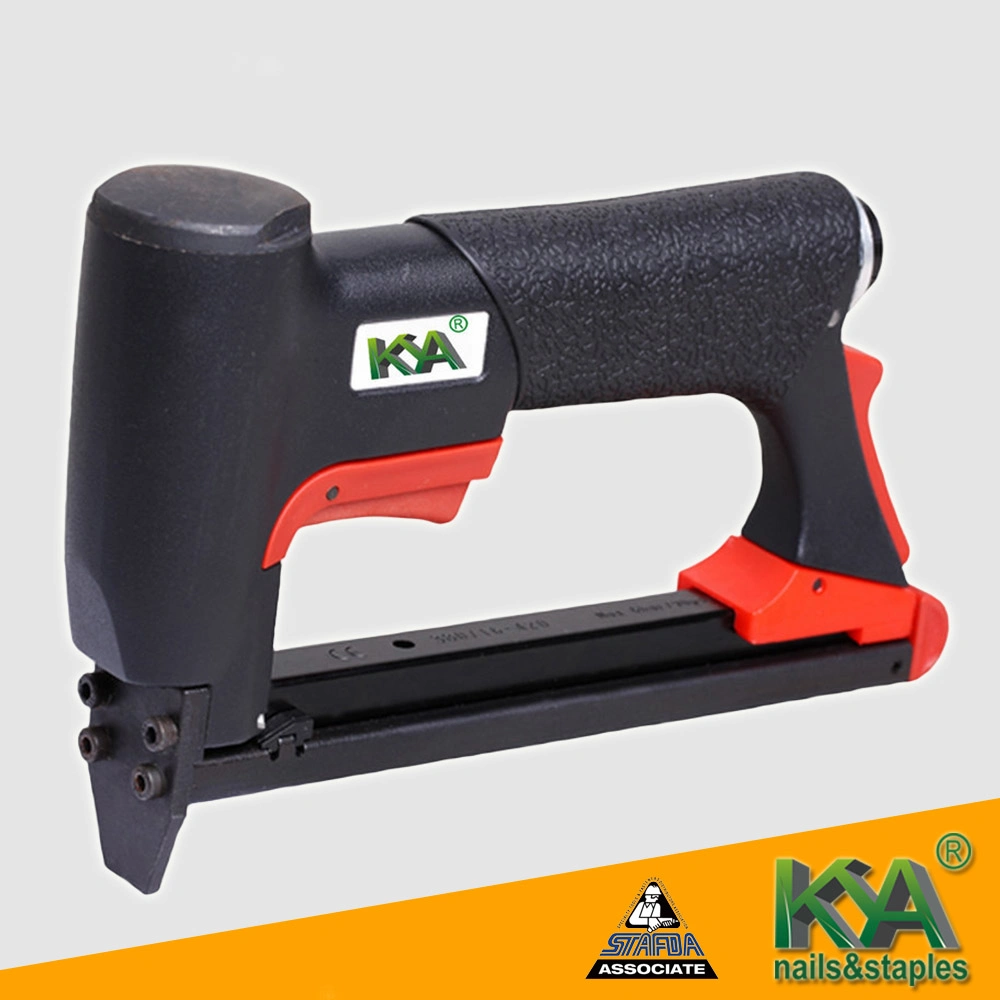

(7116) Air Staple Nail Gun for Joining, Construction, Furnituring

1 / 5

(7116) Air Staple Nail Gun for Joining, Construction, Furnituring

Customization:	Available
Condition:	New
Customized:	Customized

Send Inquiry

Product Description

📋 Basic Information

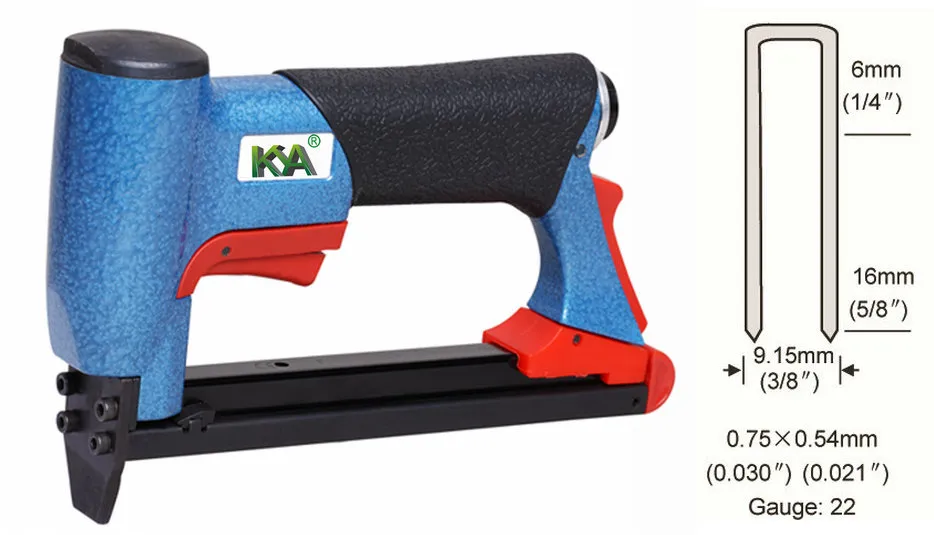

Model NO.	7116
Nail Length	6-16mm
Operating Pressure	70-120 psi
Weight	0.89kgs (1.96lbs)
Load Capacity	100 PCS

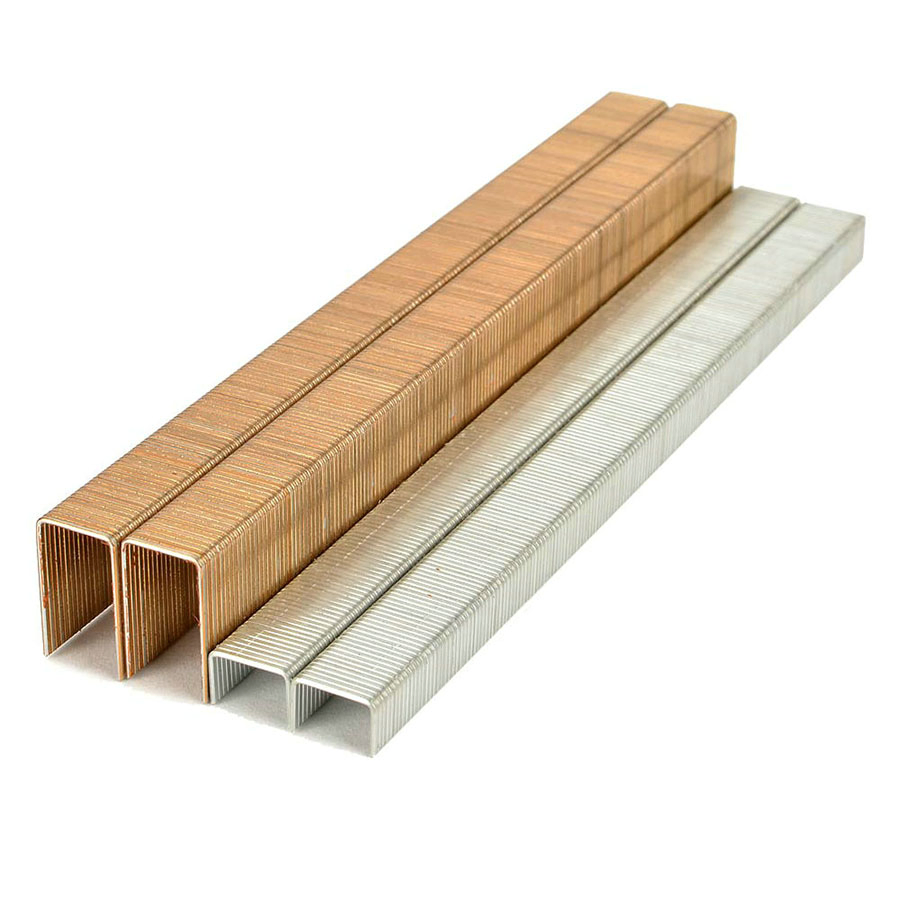

Staple Thickness	22 Gauge 0.75X0.54mm
Staple Crown	9.15mm (3/8")
Power Source	Pneumatic
Usage	Joining, Construction, Furnituring
Origin	China

⚙️ Technical Specifications

Name	7116 Staple Nail Gun
Tool Dimensions	215x50x165mm (8.46x1.97x6.50 in.)
Operating Pressure	60-100psi (4-7kgs/cm2)
Staple Length	4mm-16mm
OEM Service	Available
Customization	Available upon drawing or sample

⭐ Product Features

360° exhaust direction

Light die cast body of aluminum alloy

Extremely easy jam clearing design

Bottom loading system

🏆 Our Advantages

Tested for 300,000 working cycles

ISO9001 international certification compliance

Key wear parts imported from Taiwan for durability

100% spare parts availability

High power output suitable for hardwood applications

🛠️ Usage & Applications

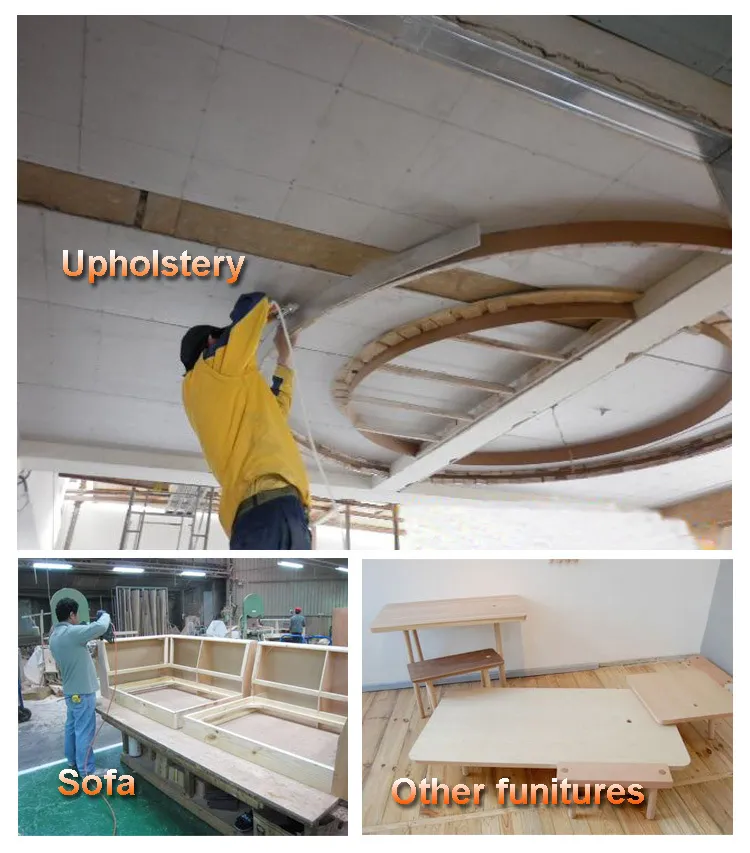

Ideal for Joining, Construction, Furnishing and various woodworking tasks.

🔧 Service & Troubleshooting Guide

Symptom	Problems	Solutions
Air Leak (Cylinder cap)	Loose head valve piston seal or o-rings; Damaged gasket.	Check and replace the head valve piston set or gasket.
Air Leak (Trigger)	Damaged o-ring in trigger valve or dirt accumulation.	Clean trigger valve or replace o-rings.
Weak/Sluggish Operation	Worn piston o-ring; Inadequate lubrication.	Add 2-6 drops of oil or replace piston o-ring.
Tool Jams Frequently	Damaged driver (piston unit) or driver guide.	Check and replace driver or driver guide.
Nails Cannot Be Shot	Driver unit not returning; Weak pusher spring.	Replace nail pusher compression spring or check driver position.

📸 Product Gallery

❓ Frequently Asked Questions

1. What is the recommended operating pressure for the 7116 Air Stapler? The tool works efficiently between 60-100 psi (4-7kgs/cm2), depending on the hardness of the material.

2. Can I use different sizes of staples with this gun? Yes, the 7116 model supports staple lengths ranging from 4mm to 16mm with a 22 Gauge thickness.

3. Does the tool support OEM or custom branding? Yes, OEM service is available. We can also customize colors and designs based on your specific drawings or samples.

4. How do I maintain the tool to prevent sluggishness? Regular lubrication is key. We recommend placing 2 to 6 drops of pneumatic tool oil in the air inlet regularly to keep the o-rings moving smoothly.

5. Are spare parts easily available if the tool needs repair? Absolutely. We supply 100% of the spare parts, and most wearing parts are compatible and easily replaceable to ensure a long tool lifespan.

6. What certifications does this product hold? Our products are manufactured under strict quality control and carry CE, SGS, and ISO9001 certifications.
