Product Description

Product Overview

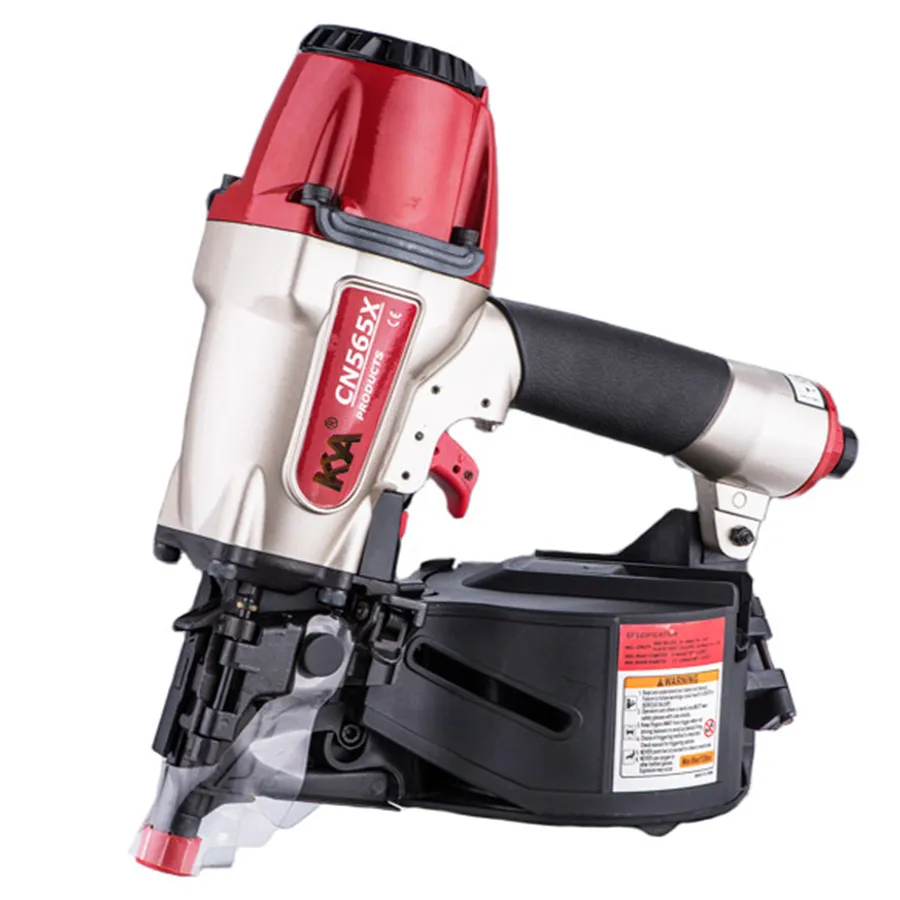

CN565X Pneumatic Coil Nail Gun

✓ Rapid Fire: 10 times/second high-speed performance.

✓ Lightweight Design: Aluminum body for long-lasting durability.

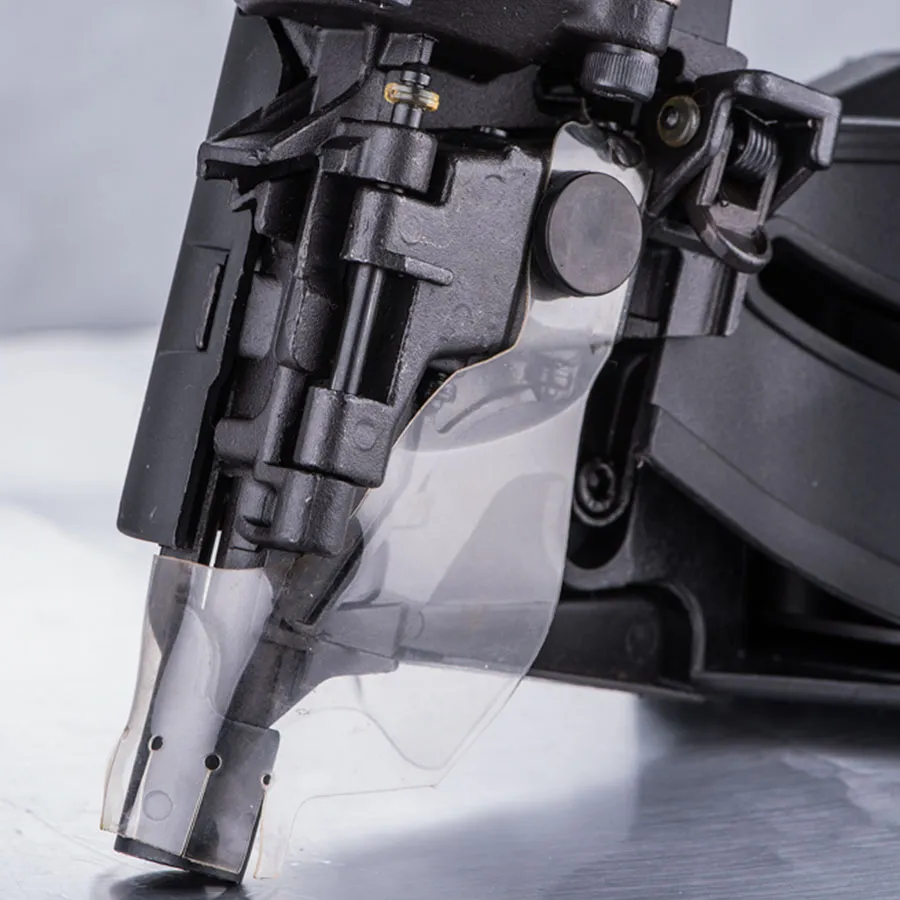

✓ Surface Protection: Soft rubber foot prevents damage to soft woods.

✓ Adjustable Exhaust: Conveniently directs air away from the user.

Technical Specifications

Model	CN565X	Weight	3.67kgs (8.07lbs)
Dimensions	315mm x 128mm x 306mm	Load Capacity	225-300 Nails
Operating Pressure	70-120psi (5-8.3bar)	Nail Length	32mm - 65mm (1-1/4" - 2-1/2")
Nail Shank Dia.	2.1mm - 2.5mm	Nail Head Dia.	5.0mm - 6.0mm
Body Material	Aluminum	Shank Type	Smooth, Screw, Ring
Automation	Semi-automatic	Type	Coil Nail Gun

Applications

This professional-grade coil nail gun is ideal for a wide range of construction and industrial tasks:

➔ Decking and Siding
➔ Hardboard and Cement Siding
➔ Sheathing and Fencing
➔ Roofing Decking & Exterior Trim
➔ Furring and Strapping
➔ Wood Pallet Manufacturing

Packaging & Delivery

We provide professional and secure packaging solutions to ensure product integrity during transit.

Standard Packing: 4 Boxes/CTN, 22 Pallets per 20' container. Neutral kraft cartons or customizable colorful packaging available upon request.

Frequently Asked Questions

What materials can this nail gun be used on?

It is highly versatile and suitable for decking, siding (including hardboard and cement), fencing, and wood pallet manufacturing.

What type of nails are compatible with the CN565X?

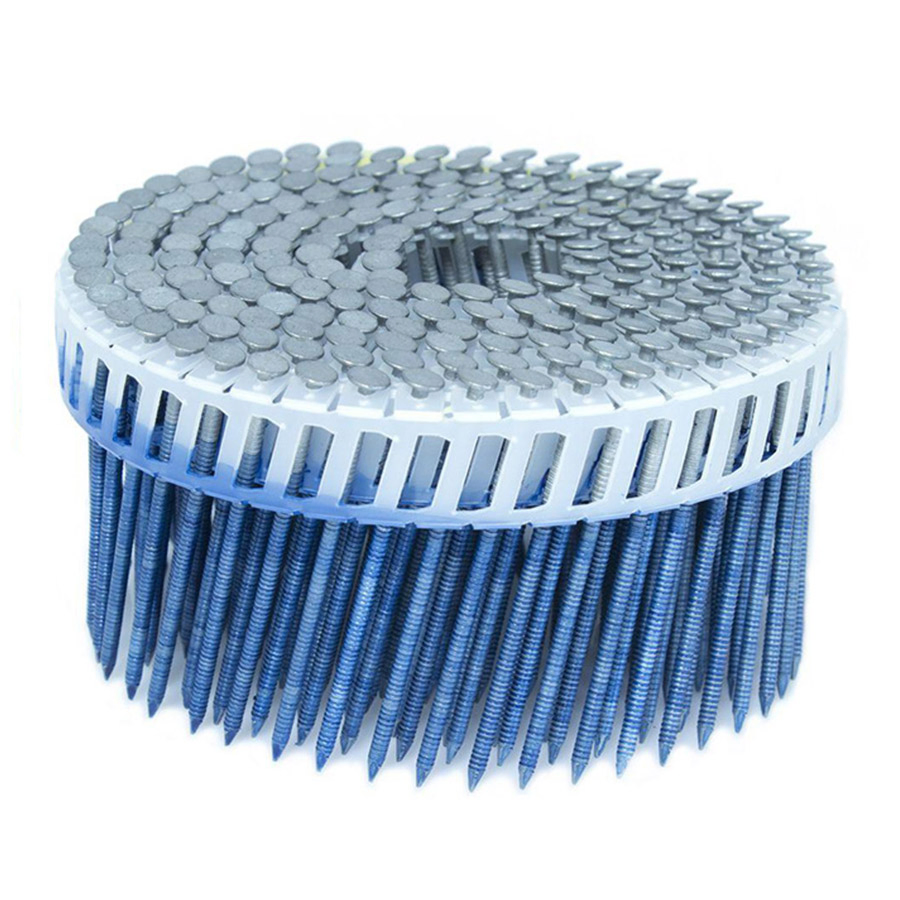

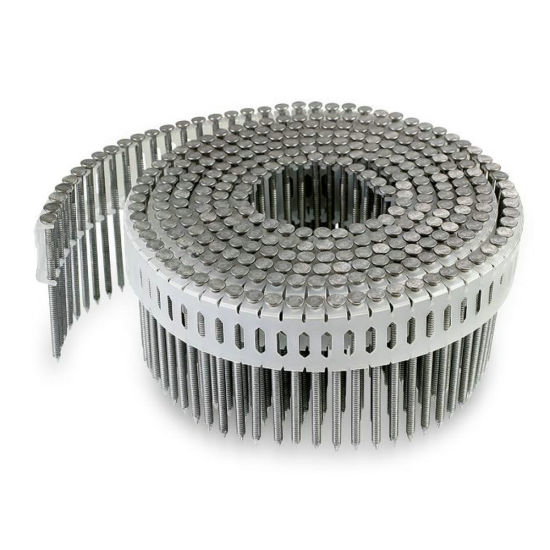

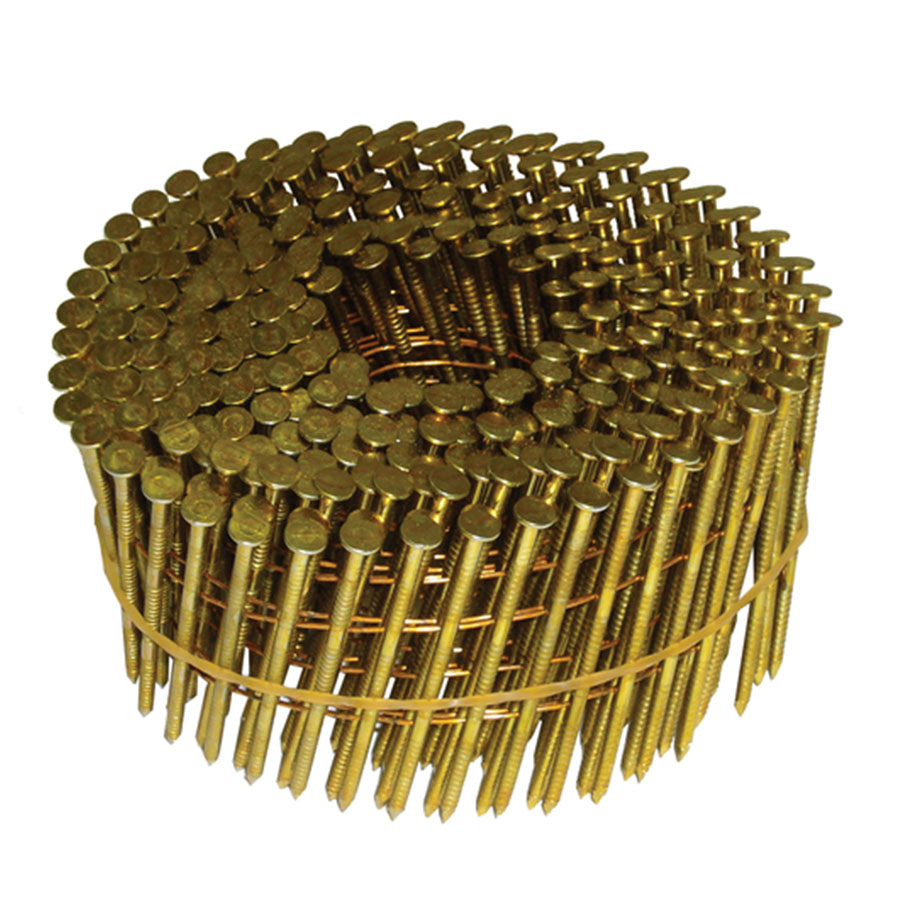

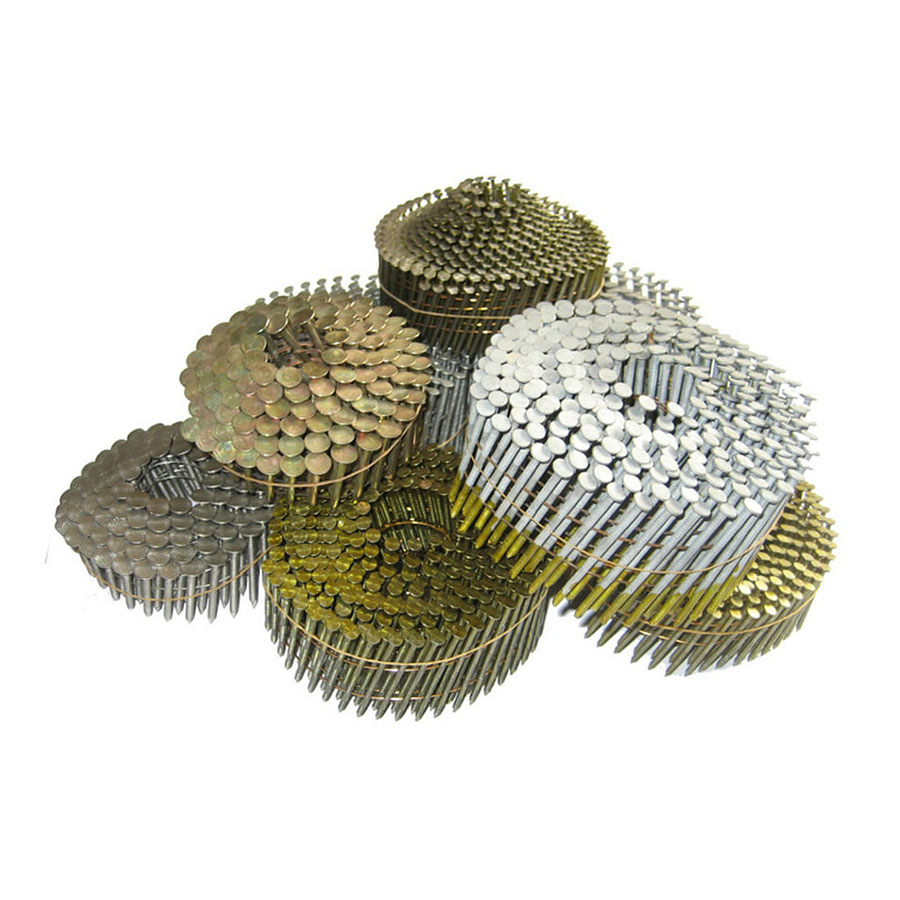

It uses 15-degree flat wire coil nails or 15-degree flat plastic sheet collated nails, with lengths ranging from 32mm to 65mm.

What is the recommended air pressure for operation?

The tool operates optimally between 70-120 psi (5-8.3 bar), depending on the hardness of the material and nail size.

Is this tool suitable for high-volume production?

Yes, with a rapid fire rate of 10 times per second and a load capacity of up to 300 nails, it is designed for efficiency in industrial environments.

How does the tool prevent damage to the workpiece?

The CN565X features a soft rubber foot that cushions the contact point, specifically designed to prevent marring or damaging softer wood surfaces.

What are the key safety and convenience features?

It includes an adjustable exhaust to direct air away from the operator and a lightweight aluminum body to reduce user fatigue during extended use.
