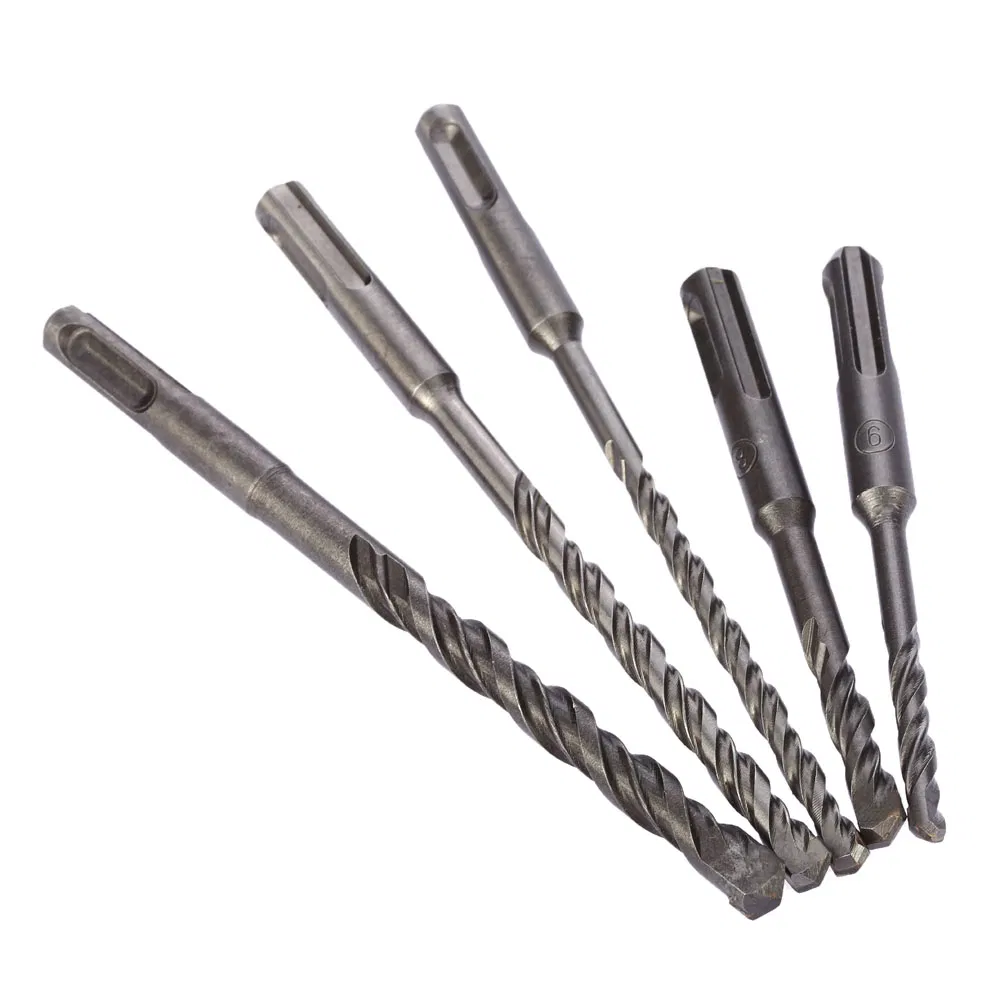

SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
1 / 5
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm
SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm

SDS Plus Tungsten Carbide Tipped Hammer Drill Bit Straight Tipped for Concrete Sandblasted 5-32mm

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
5-32mm
Length
110-1000mm
Type
Twist Drill Bit
Material
Tungsten Carbide
Usage
Masonry Drilling
Tipped
Straight Tipped
Surface
Sandblasted
Body Material
40cr
Tipped Material
Tungsten Carbide Tipped YG8C
HS Code
8207509000
Capacity
200,000 pieces/Month
Package Size
33.0cm * 33.0cm * 15.0cm
Product Description
⚙️Body Material: 40Cr
💎Tipped: Tungsten Carbide Tipped
🛠️Process: Milled
✨Surface: Sandblasted
🔗Shank: SDS Plus
🌪️Flute: Single, Double, Sander
📐Angle: 130 Degree
➕Tipped Type: Cross

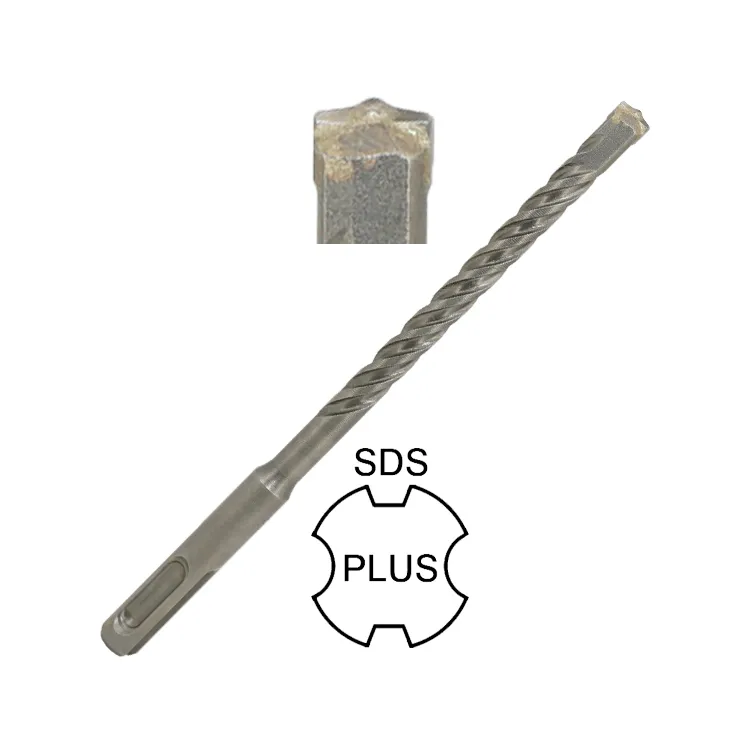

SDS Plus Hammer Drill Bit

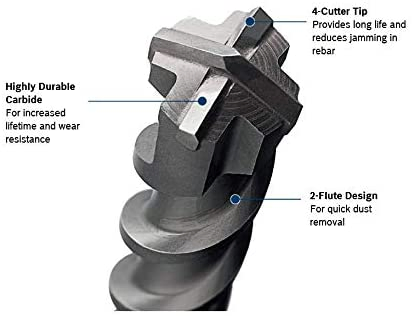

Drill Bit Features & Capabilities
ApplicationExtremely robust fast drilling bit for SDS Plus systems
FinishBrazed carbide tip & shot blast finish
EfficiencyIdeal for efficient drilling in concrete, granite, brick etc.
Available Sizes

Other sizes can be customized according to your specific requirements.

Diameter x Overall Length Working Length Diameter x Overall Length Working Length
4.0 x 110mm45mm13.0 x 160mm80mm
4.0 x 160mm95mm13.0 x 210mm130mm
5.0 x 110mm45mm13.0 x 260mm180mm
6.0 x 160mm97mm14.0 x 160mm80mm
8.0 x 210mm147mm16.0 x 460mm380mm
10.0 x 460mm397mm20.0 x 600mm520mm
12.0 x 1000mm920mm30.0 x 460mm380mm
Application & Packaging

Suitable Materials:

  • Concrete
  • Hard Aggregate
  • Granite & Marble

Package Options:

1. Normal Package: 5/10pcs in PVC bag, then inner box and carton.

2. Others: Blister card, PVC pouch, Plastic tube, Plastic holder, etc.

Packaging

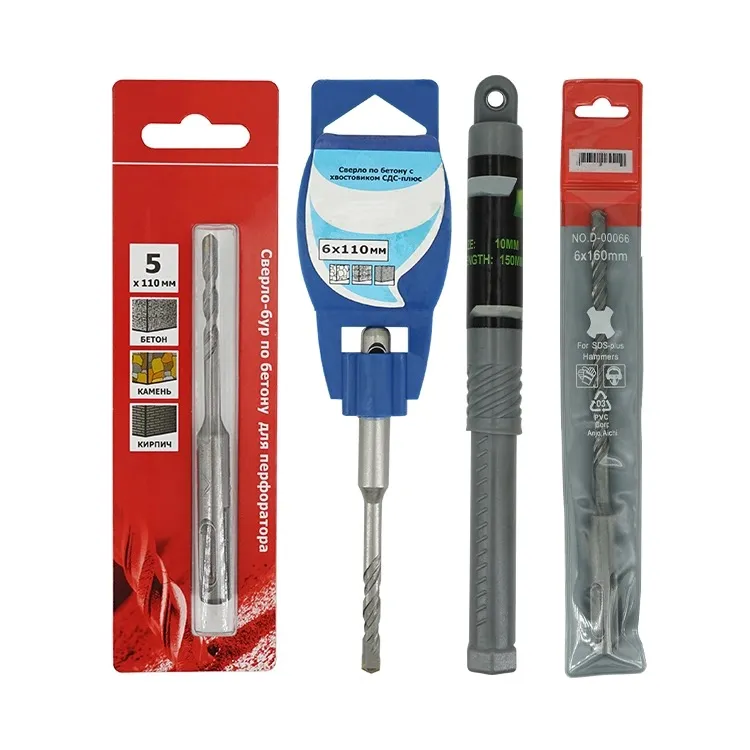

SDS Drill Bit Display
Payment & Delivery Terms
💳Payment: L/C, T/T, Western Union
🚢Lead Time: 20-30 Days after deposit (20%-30%)
Frequently Asked Questions
What materials are these SDS Plus drill bits suitable for?
These drill bits are designed for high-efficiency drilling in concrete, granite, brick, and hard aggregates.
What is the composition of the drill bit body and tip?
The body is made of high-quality 40Cr steel, and the tip is made of premium YG8C Tungsten Carbide for maximum durability.
Can I request a custom size not listed in the table?
Yes, we provide customization services for various lengths and diameters based on your specific requirements.
What are the available flute designs?
We offer Single, Double, and Sander flute designs to facilitate optimal dust removal and drilling speed.
What is the standard delivery timeframe for an order?
The typical production and delivery cycle is between 20 to 30 days after the initial deposit is confirmed.
What kind of surface finish is applied to these bits?
The bits feature a sandblasted finish for improved corrosion resistance and a professional appearance.
