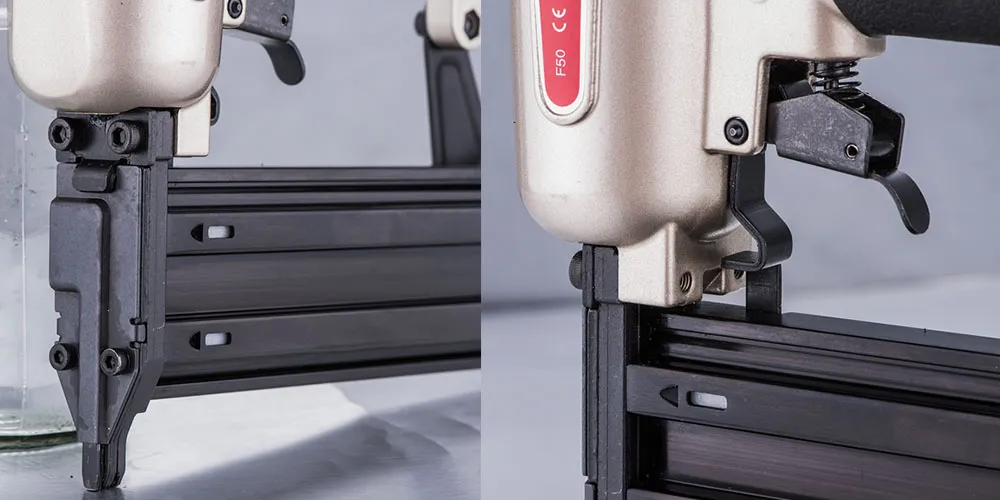

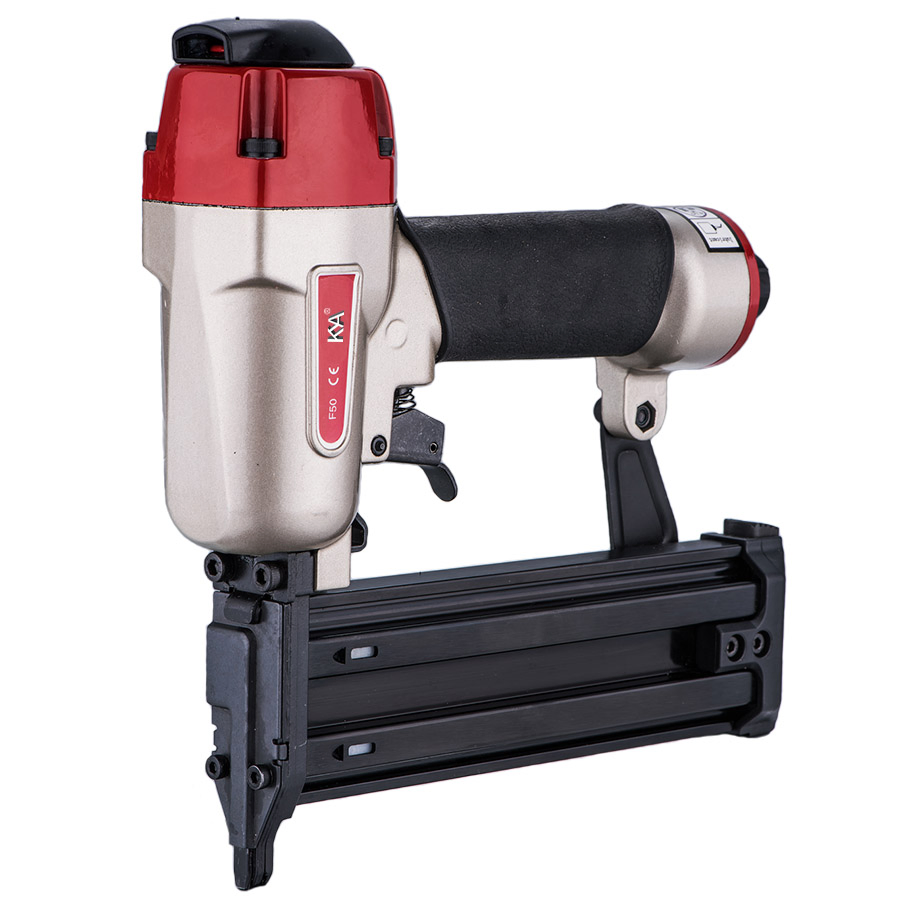

The 18 Gauge Pneumatic 2 in Brad Nailer F50 is ideal for a wide variety of finish applications. Designed with an aluminum body, it offers both strength and lightweight handling. The quick-release cam-lock opens the nail guide assembly to easily clear jammed nails, significantly minimizing downtime.
| Technical Data | |
|---|---|
| Model | 18 Gauge Pneumatic 2 in Brad Nailer F50 |
| Body Material | Aluminum Body |
| Operate Pressure | 60-100psi (4-7bar) |
| Load Capacity | 100 nails |

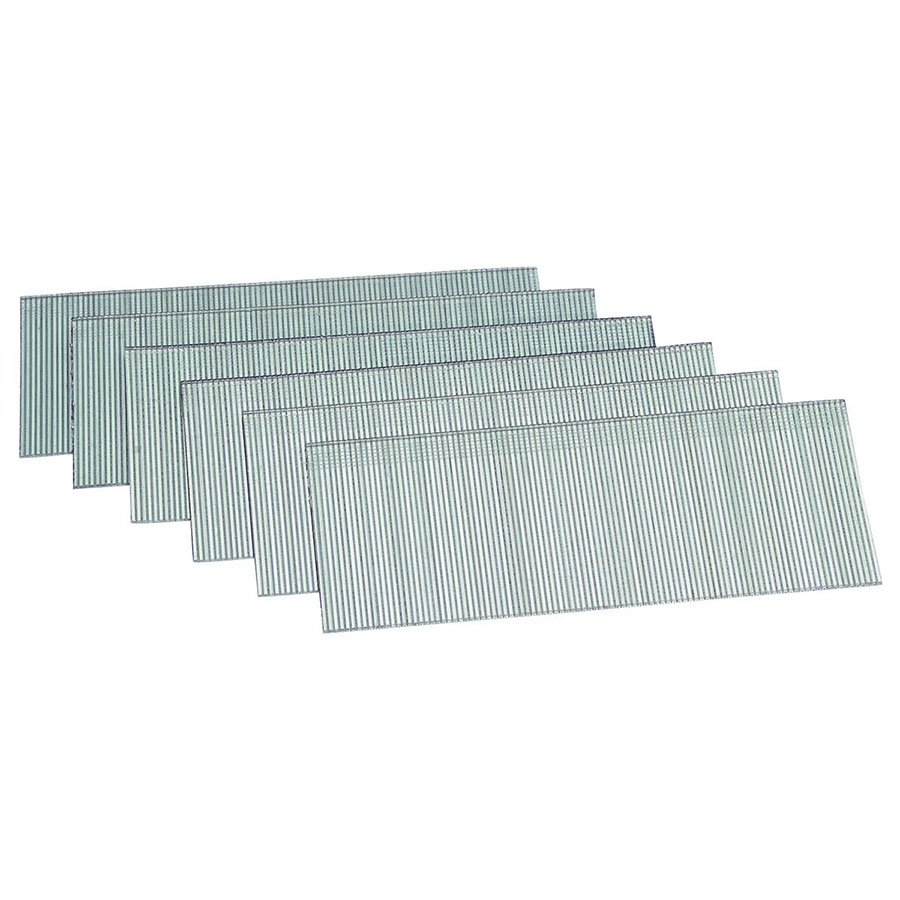

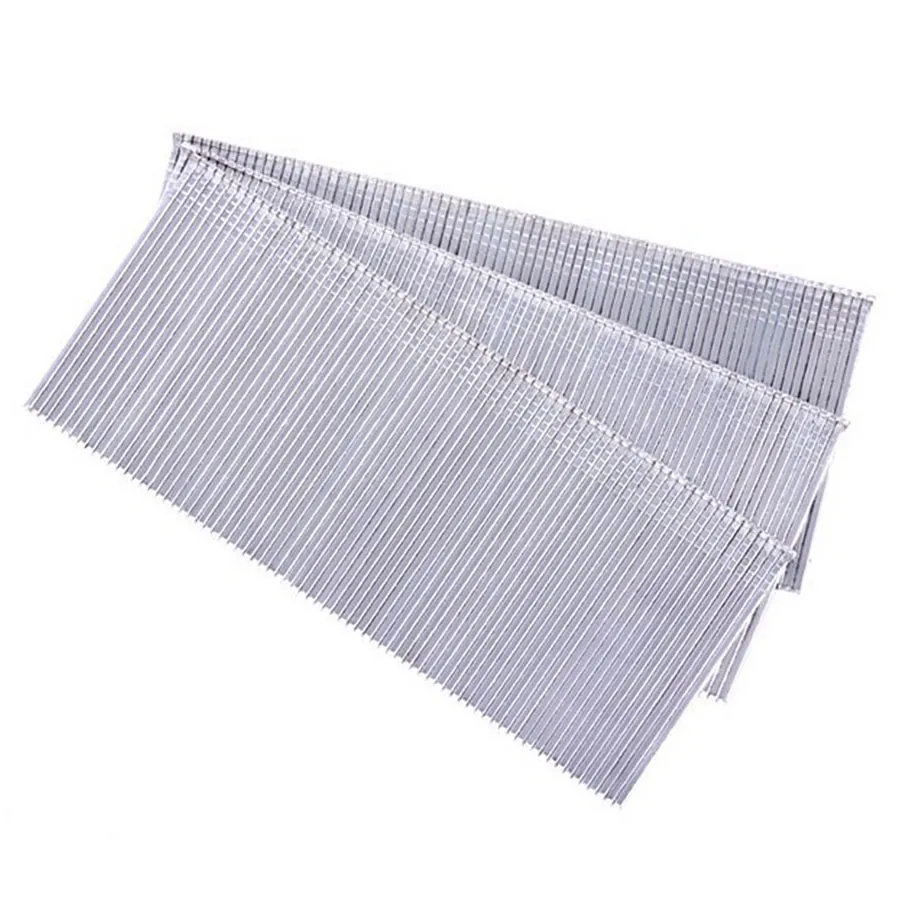

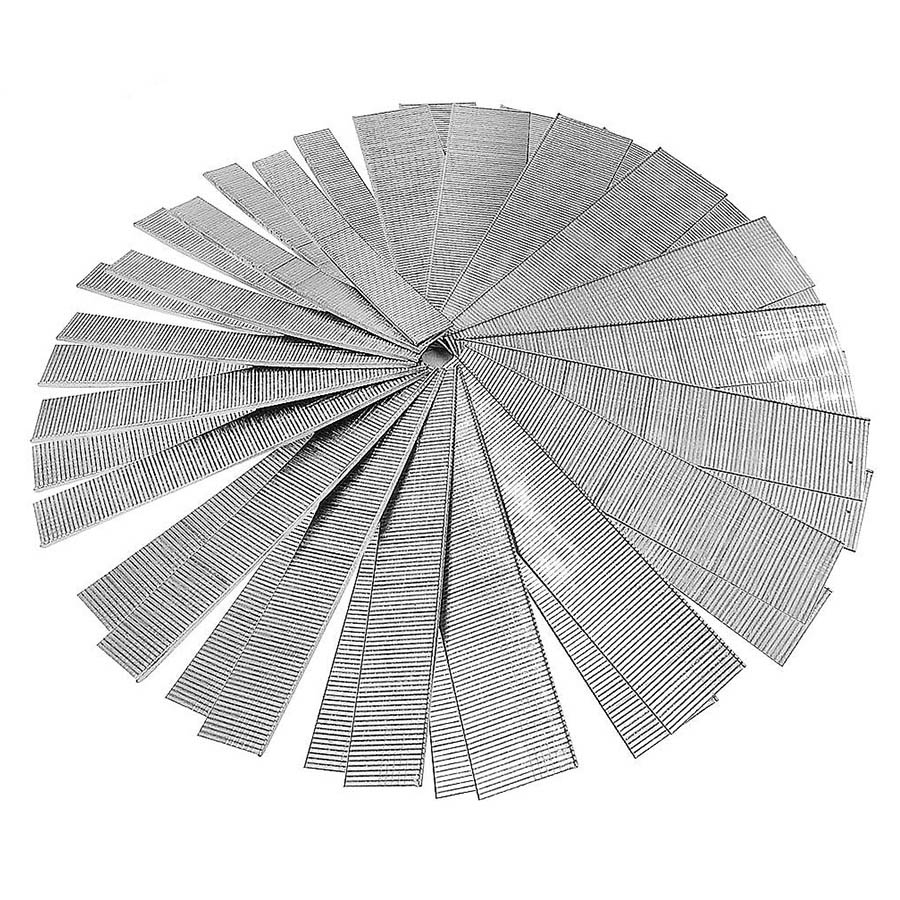

| Nails Type | 18 Gauge F Brad Nails |
| Nails Shank Diameter | 1.05mm |
| Nails Length | 5/8"(15mm) ~ 2"(50mm) |
| Symptom | Possible Problems | Solutions |
|---|---|---|
| Air leak in cylinder cap | Loose head valve piston seal or damaged o-rings | Check and replace head valve piston set or gasket |
| Air leak in Trigger area | Damaged o-ring in trigger valve or dirt accumulation | Check, clean or replace trigger valve o-rings |
| Tool jams frequently | Damaged or worn driver unit or guide nose | Check and replace driver (piston unit) or guide nose |
| Work weakly/sluggishly | Inadequate lubrication or worn piston o-ring | Apply oil drops to o-rings or replace piston o-ring |
| Nail cannot be shot | Driver unit can't return or damaged pusher spring | Check magazine matching and replace compression spring |
