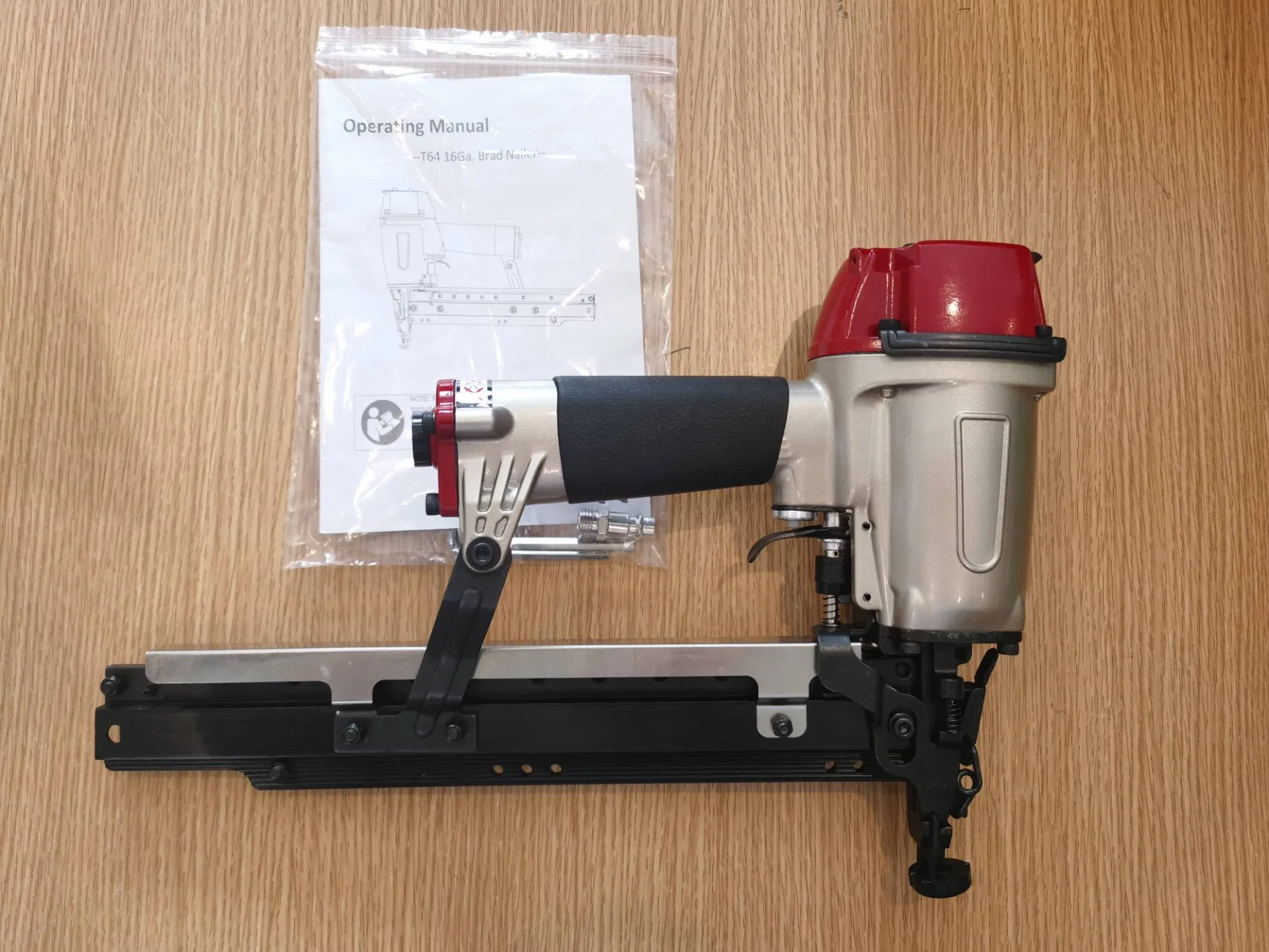

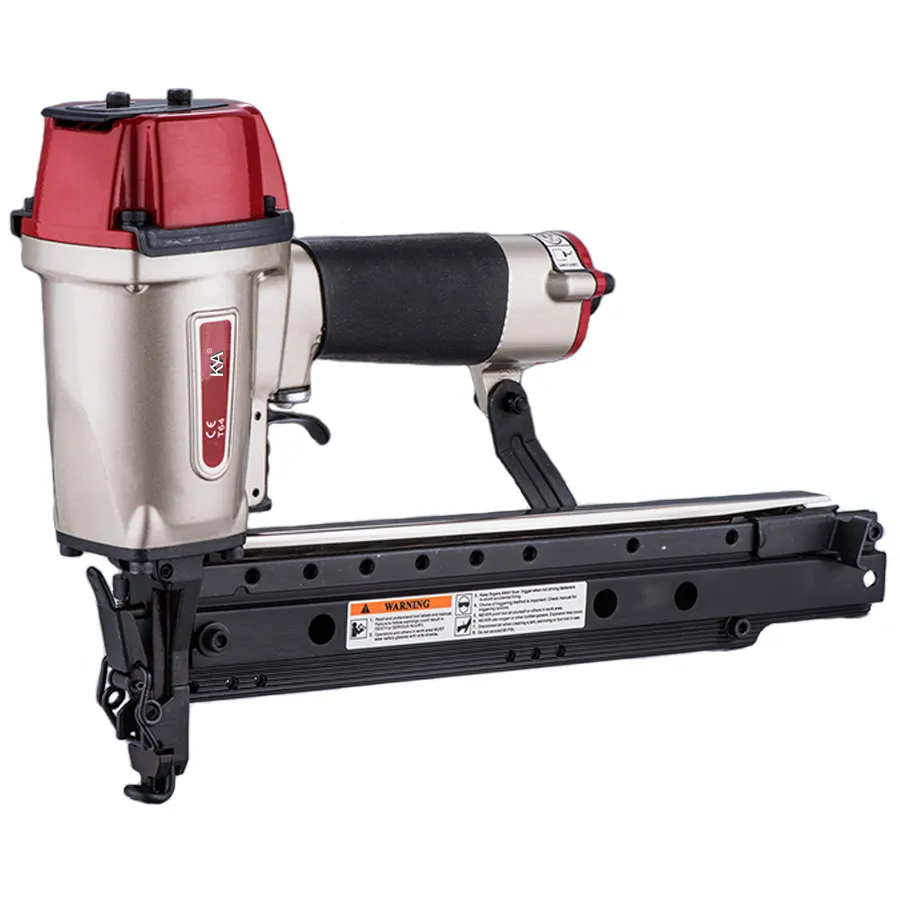

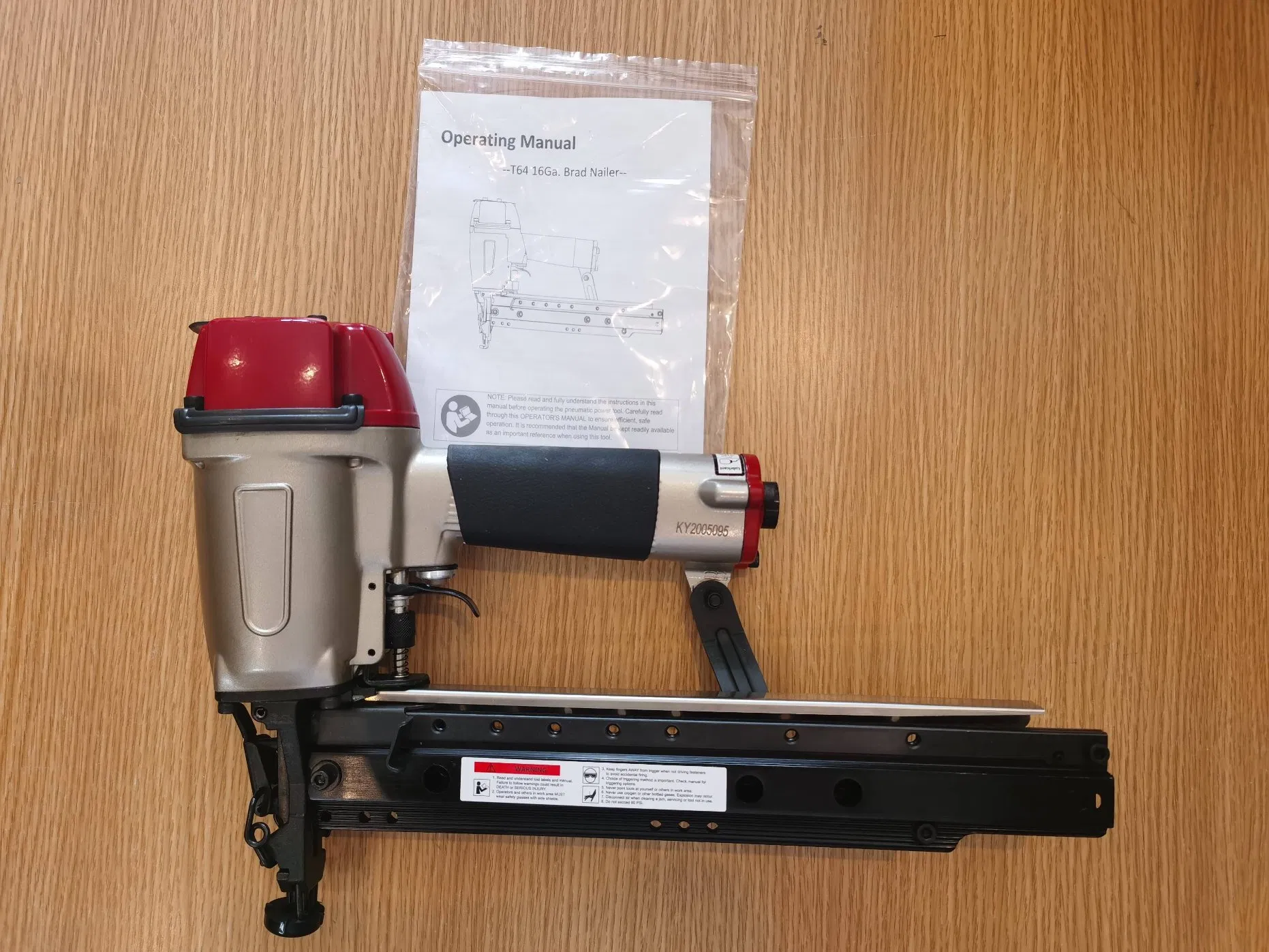

T64 Pneumatic Brad Nailer for Finish Nail

1 / 5

T64 Pneumatic Brad Nailer for Finish Nail

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	T64
Type	Finish Nail Gun
Tool Dimensions	372mm X 76mm X 254mm
Load Capacity	150 Nails
Operating Pressure	70-120psi (5-8.3bar)
Working Style	Pneumatic
Degree of Automation	Semi-automatic
Production Capacity	1000PCS/Month

Product Description

🎯

Tool-free selectable trigger for easy operation.

✋

Rubber hand grip for added comfort during extended use.

⚙️

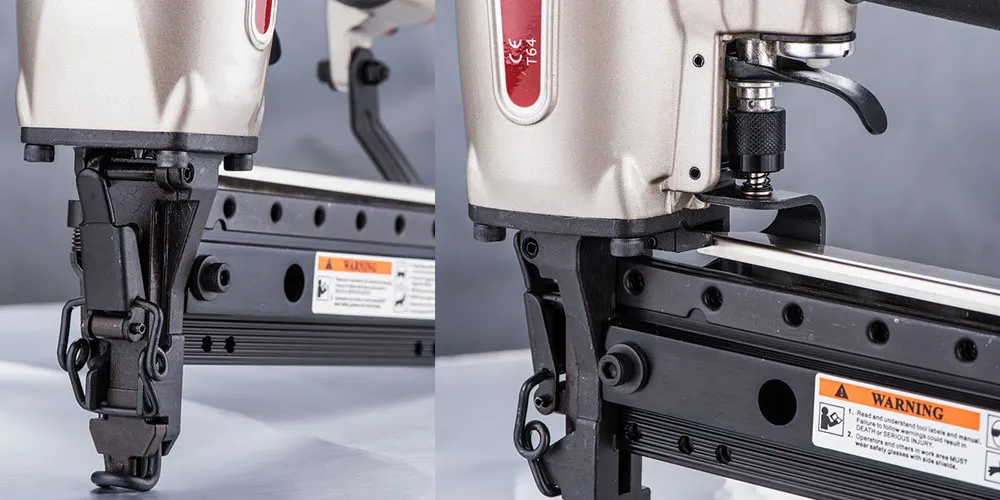

Quick-release nosepiece for fast clearing of jams.

🏗️

Heavy-duty lightweight aluminum body for durability.

💨

Adjustable exhaust port to direct particulates away.

📦

Compact design for portability and professional handling.

Technical Specifications

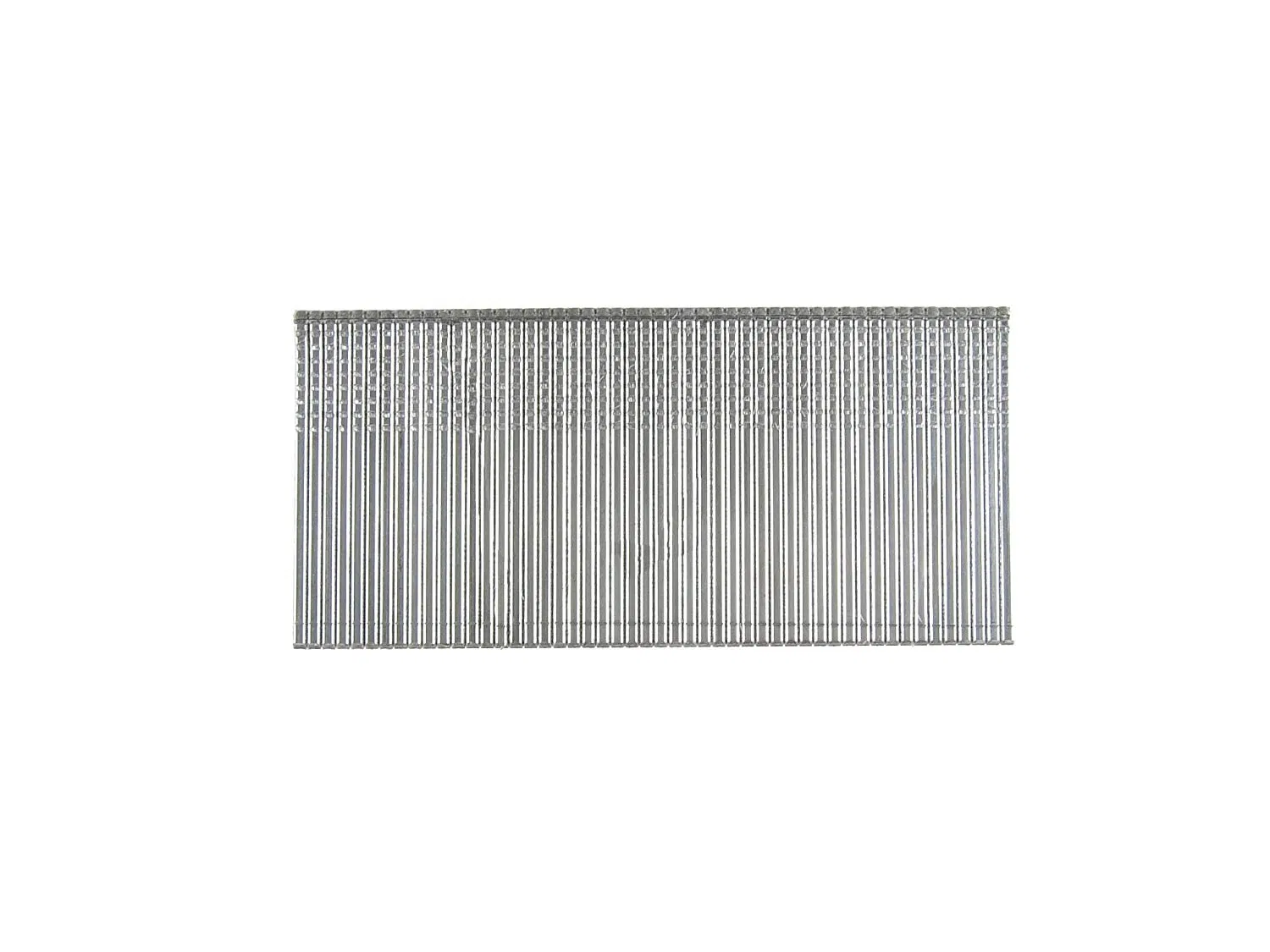

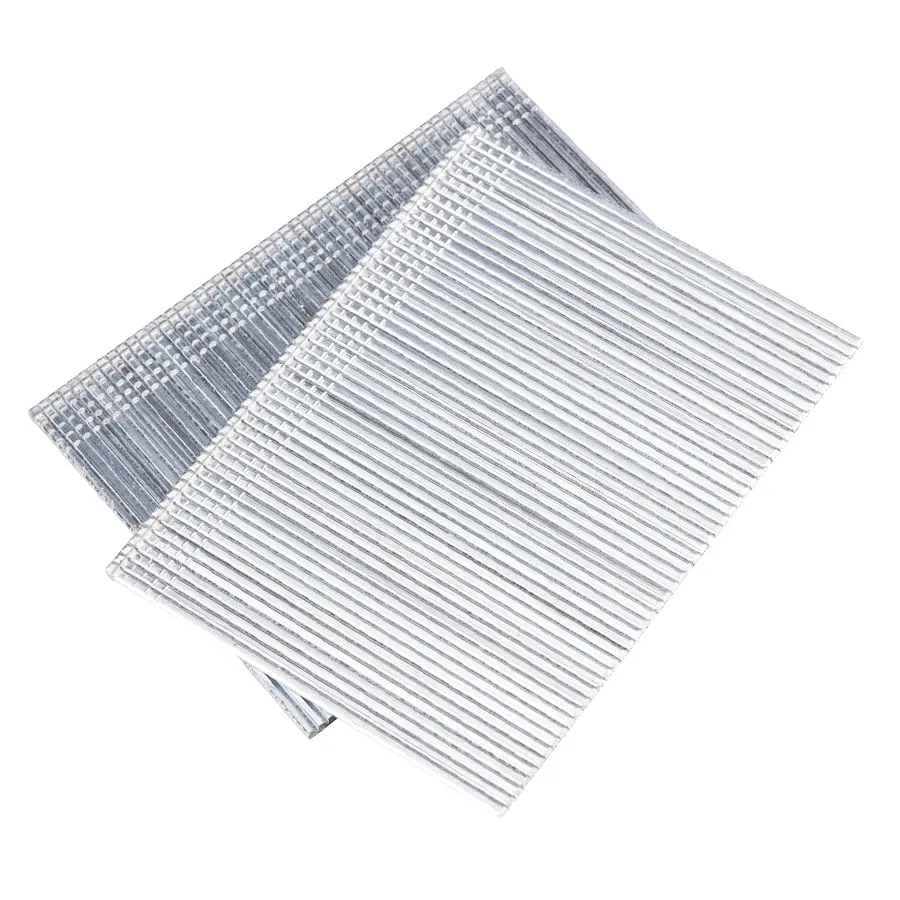

Nails Type	16 Gauge Straight Finish Nails
Nails Length	1"(25mm) ~ 2-1/2"(65mm)
Nails Head Diameter	0.110"(2.8mm)
Nails Shank Diameter	0.063" x 0.055" (1.6mm x 1.4mm)
Net Tool Weight	2.0kgs (4.40 lbs)
Body Material	Aluminum Body

Applications

Nailing as a finishing process for construction.
Securing the bottom of drawers and furniture components.
Making various cases, cabinets, and woodworking projects.

Packaging & Delivery

Standard Package: Neutral packing, kraft carton, or wooden pallet with related descriptions. Customized colorful packages are available upon request.

Frequently Asked Questions

Q1: What is the primary application for the T64 pneumatic nailer? A: It is specifically designed for finish nailing in construction, cabinet making, and securing furniture components like drawer bottoms.

Q2: What type of nails does this tool use? A: It uses 16 Gauge straight finish nails with lengths ranging from 1 inch (25mm) to 2-1/2 inches (65mm).

Q3: What is the recommended operating air pressure? A: The tool operates efficiently between 70-120 psi (5-8.3 bar).

Q4: How does the tool handle nail jams? A: The T64 features a quick-release nosepiece that allows for fast and easy clearing of any accidental nail jams.

Q5: Is the tool suitable for heavy industrial use? A: Yes, it features a heavy-duty lightweight aluminum body designed for durability in professional and industrial environments.

Q6: What are the packaging options for bulk orders? A: Standard packaging includes 4 pieces per carton. We offer neutral kraft cartons or wooden pallets, and can provide customized colorful packaging based on requirements.
