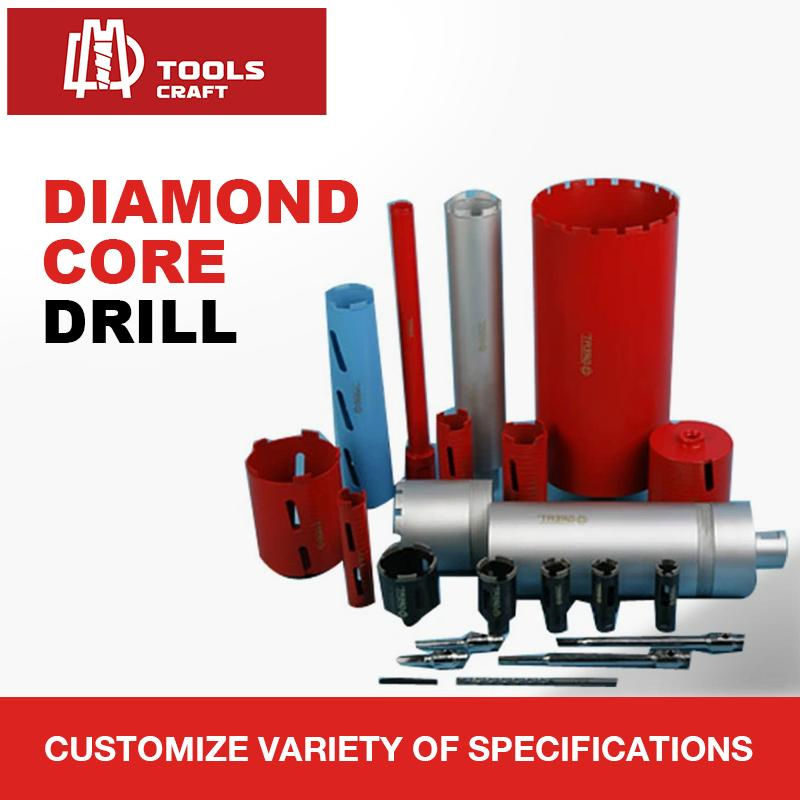

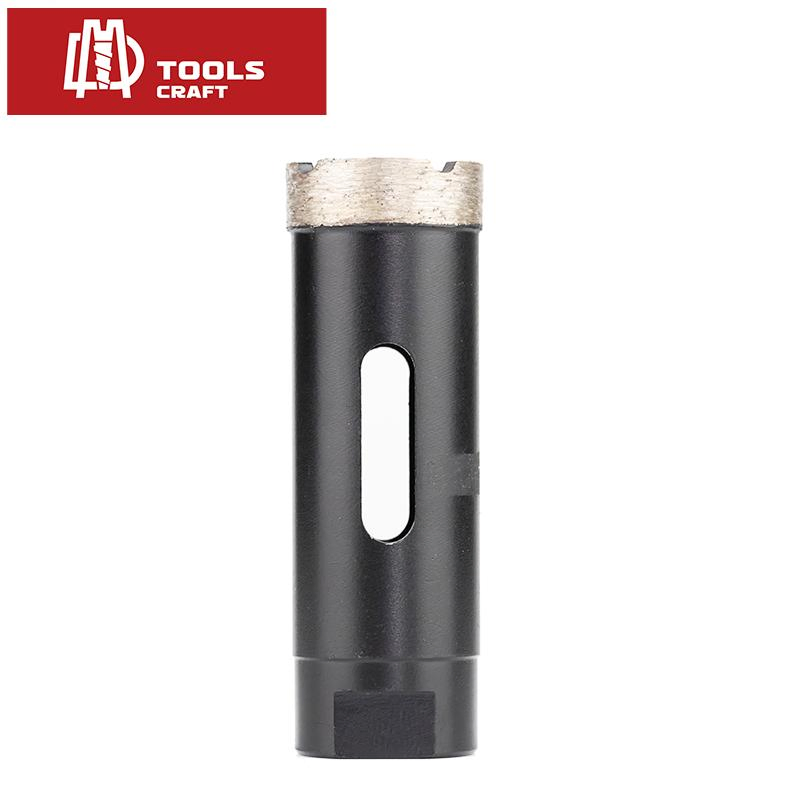

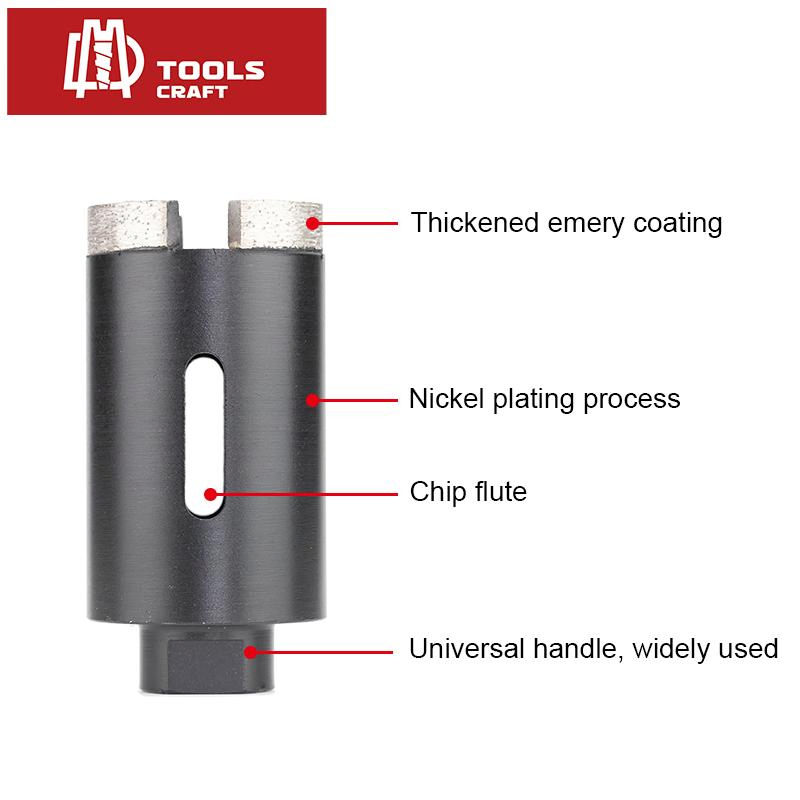

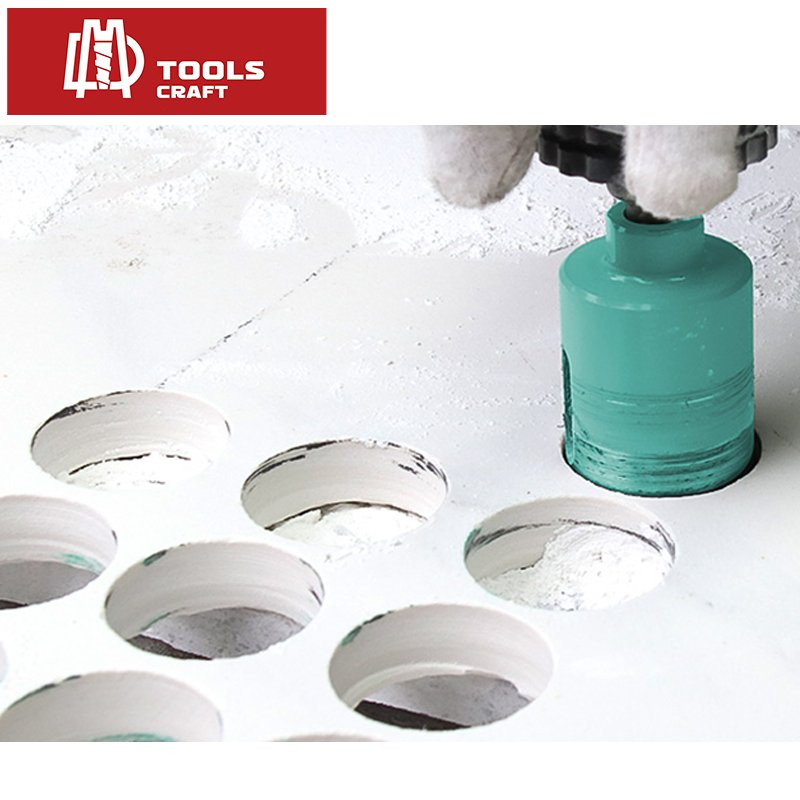

Diamond Tip Core Drill Bit for Reinforced Concrete

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.:15DN0101002
Type:Core Drill Bit
Material:Diamond
Diameter:27-250mm
Length:120/160/370/450
Seg.Thickness:3.8/4.0/4.5mm
Welding Tech:Laser/Silver Welding
Seg.Height:8/10mm
Thread:5/8"-11, 1 1/4"-7
Feature:Sharpness, Smooth Cutting
Capacity:80000PC Per Month

Product Overview

1) Direct manufacturer with extensive export experience worldwide (USA, Europe, Middle East, Africa, South America, etc.).

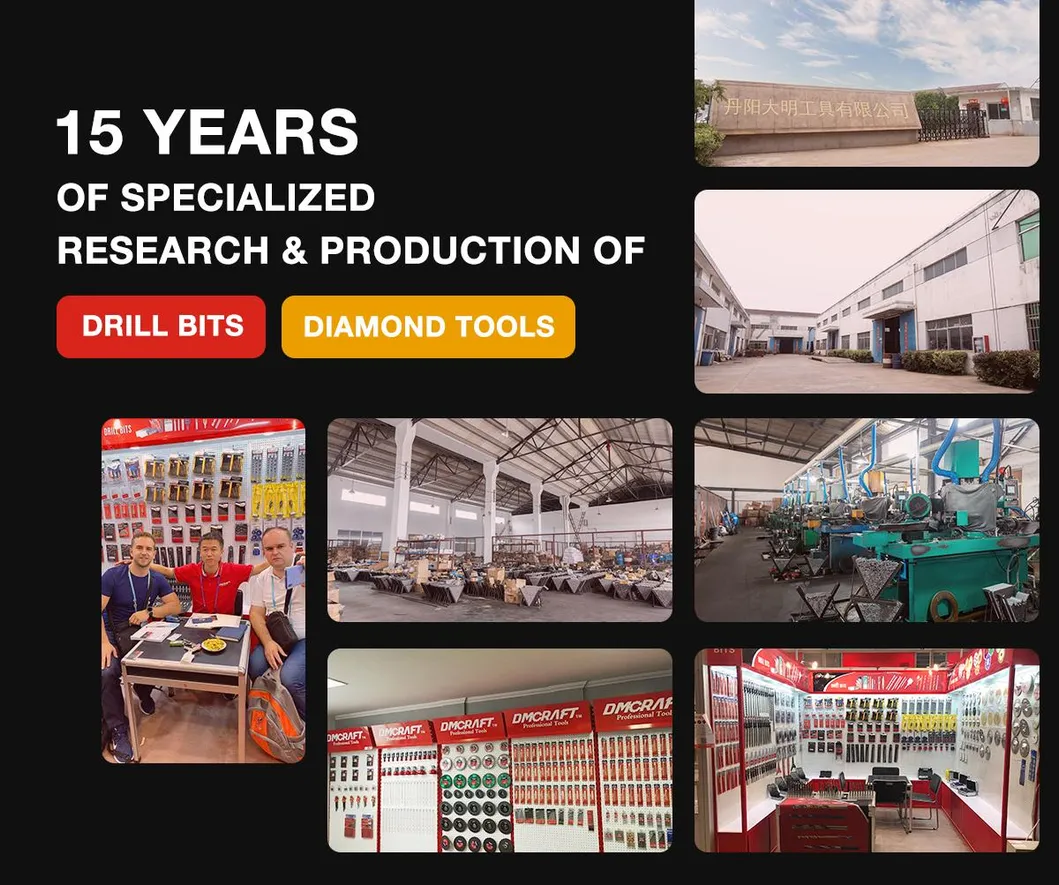

2) Around 15 years of professional producing experience.

3) Diverse drill product range: HSS drill bits, masonry drills, SDS drills, glass & tile drills, step drills, wood flat drills, and diamond core bits.

4) High reliability with over 95% of customers placing formal orders after sample testing.

Diamond Tip Core Drill Bit
Product Catalogs
PRODUCT CATALOGS
HSS Twist Drill Bits Glass and Tile Drill Bits
Masonry Drill Bits HSS Center Drill Bits
SDS Drill Bits ( Hammer Drill ) Diamond Saw Blade
HSS Step Drill Diamond Cup Wheel
Wood Drill Bits Diamond Core Bits

Diamond Core Drill Features

Type: Laser welded diamond core drill bits for wet drilling reinforced concrete, 1-1/4"UNC connection thread, professional grade for brick walls and construction.

Features: Aggressive drilling with long working life, smooth balance, precision steel core tube, standard working length of 450mm.

Applications: Concrete, reinforced concrete, brick, block, and general building materials.

Machinery: Hydraulic drilling machines, electric drilling machines, portable drills, hand-held or stand core drills.

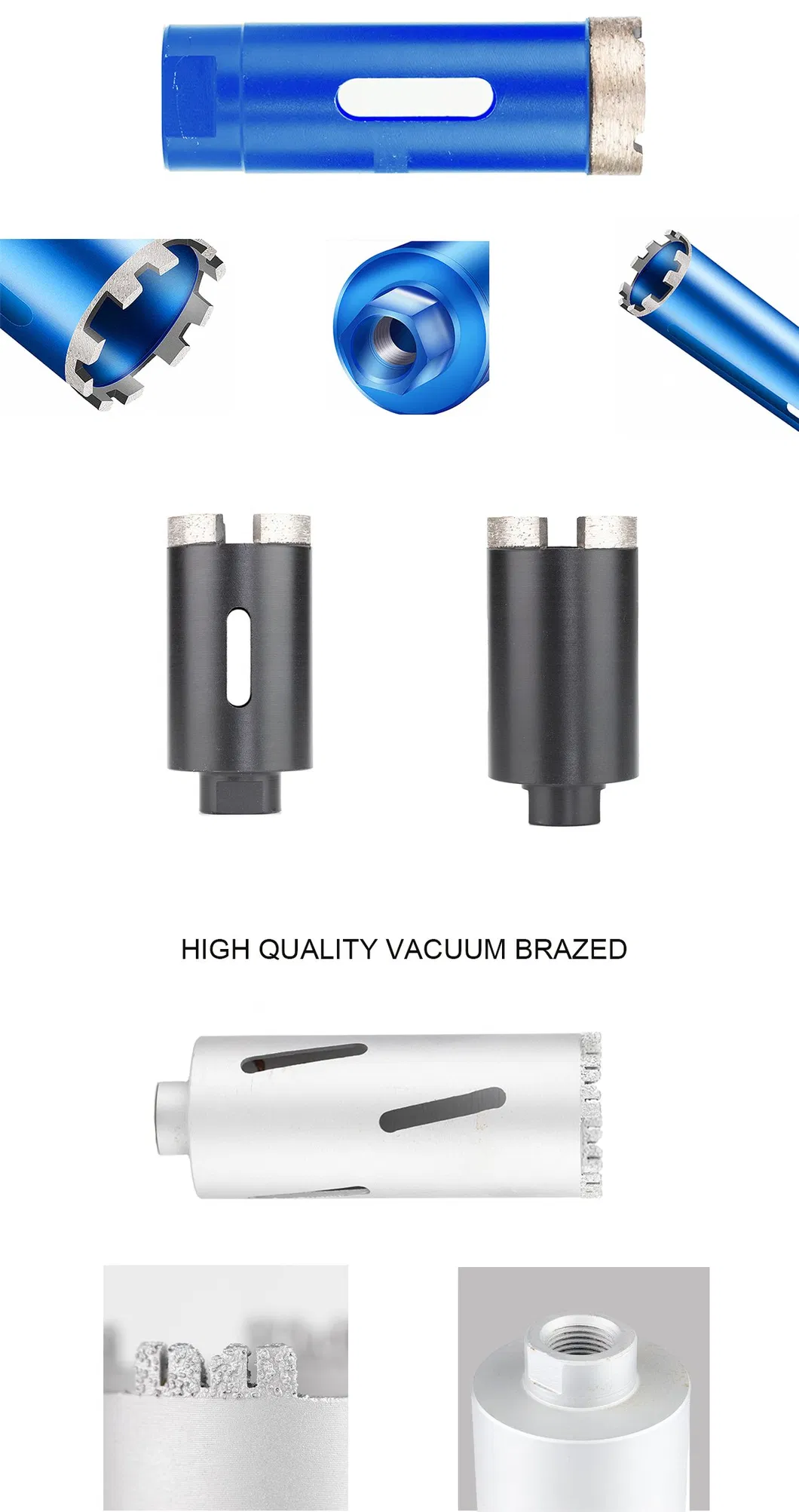

Detailed Core Bit
Item Number: 15DN0101 - Specification Table
Diameter (D) Max Coring Depth Overall Length Connecting Item Number
51mm (2")450mm500mm1-1/4"UNS15DN0101001
78mm (3")450mm500mm1-1/4"UNS15DN0101005
102mm (4")450mm500mm1-1/4"UNS15DN0101008
152mm (6")450mm500mm1-1/4"UNS15DN0101014
205mm (8")450mm500mm1-1/4"UNS15DN0101018
255mm (10")450mm500mm1-1/4"UNS15DN0101020

Package & Shipping

PACKAGE: Inner paper box or blister card and outer carton box, white box or pallet.

SHIPPING:

  • TNT/FedEx/DHL/UPS for samples or goods under 45KG (Door to Door).
  • By Air or Sea for batch goods (Port to Port).
  • Production Time: 3-7 days for samples; 2-3.5 weeks for batch orders.
Package Details
Shipping Preparation

Usage & Quality Control

Widely Used

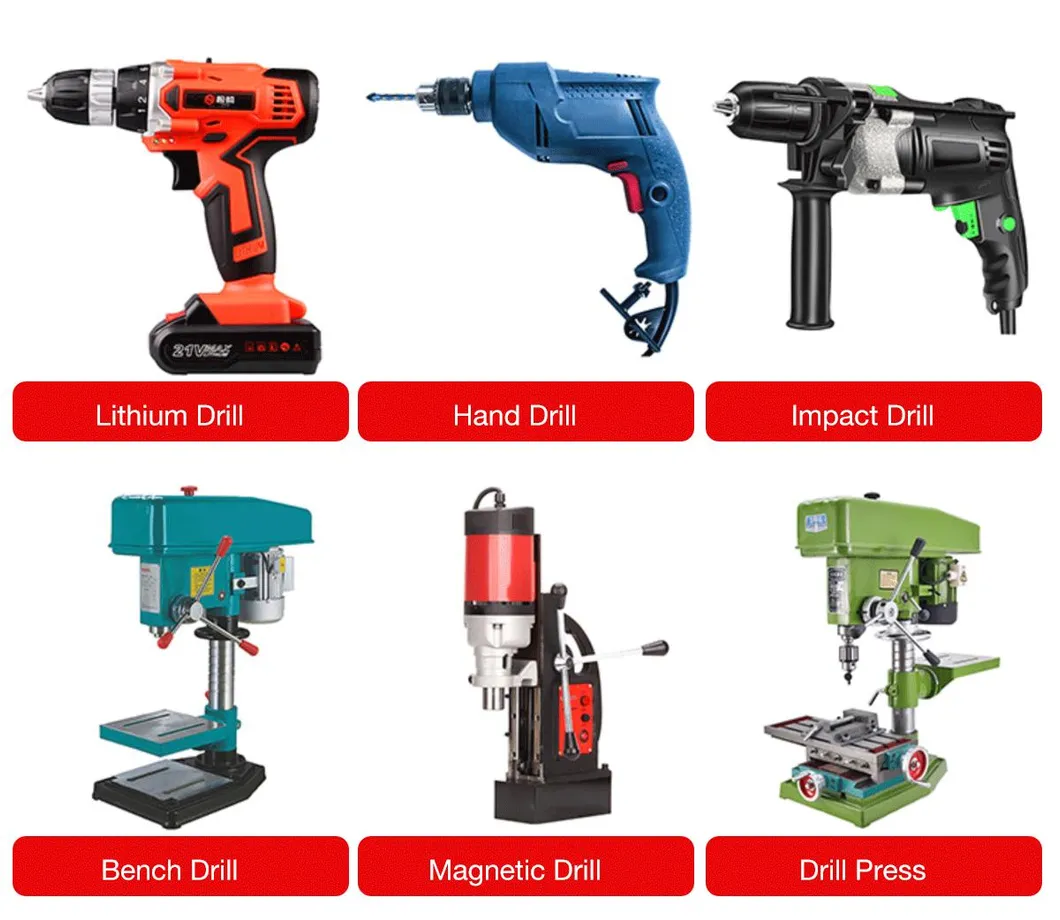

Application Scene
Certificate
Customer Feedback

Frequently Asked Questions

What materials are these diamond core bits suitable for?
These bits are specifically designed for high-performance wet cutting of reinforced concrete, bricks, granite, marble, stone, and cement.
What is the difference between laser and silver welding for core bits?
Laser welding provides a stronger bond between the segment and the steel core, making it ideal for heavy-duty professional projects, while silver welding is commonly used for standard applications.
Can I use these bits with a portable handheld drill?
Yes, these bits are compatible with hydraulic drilling machines, electric portable drills, and stand-mounted core drills depending on the connection thread used.
What is the typical lifespan or cutting capacity of the bit?
Our high professional quality bits are engineered for fast cutting and can reach a cutting depth of approximately 12-15 meters depending on the material hardness.
What is the lead time for a bulk order?
Standard production time for batch goods is typically 2 to 3.5 weeks, while sample orders can be prepared in 3 to 7 days.
