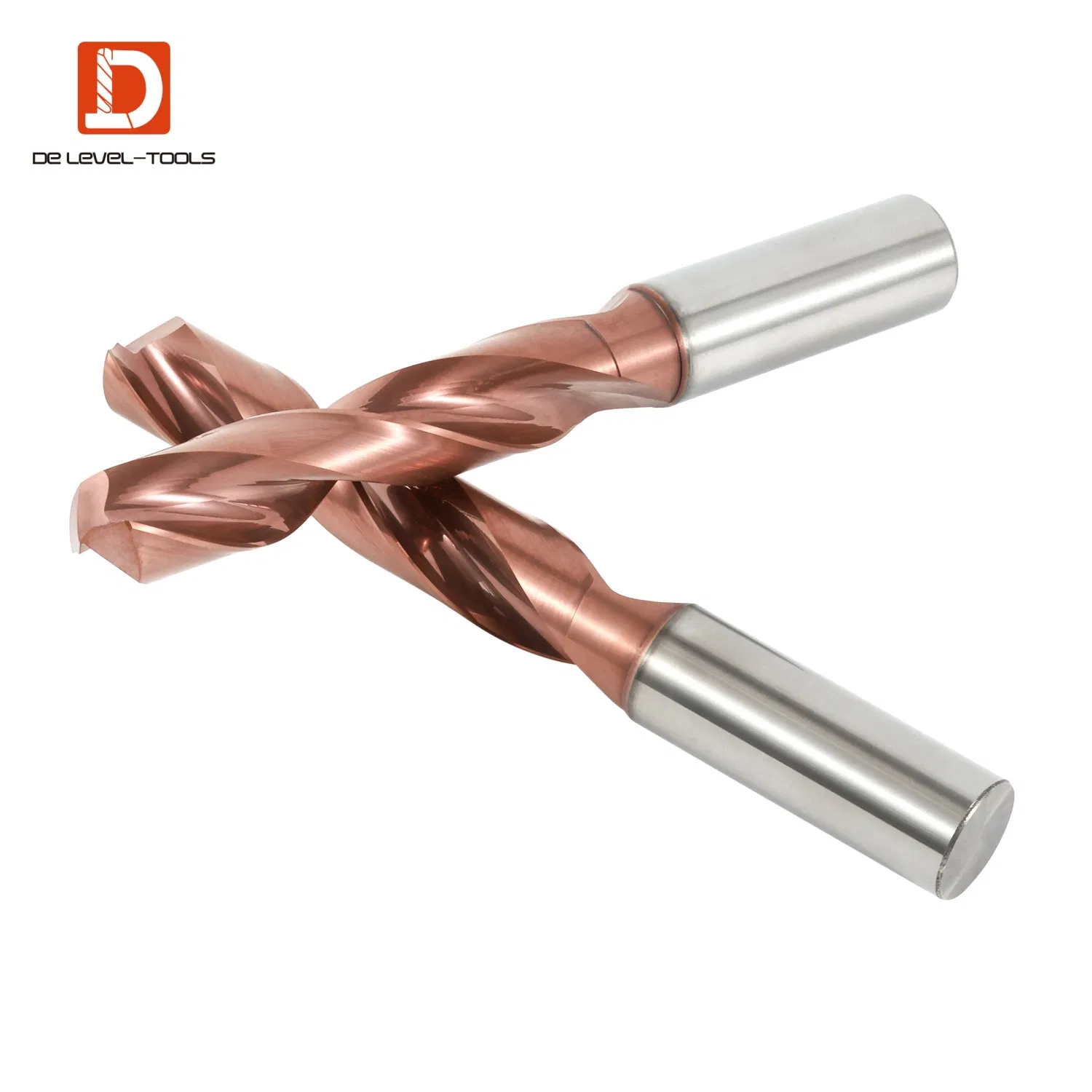

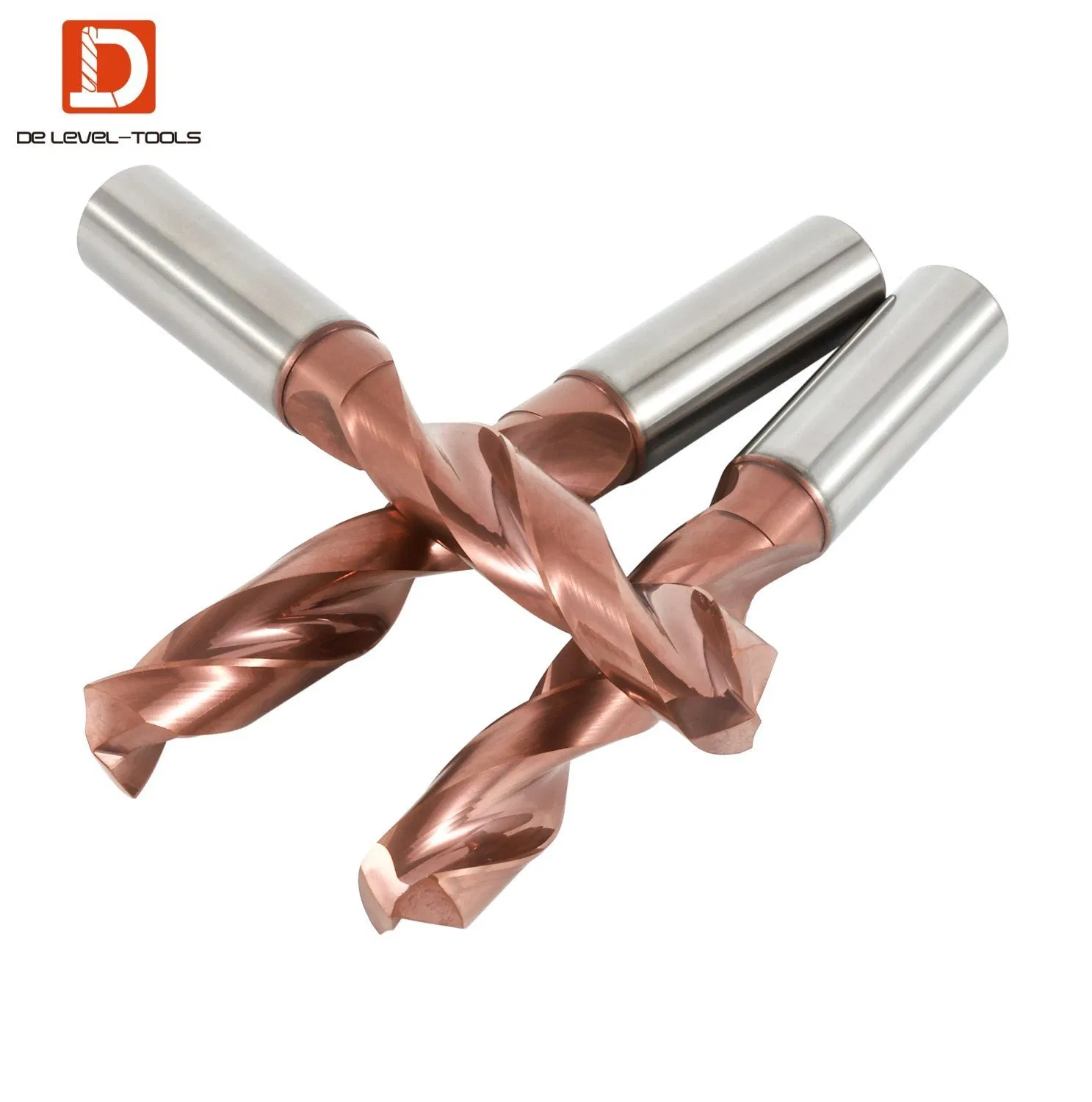

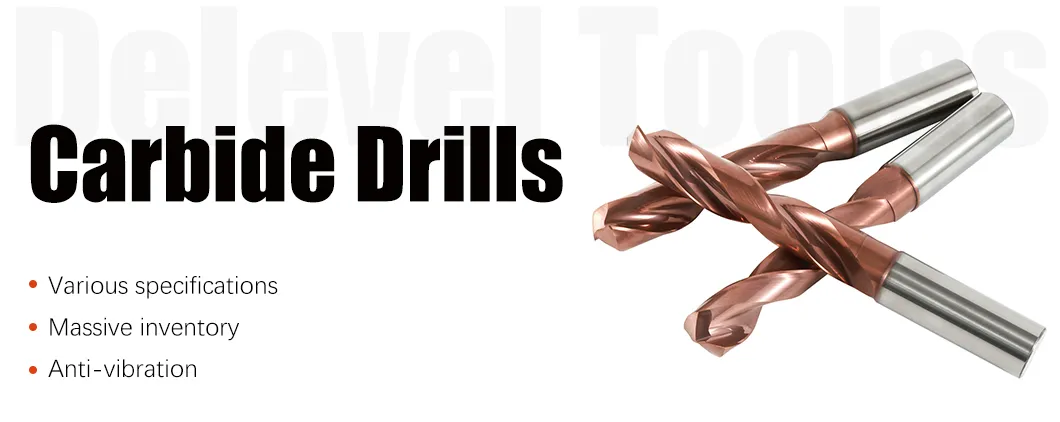

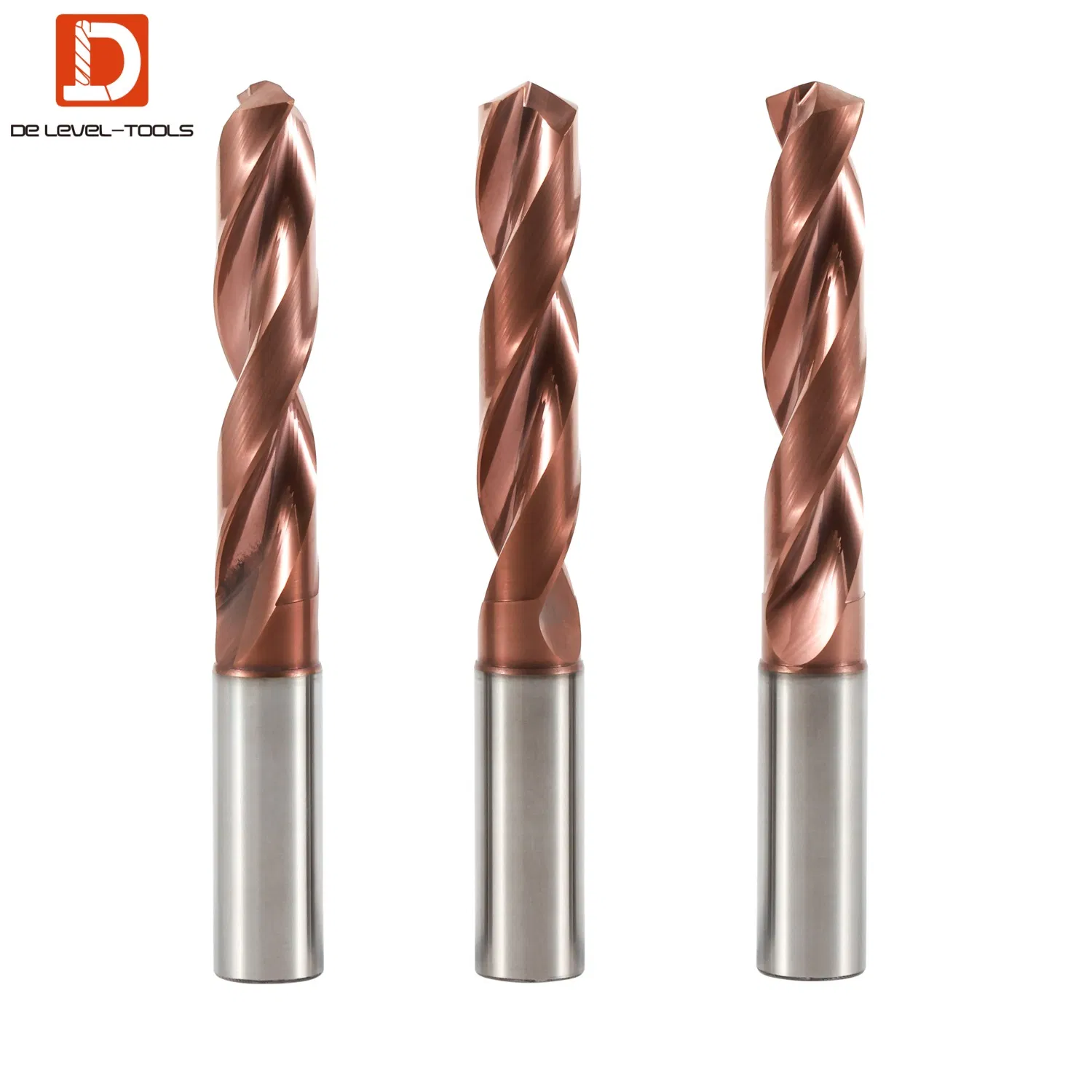

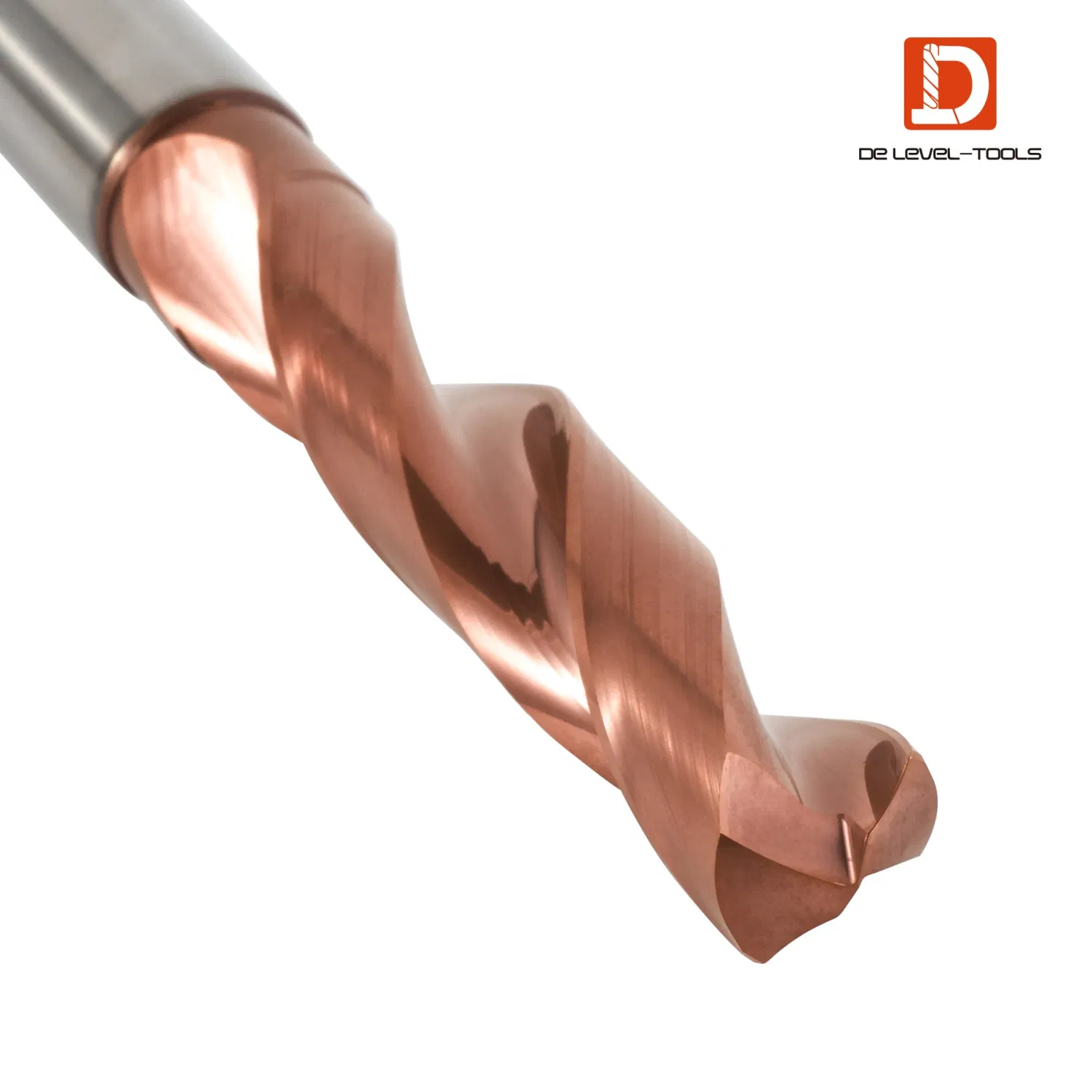

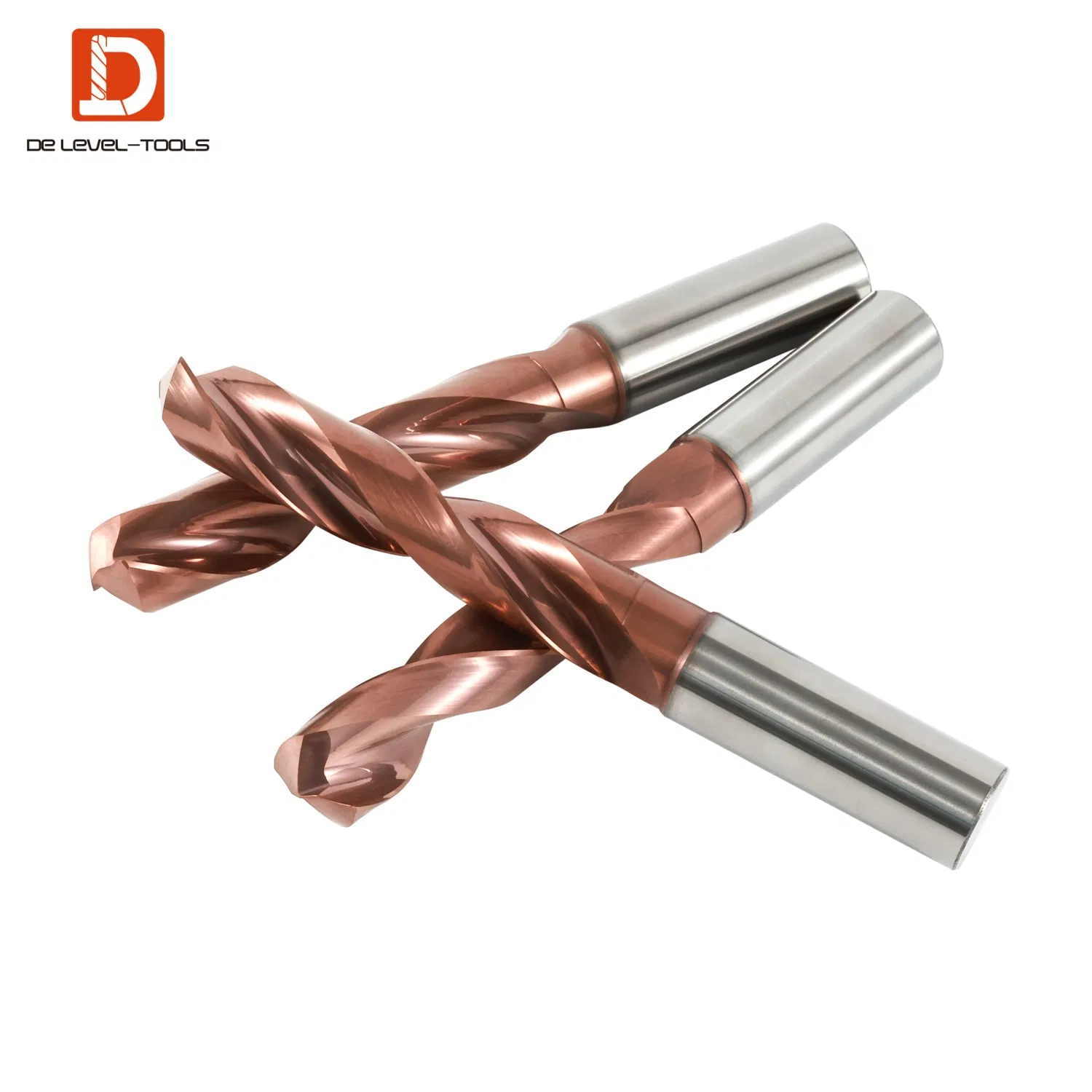

Carbide Drill Bit - Precision Micro Drilling
Our carbide drill bit is designed for high-precision drilling, offering exceptional performance in various machining applications. With a minimum customizable diameter of 0.08mm, it meets the most demanding micro-drilling requirements.

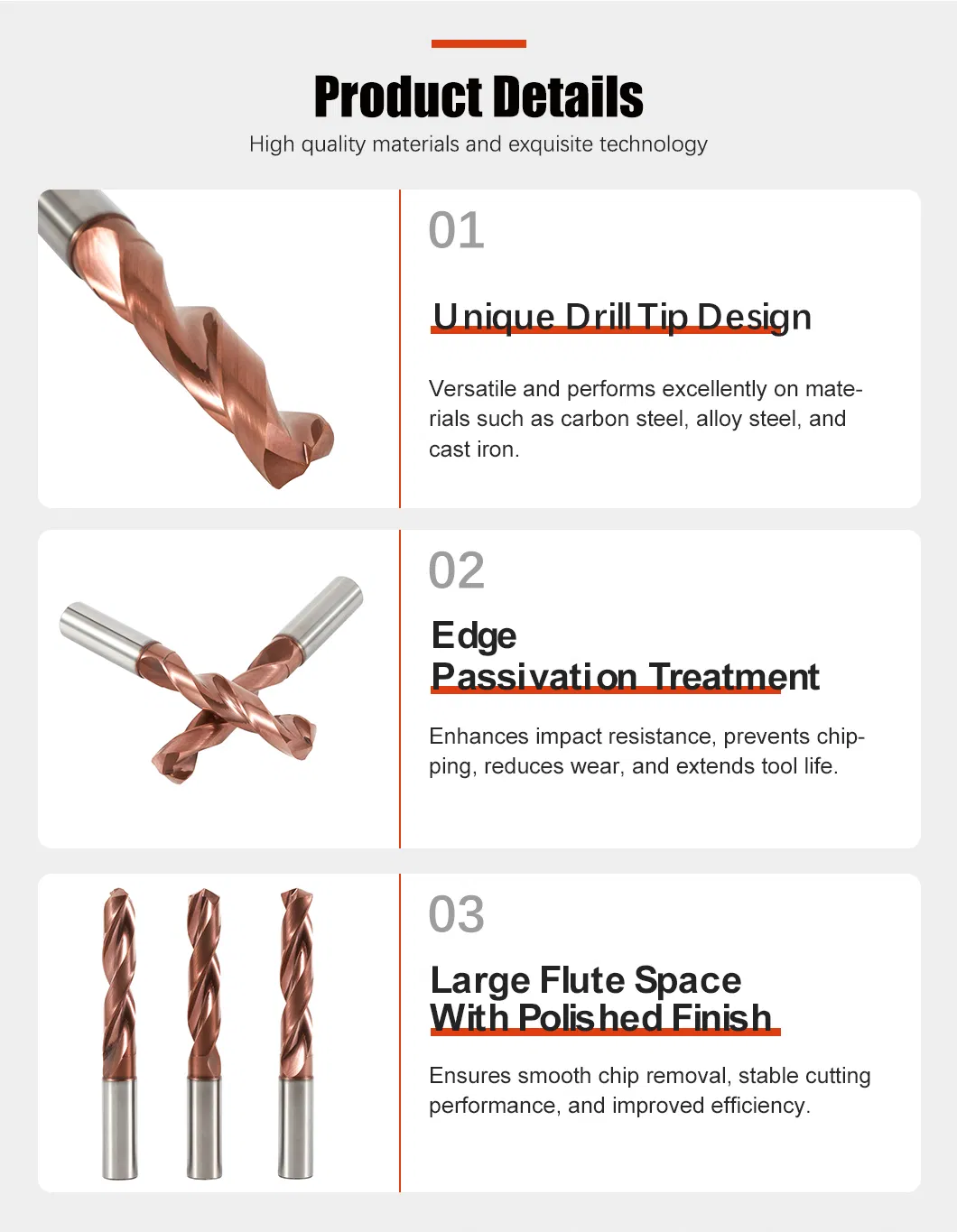

Optimized geometry ensures minimal deflection and precise hole positioning.
Made from premium carbide material for superior hardness and wear resistance.
Ideal for metals, composites, aerospace, electronics, and medical industries.
| Flute Diameter | Max. Cutting Depth | Shank Diameter | Overall Length |
|---|---|---|---|
| D3.00-D3.70 | 20 | 6 | 62 |
| D3.80-D4.70 | 24 | 6 | 66 |
| D4.80-D6.00 | 28 | 6 | 66 |
| D6.10-D7.00 | 34 | 8 | 79 |
| D7.10-D8.00 | 4 | 8 | 79 |
| D8.10-D10.0 | 47 | 10 | 89 |
| D10.1-D12.0 | 55 | 12 | 102 |
| D12.1-D14.0 | 60 | 14 | 107 |
| D14.1-D16.0 | 65 | 16 | 115 |
* Non-standard products are available according to customer's drawing or samples.
Super Raw Materials: We use 100% original tungsten (no recycle) for high precision and quality.
| Material Source | Grades | Origin |
|---|---|---|
| GESAC | GU20, GU20F, GU25UF | China |
| CB | WF25, K200, K100 | Taiwan |
| Guhring | K44UF, DK460UF | Germany |
| CERATIZIT | CTU08L, TSF22 | Luxembourg |
Advanced Coatings:
| Item | ALTiN | AlCr-based | TiSiN |
|---|---|---|---|
| Hardness (HV) | 3100-3400 | 3100-3500 | 3300-3700 |
| Thickness | 1-2.5μ | 1-3μ | 2-3μ |
| Oxidation Temp | 900-1000 | 900-1100 | 900-1000 |
As one of the professional manufacturers in solid carbide milling tools, we produce various alloy drills, reamers, and forming tools. Our materials are selected from high-quality domestic and imported rods, supported by world-class tool grinding machines and CNC technology.
