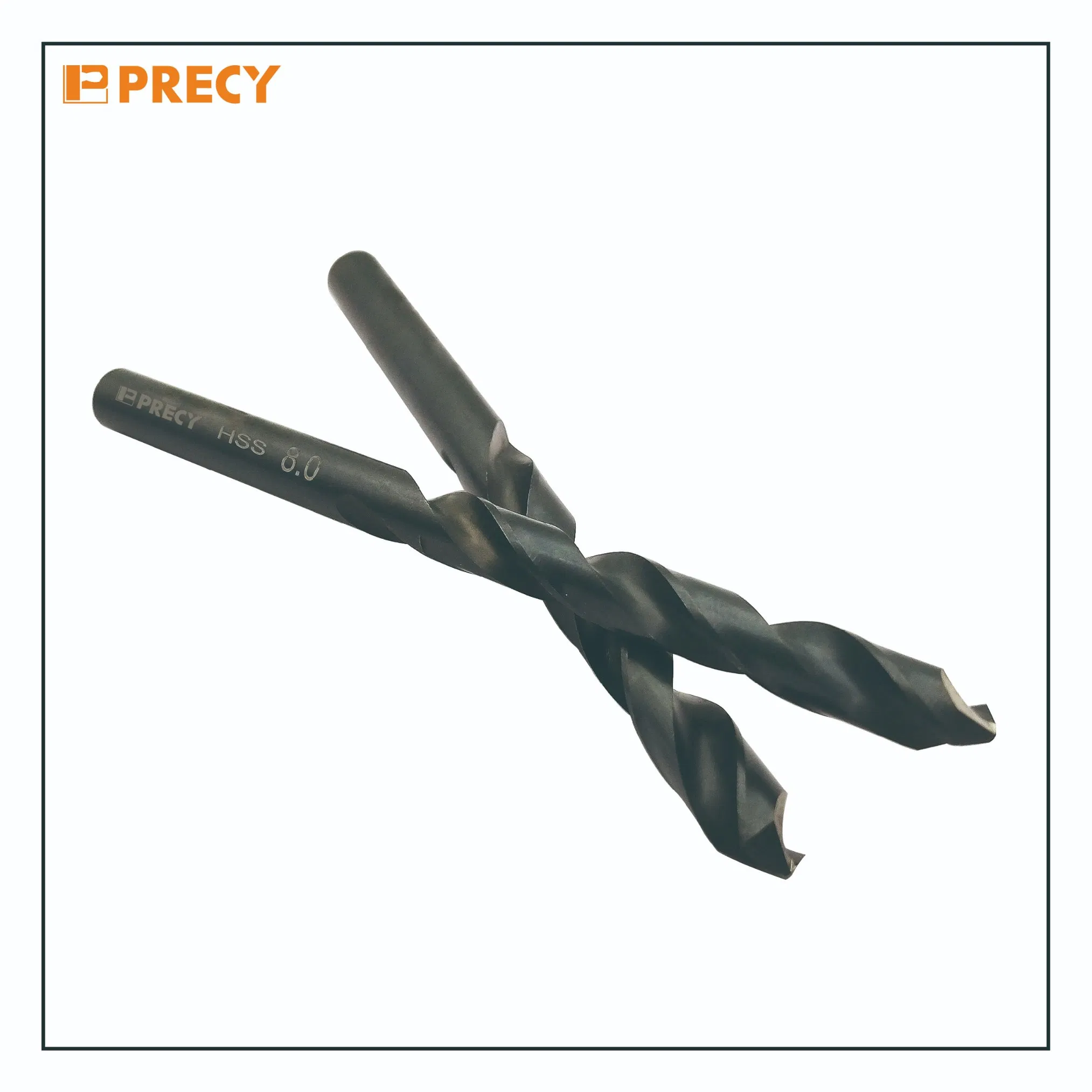

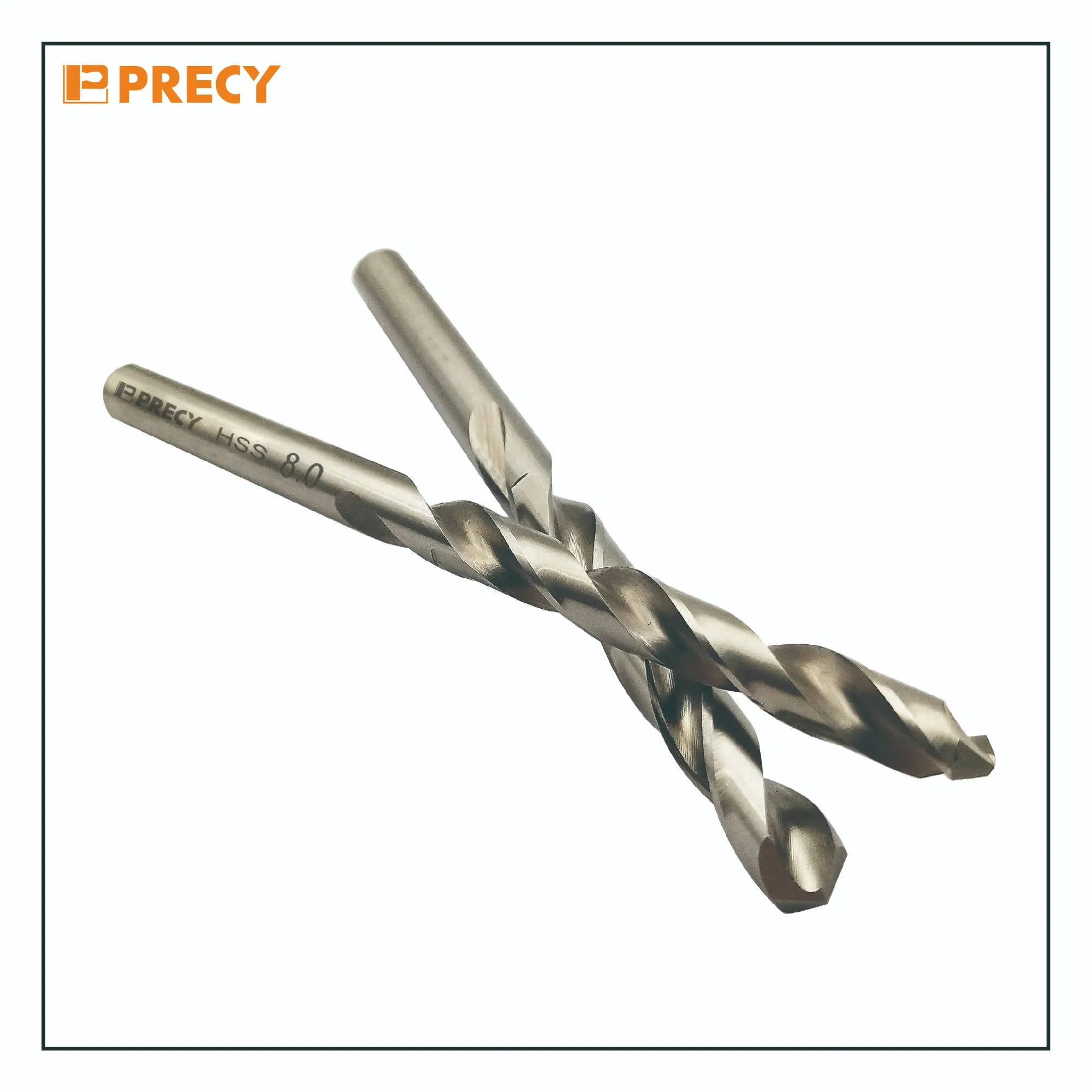

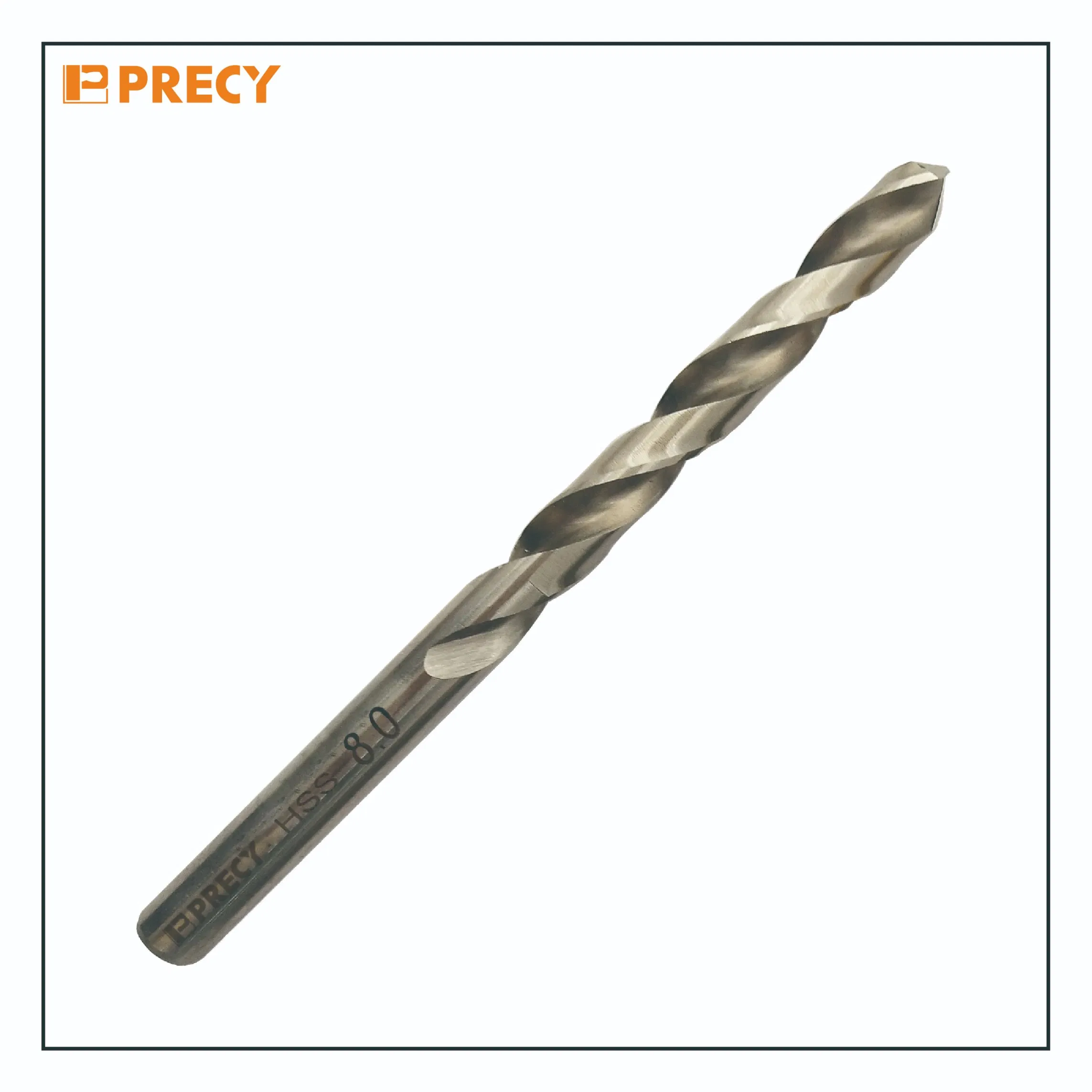

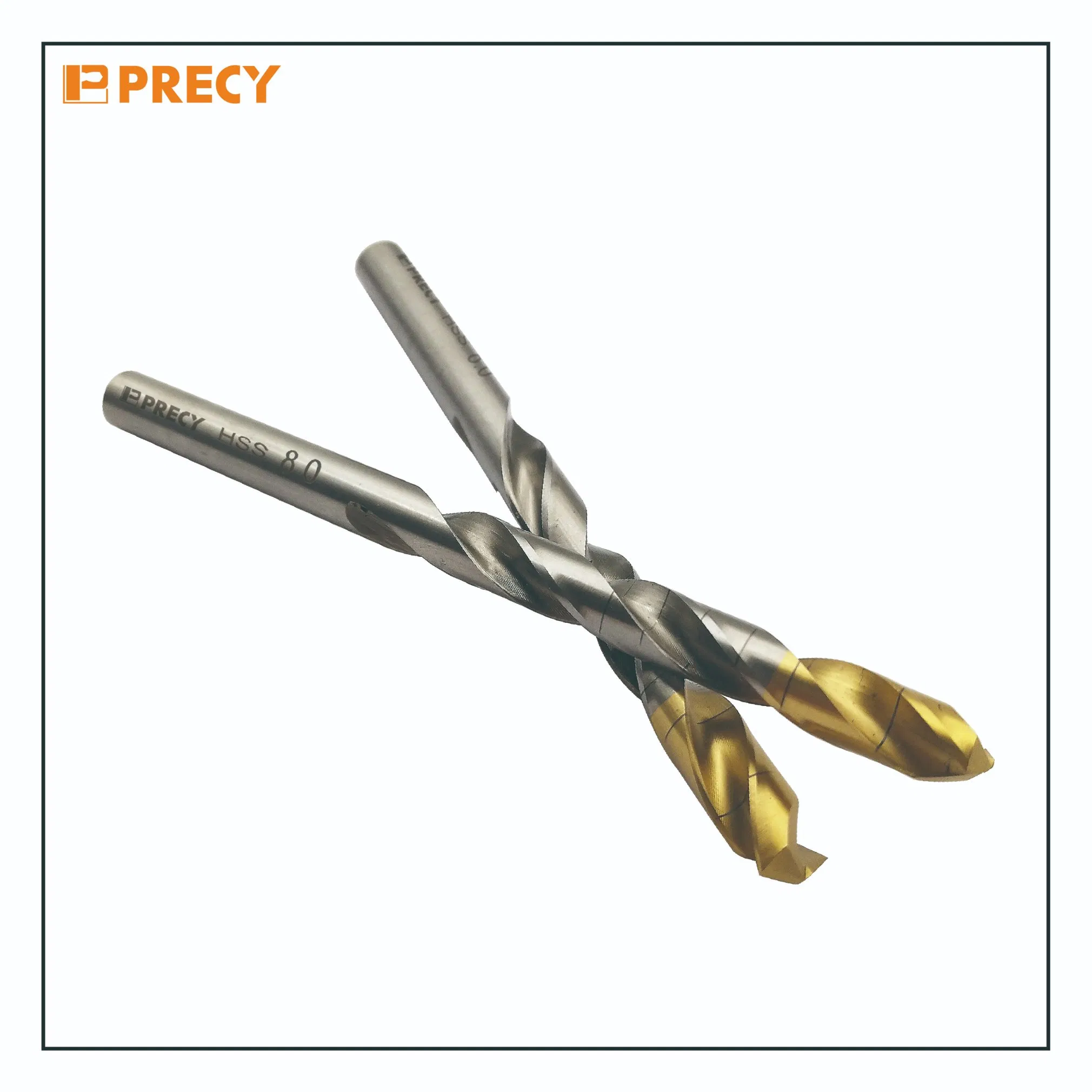

Fully Ground Twist HSS Drill Bit in 1mm

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦

Basic Information

Model NO.

CNTN00018

Length

Taper-length

Type

Twist Drill Bit

Material

High Speed Steel

Usage

Metal Drilling

Shank

Round

Product Package

Blister Card

Diameter

1~13mm

Delivery

30~45 Days

Transport Package

Carton

Origin

China

HS Code

8207509000

Production Capacity

1000000 Pieces/Year

🛠️

Product Description

Drill bit for the precise drilling of steels and cast irons, thanks to its self-centring cut.

118° Tip: 118° tip angle for sharpening. Suitable for general use in materials with long shavings. Enables rapid attachment and simple centring.

Split-point Grinding: Reduction of the drill tip. Enables simple self-centring on smooth surfaces and significantly reduces required axial load.

Cylindrical Shank: Diameter of shank equals tip diameter. Versatile use on portable electrical tools and CNC machines.

30° Type N Flute: Normal flute profile with 30° helix angle. Provides good rigidity and excellent drilling precision.

High-speed Steel: HSS substrate for general use in steels and cast irons up to 950 N/mm².

📋

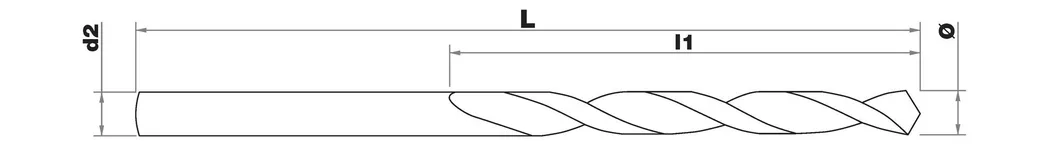

Technical Specifications

DIAMETER (mm)	D2/CM	L (Total Length)	l (Flute Length)
1	1	34	12
1.5	1.5	40	18
2	2	49	24
2.5	2.5	57	30
3	3	61	33
4	4	75	43
5	5	86	52
6	6	93	57
8	8	117	75
10	10	133	87
13	13	151	101

🏗️

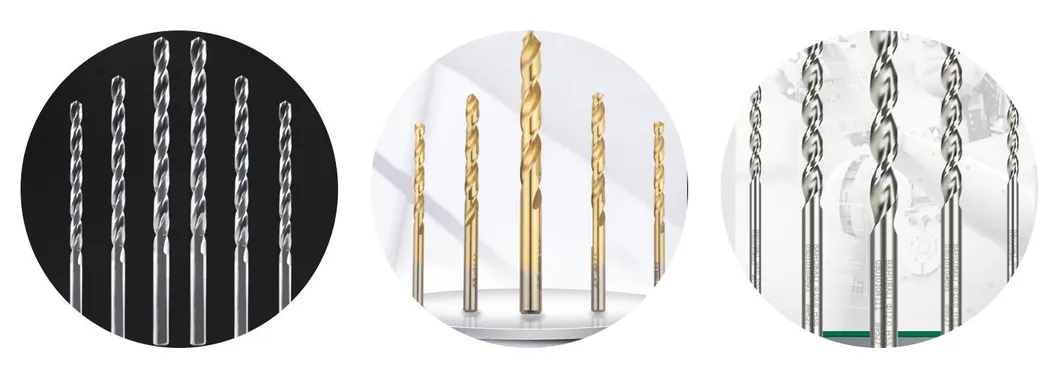

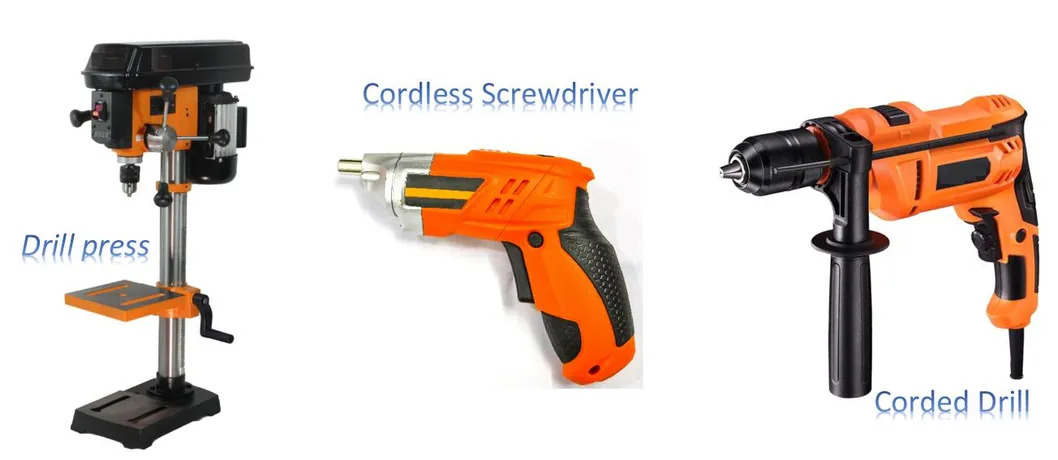

Application & Widely Used

✨

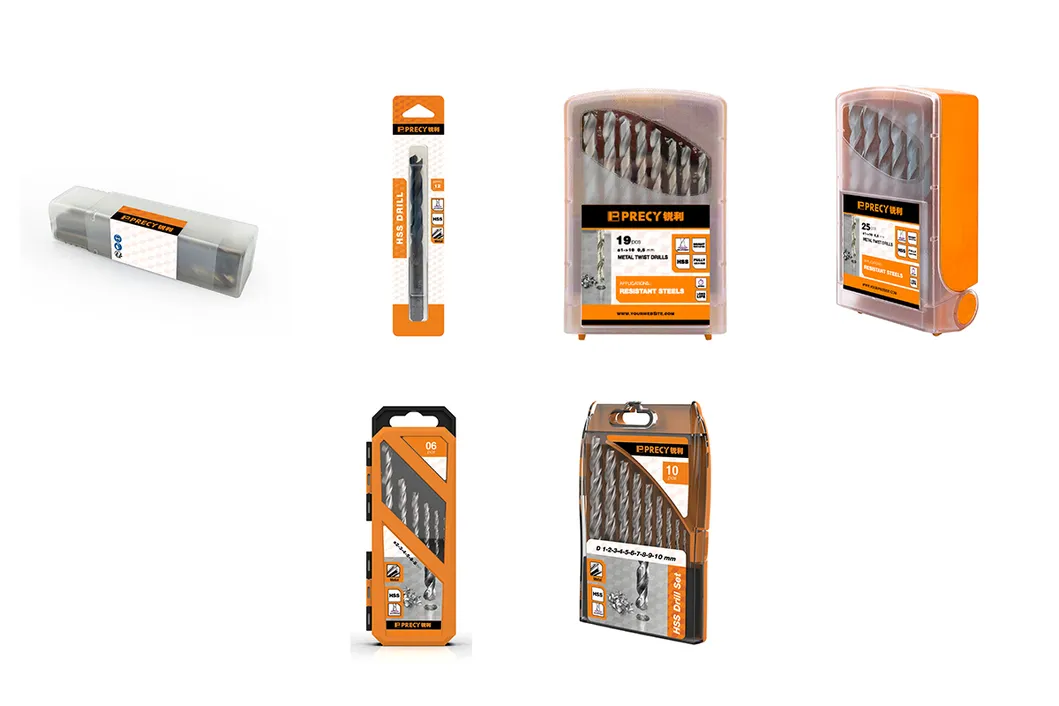

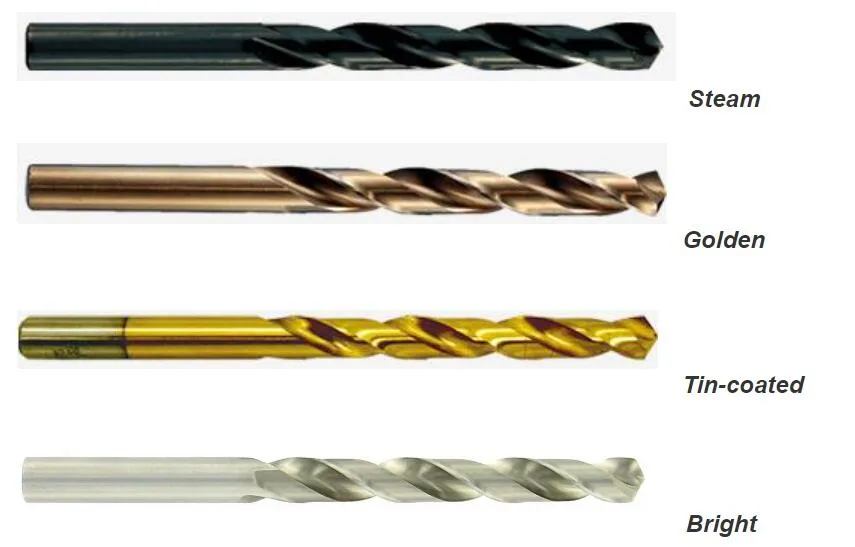

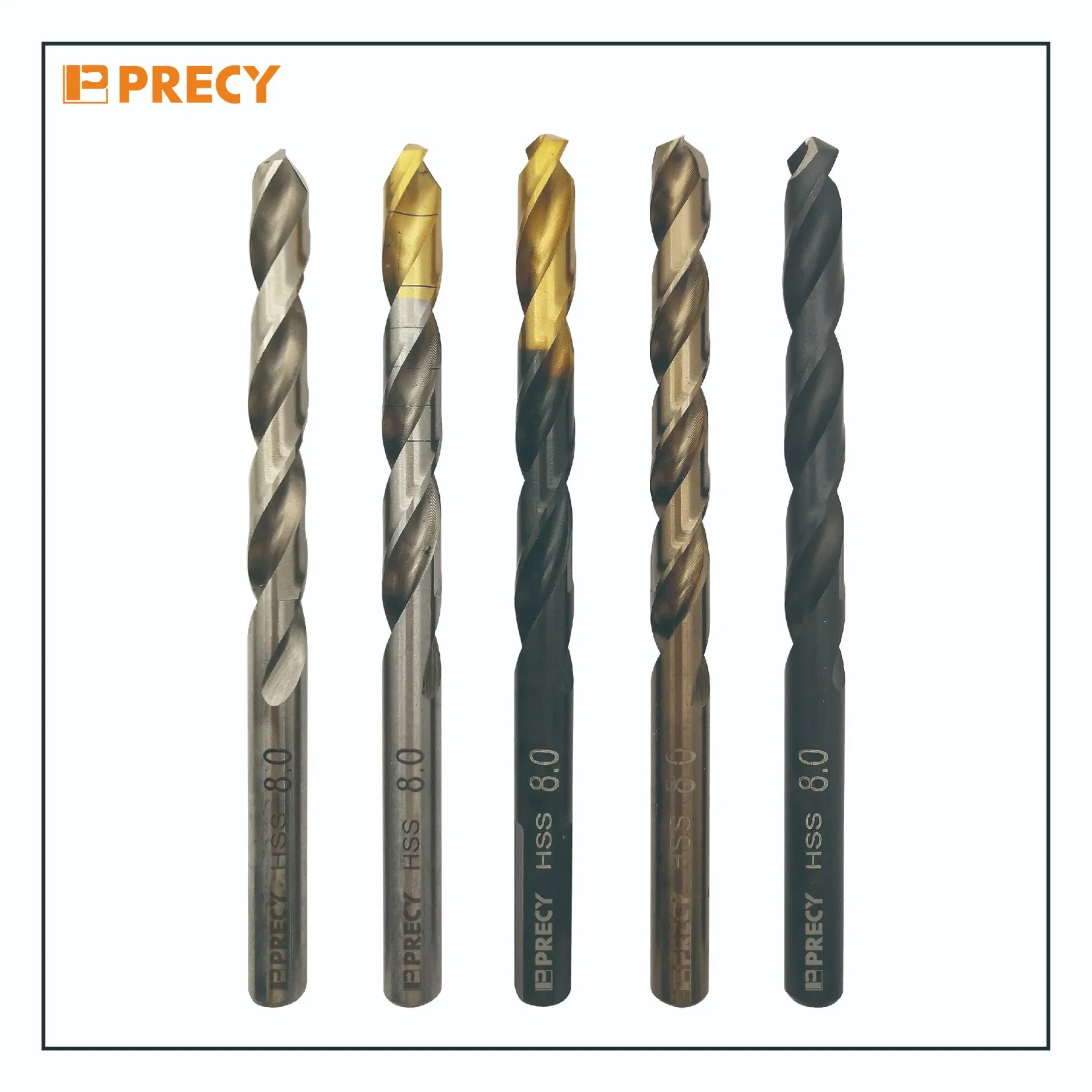

Surface Treatment & Packaging

❓

Frequently Asked Questions

What materials can these HSS twist drill bits drill through?

These bits are designed for precise drilling in steels and cast irons with a tensile strength up to 950 N/mm².

What are the advantages of the 118° tip angle?

The 118° tip is ideal for materials with long shavings, allowing for rapid material attachment and easy centring.

Does this drill bit require a pilot hole?

Thanks to the split-point grinding, the bit is self-centring even on smooth surfaces, significantly reducing the need for a pilot hole or axial load.

Is the shank compatible with standard drills?

Yes, it features a cylindrical round shank that is compatible with most portable electrical tools and CNC machine tools.

What sizes are available for this model?

The diameter range spans from 1mm up to 13mm, covering most standard drilling requirements.

What is the standard lead time for bulk orders?

The typical delivery timeframe is between 30 to 45 days, depending on order volume and requirements.
