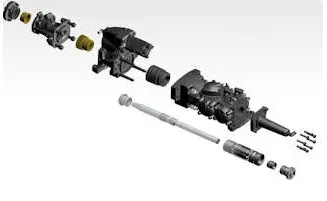

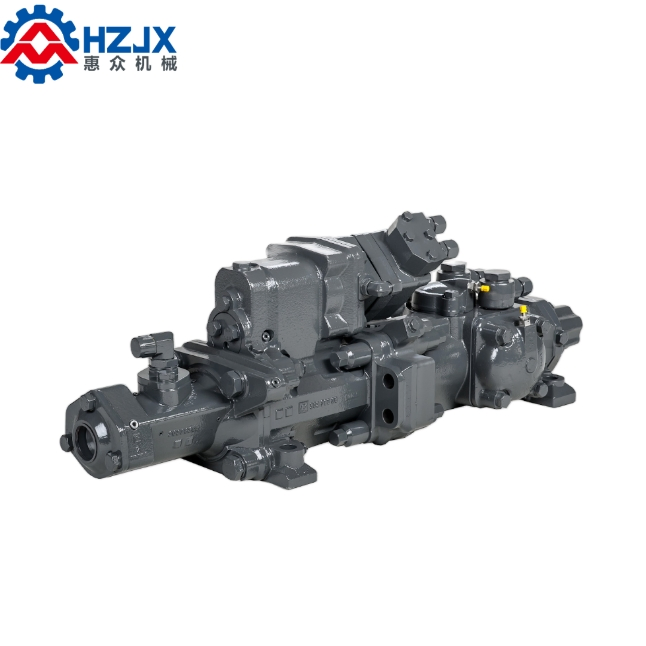

The main body modules are connected by four side bolts, minimizing the number of joint faces and large contact surfaces. Its simple percussion module has only two moving parts: the piston, distributor sleeve and moving parts are never in contact with the drill body modules.
To meet the torque and RPM requirements of different hole diameters and rock formations, the rotation motor comes in two types.
The drill offers the optional power extractor for manual or automatic opening of rock tool joints when using one-hole or fan automation.
| Parameter | Value |
|---|---|
| Weight (kg) | 260 |
| Hole size | 54 - 89 mm |
| Percussion power | 21 kW |
| Percussion rate | 42 - 53 Hz |
| Percussion pressure | 80 - 200 bar |
| Rotation (max.) | 200 bar |
| Rotation motor types | OMT200, OMT250 |
Standard Warranty: 3 Months
Extended Warranty: Optional coverage available for up to 36 months, ensuring peace of mind and sustained performance.
Global Support: Experience unparalleled service with 24/7 technical assistance and a reliable supply of spare parts, wherever you are.
Training: Benefit from comprehensive on-site or remote training for operation and maintenance, tailored to suit your needs.
As a distinguished leader in the rock drilling equipment industry, we leverage robust domestic and international resources to achieve remarkable success. Our customer-centric approach, coupled with high-quality after-sales service, has garnered immense trust and support. With a skilled team and expert maintenance engineers, we deliver exceptional technical support, saving valuable time for our clients.
