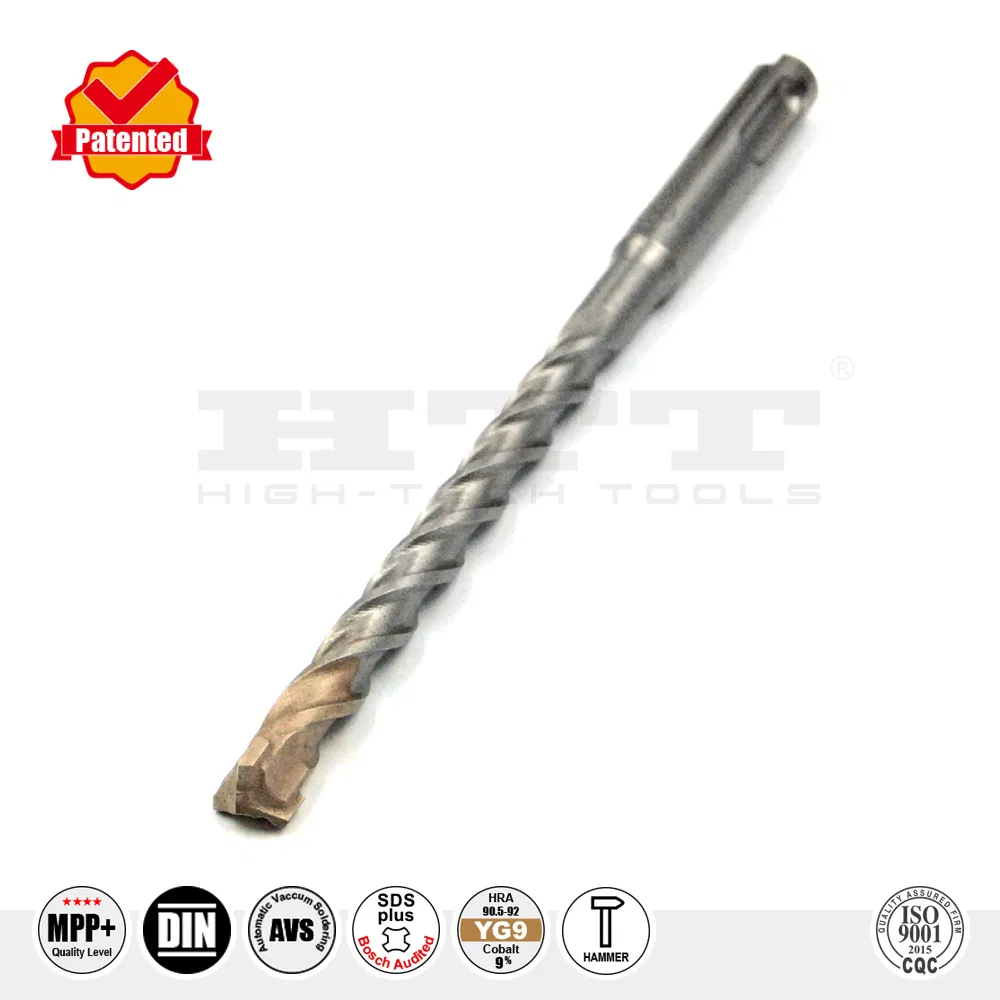

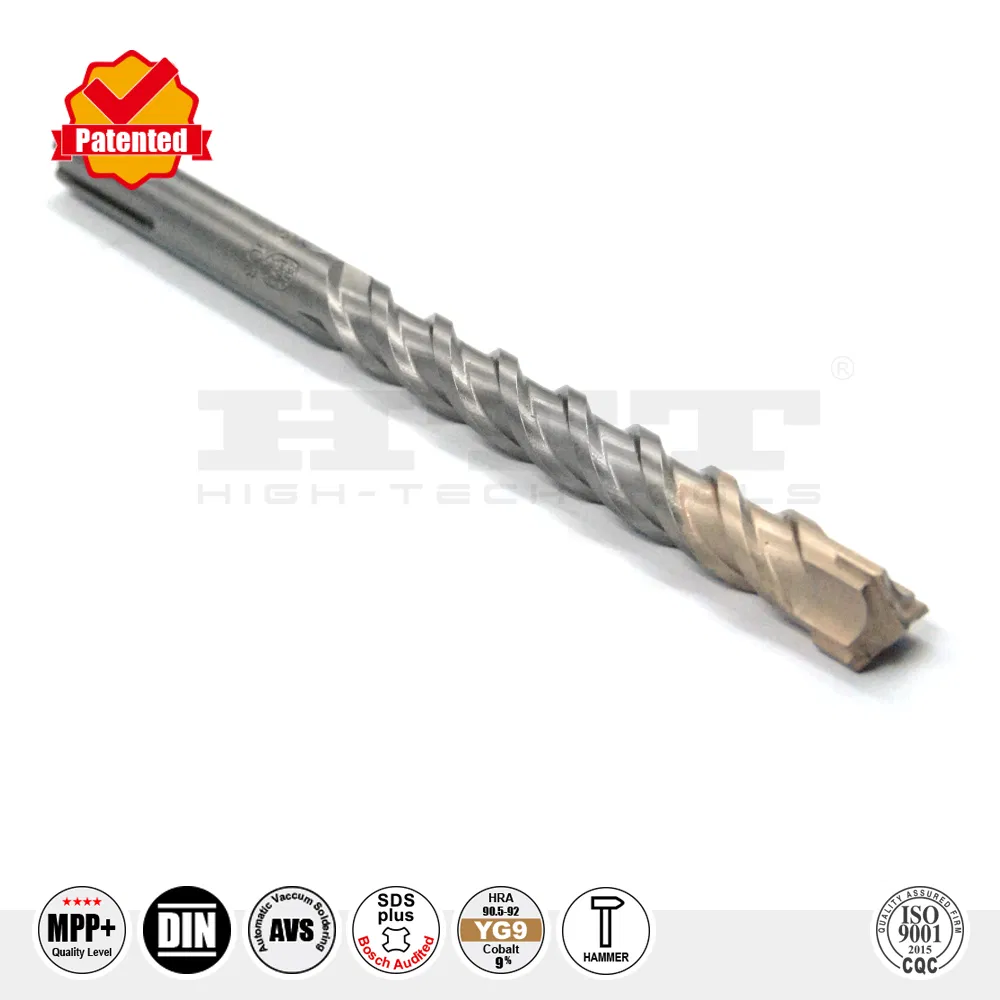

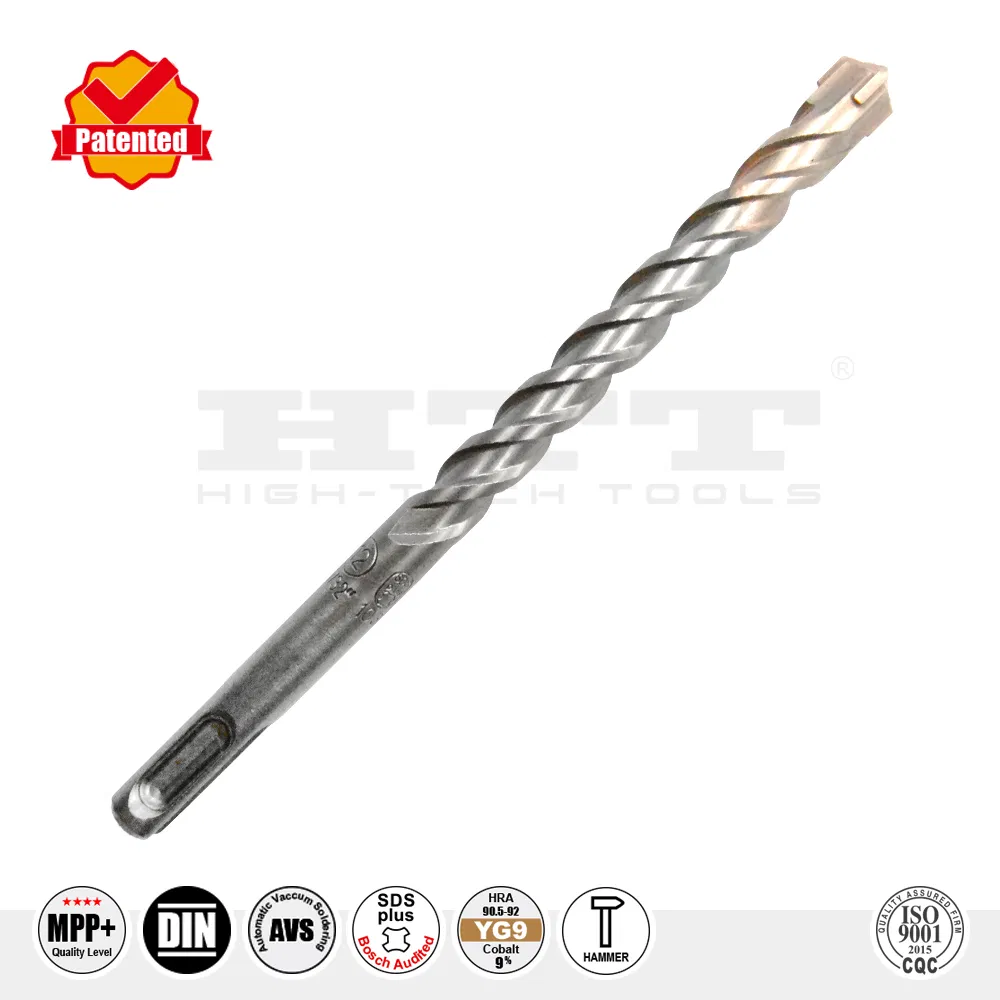

Y Cutter Hammer Drill SDS Plus for Concrete Stone Brick Drilling

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.: 2616

Type: Twist Drill Bit

Material: Tungsten Carbide

Usage: Masonry Drilling

Carbide Type: Virgin YG9

Steel Type: 40Cr

Cutter Type: Y Cutter Carbide Tip

Flute Type: 3H-Plus

Surface: Shot-Peened

Welding: Automatic Vacuum Soldering (AVS)

Origin: China

Capacity: 3,600,000/Year

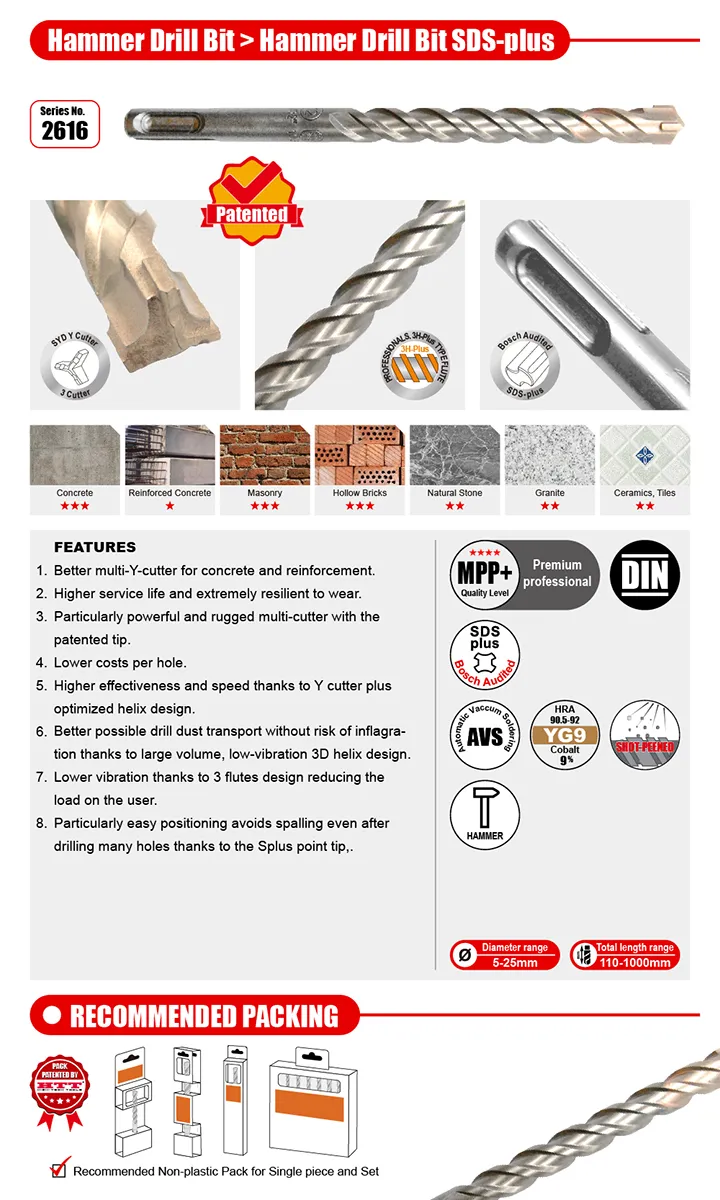

Product Features

◈
High-Performance SDS Plus: Designed for professional concrete and stone drilling applications.
◈

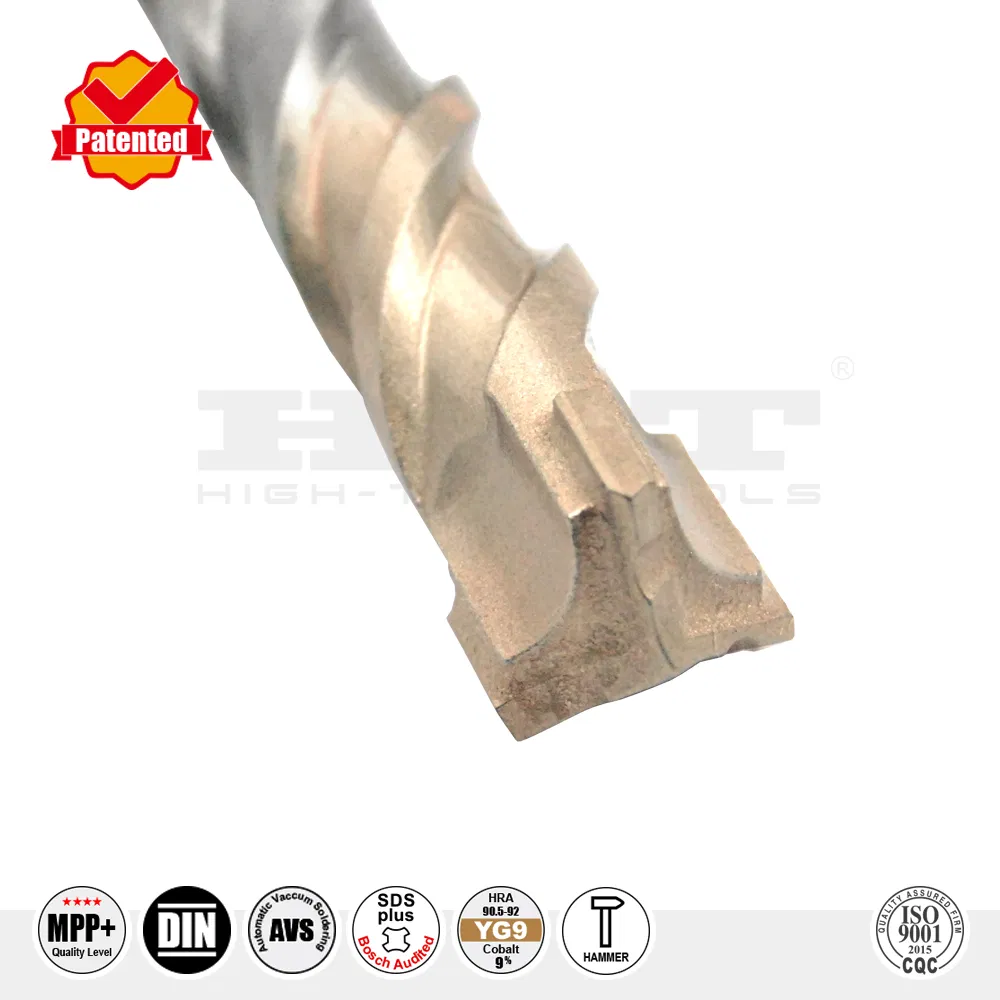

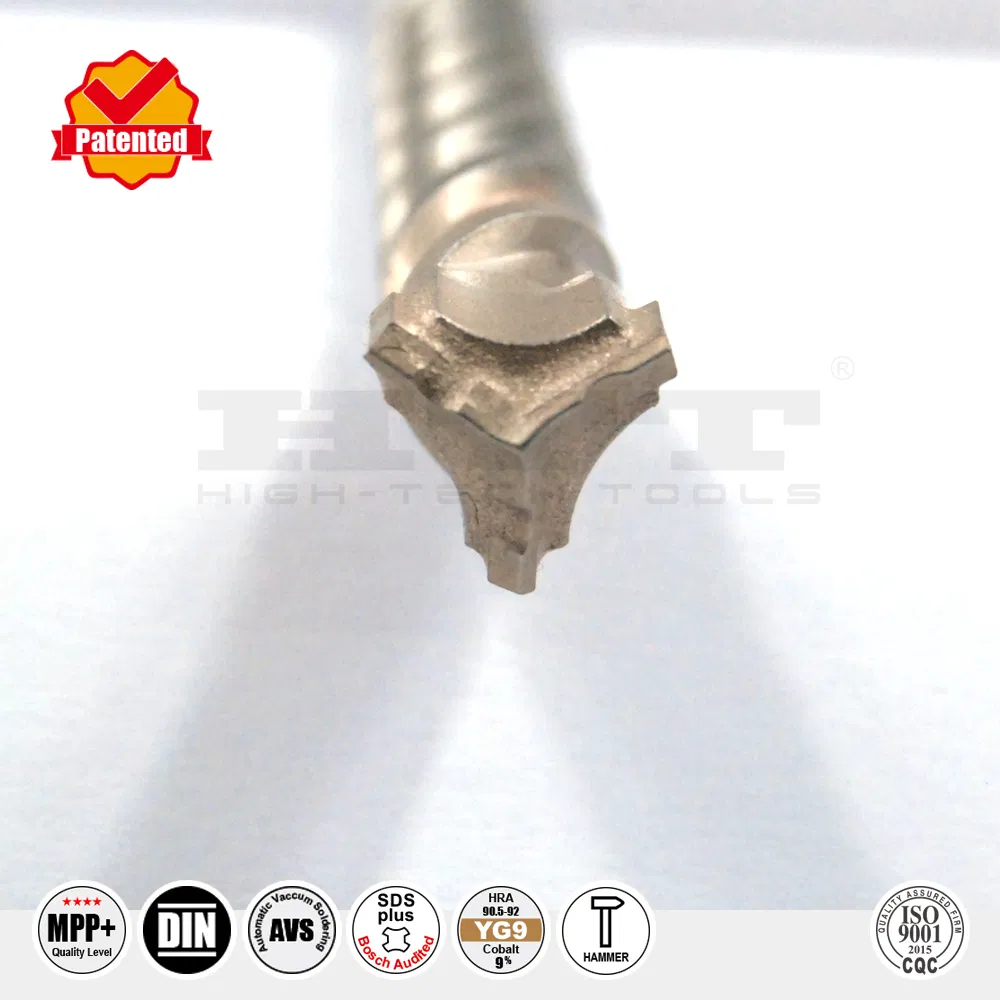

Y Cutter Carbide Tip: Engineered using virgin YG9 formulation for superior dust rejection and stable, ultra-fast drilling speeds.
◈
3H-Plus Flute Design: Maximizes the rejection rate of drilling dust, ensuring smooth operation and a more comfortable user experience.
◈
Ergonomic Operation: Lower vibration levels allow for easier handling during extended drilling tasks.
◈
Industrial Standards: 100% pass rate for SDS-plus gauge inspection, featuring the audited stamped logo.
◈
Environmental Protection: SGS-approved anti-rust oil treatment compliant with Reach standards.

Available Sizes Selection

Special sizes are available upon specific request.

Item Number	Diameter (mm)	Working Length (mm)	Overall Length (mm)
2616.050110	5	60	110
2616.060110	6	60	110
2616.080110	8	60	110
2616.100160	10	110	160
2616.120160	12	110	160
2616.140160	14	110	160
2616.160210	16	160	210
2616.200260	20	210	260
2616.250310	25	260	310
2616.280460	28	410	460
2616.120600	12	550	600
2616.141000	14	950	1000

Frequently Asked Questions

Q1: What materials can this drill bit penetrate? This Y Cutter SDS Plus drill bit is specifically designed for high-efficiency masonry drilling, including concrete, stone, and brick surfaces.

Q2: What is the advantage of the Y Cutter carbide tip? The Y Cutter design optimizes dust removal from the hole, which reduces friction and allows for a significantly faster and more stable drilling speed compared to standard tips.

Q3: Does the bit fit standard rotary hammer drills? Yes, it features a standard SDS-plus shank which is 100% inspected and compatible with all rotary hammers utilizing the SDS-plus system.

Q4: How does the 3H-Plus flute design improve performance? The 3H-Plus flute maximizes dust rejection efficiency, which not only speeds up the job but also reduces vibration, leading to less operator fatigue.

Q5: Is the product treated for corrosion resistance? Yes, every bit undergoes an SGS-approved anti-rust oil treatment that meets Reach standards to protect the tool and ensure longevity for the user.

Q6: Can I request customized sizes? While we offer a wide range of standard diameters (5mm to 28mm) and lengths (up to 1000mm), special sizes can be manufactured based on specific requirements.
