Reliable Power for Rugged Terrains

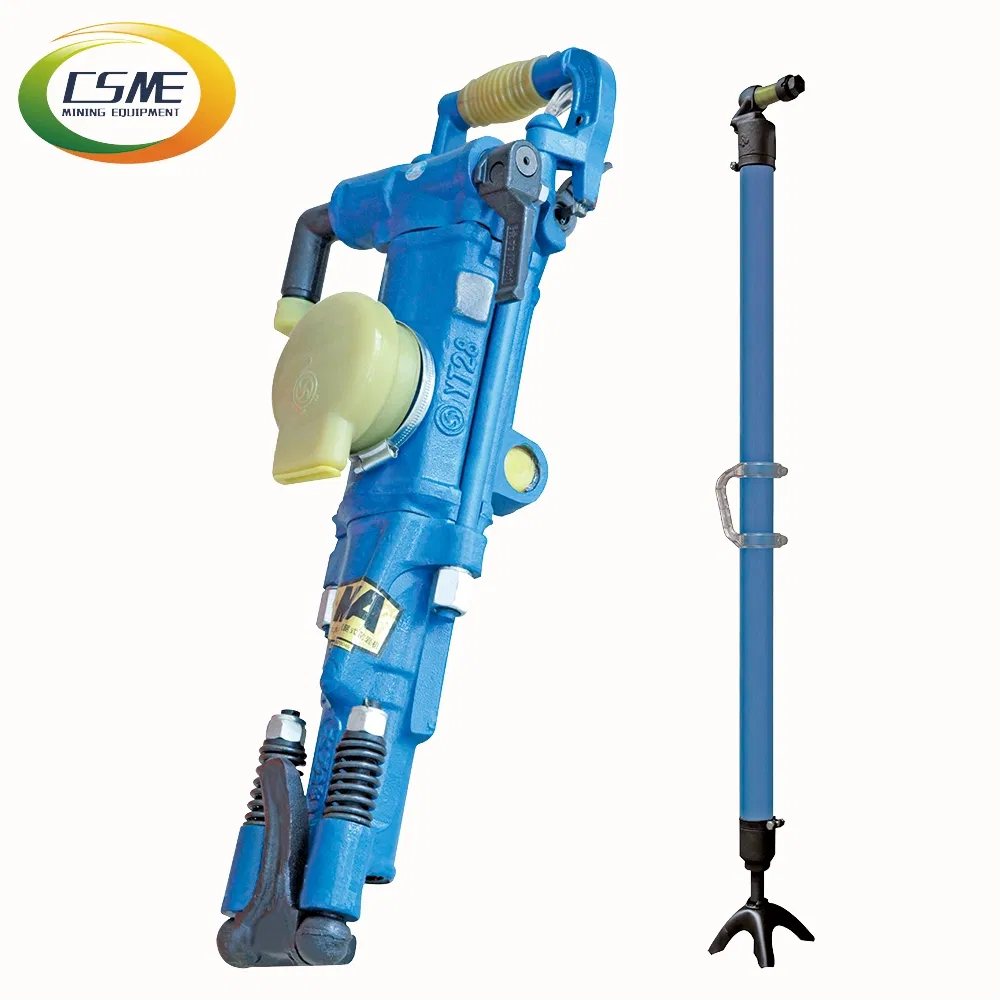

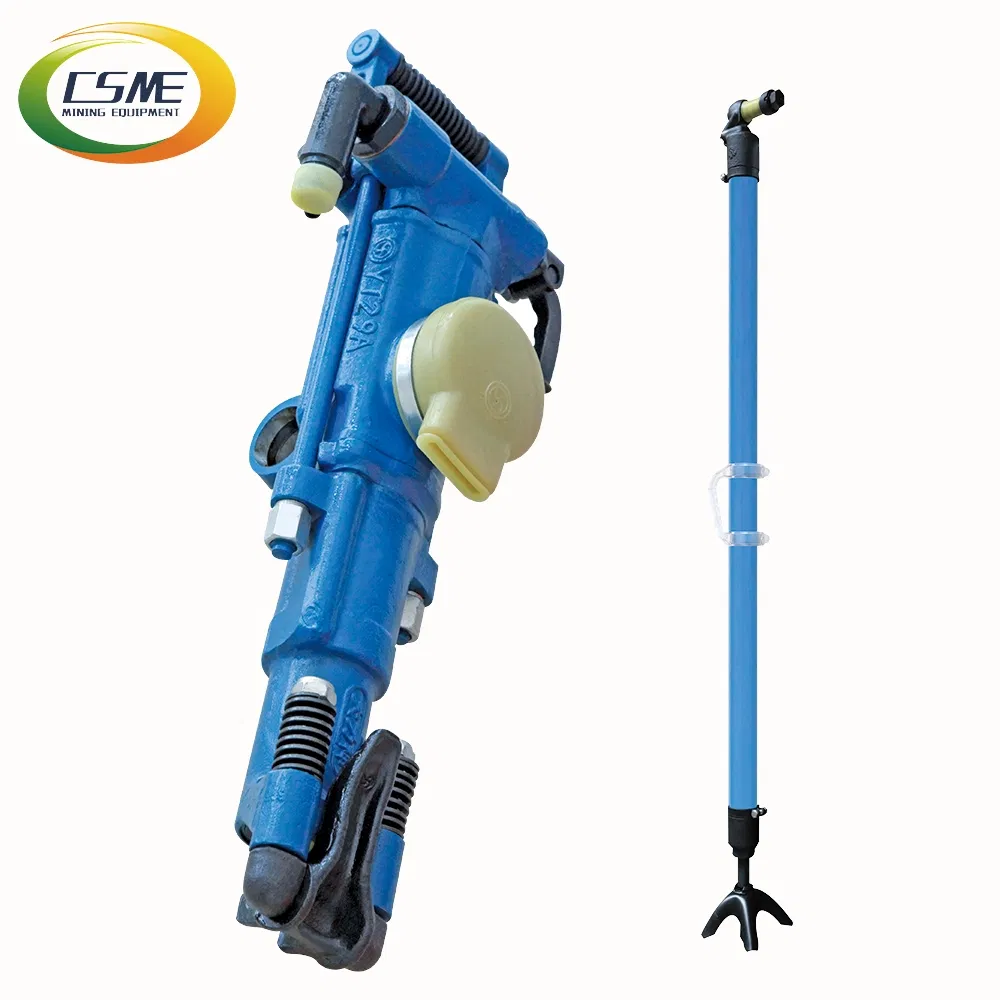

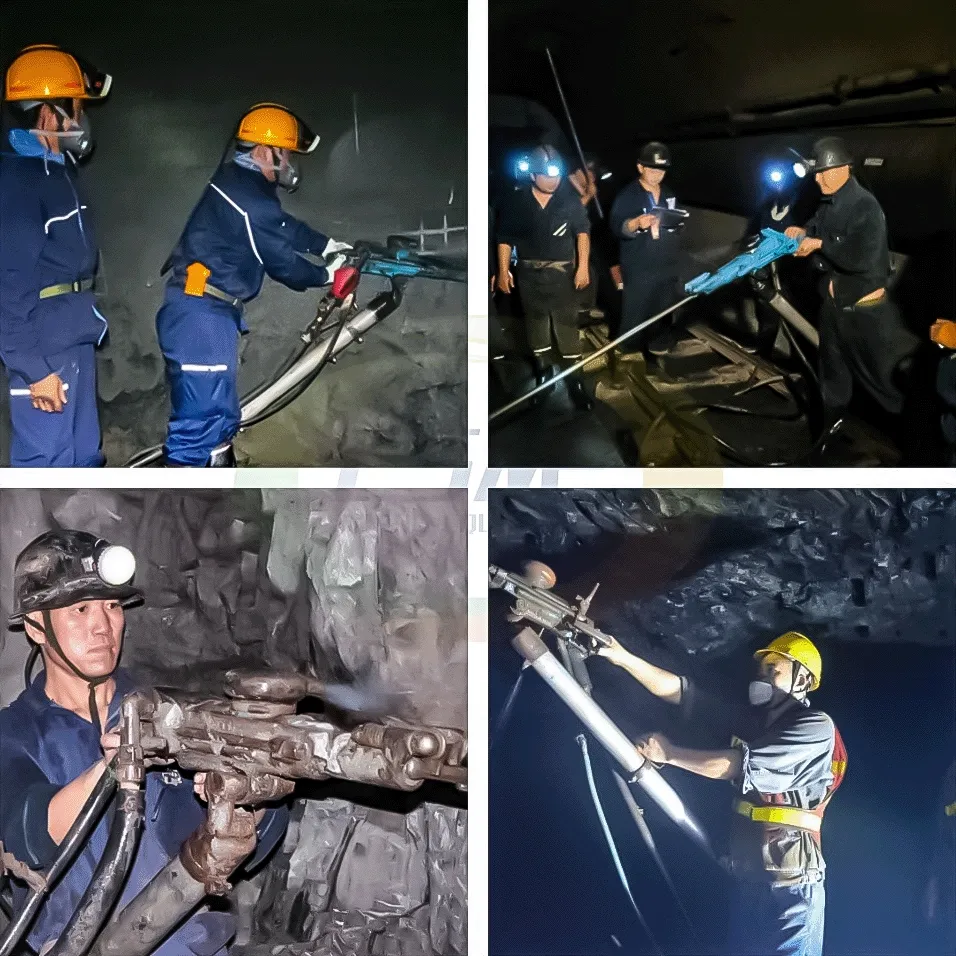

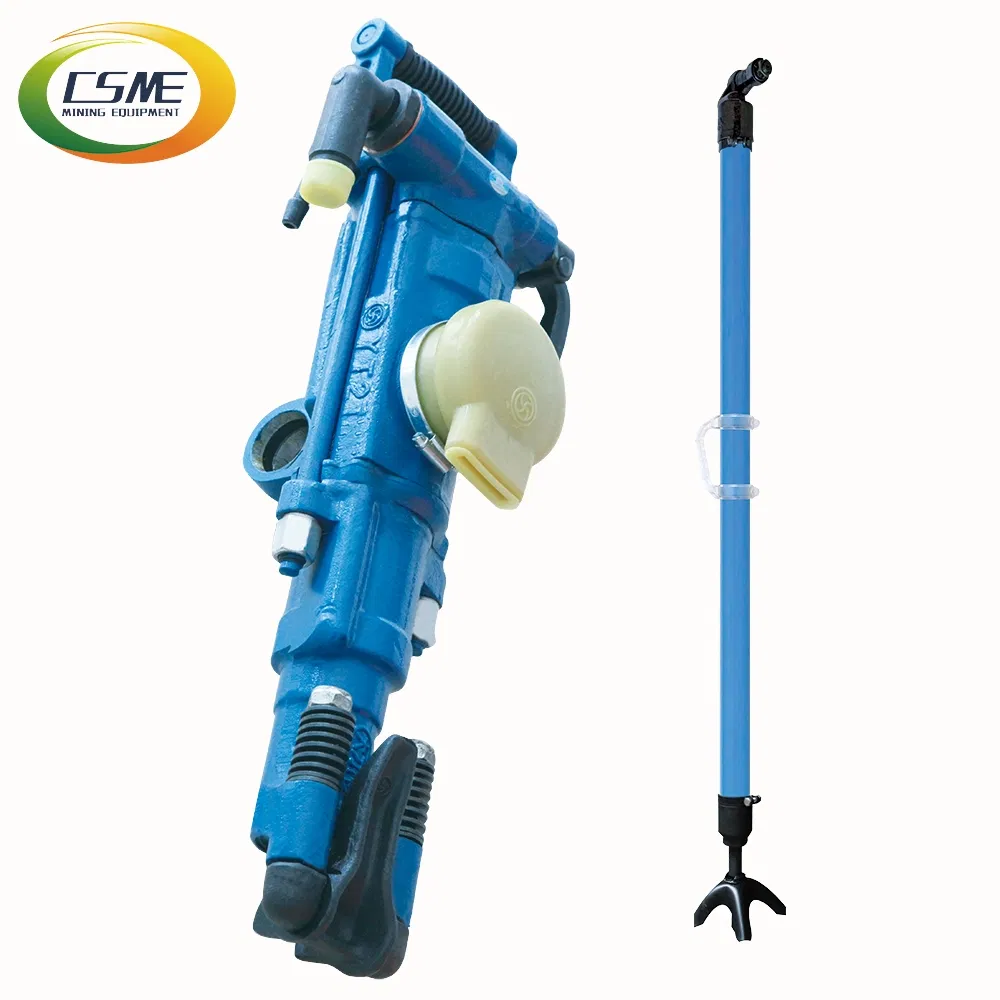

Engineered as a high-efficiency pneumatic drilling solution for harsh mining conditions, the YT Series delivers 360° drilling flexibility across all rock types and tunnel angles.

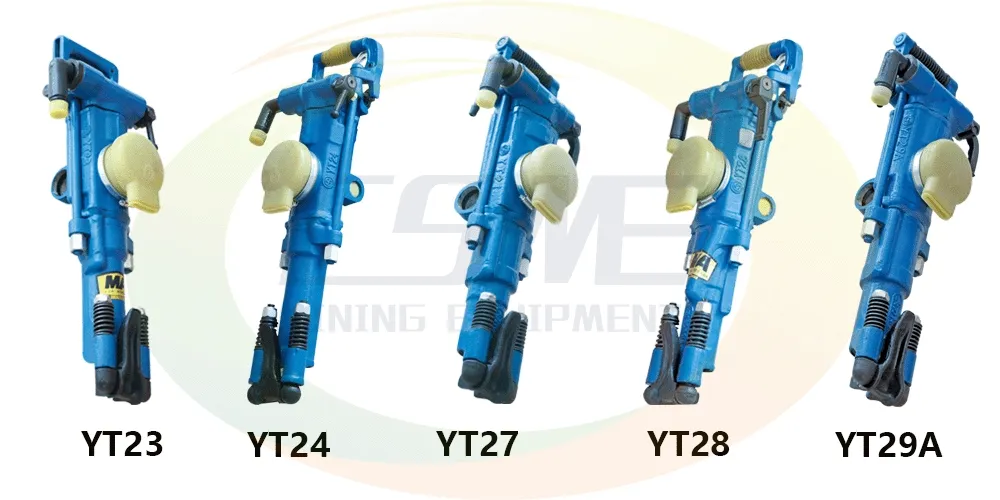

| Model No | YT23D | YT24 | YT27 | YT28 | YT29A |
|---|---|---|---|---|---|
| Weight (kg) | 24 | 24 | 27 | 26 | 27 |
| Length (mm) | 668 | 678 | 668 | 661 | 659 |
| Cylinder Dia*Stroke (mm) | 70*70 | 70*70 | 80*60 | 80*60 | 82*60 |
| Impact Energy (J) | ≥45 | ≥65 | ≥75.5 | ≥70 | ≥78 |
| Impact Frequency (Hz) | ≥28 | ≥31 | ≥36.7 | ≥37 | ≥37 |
| Air Consumption (L/S) | ≤38 | ≤67 | ≤83.3 | ≤81 | ≤88 |

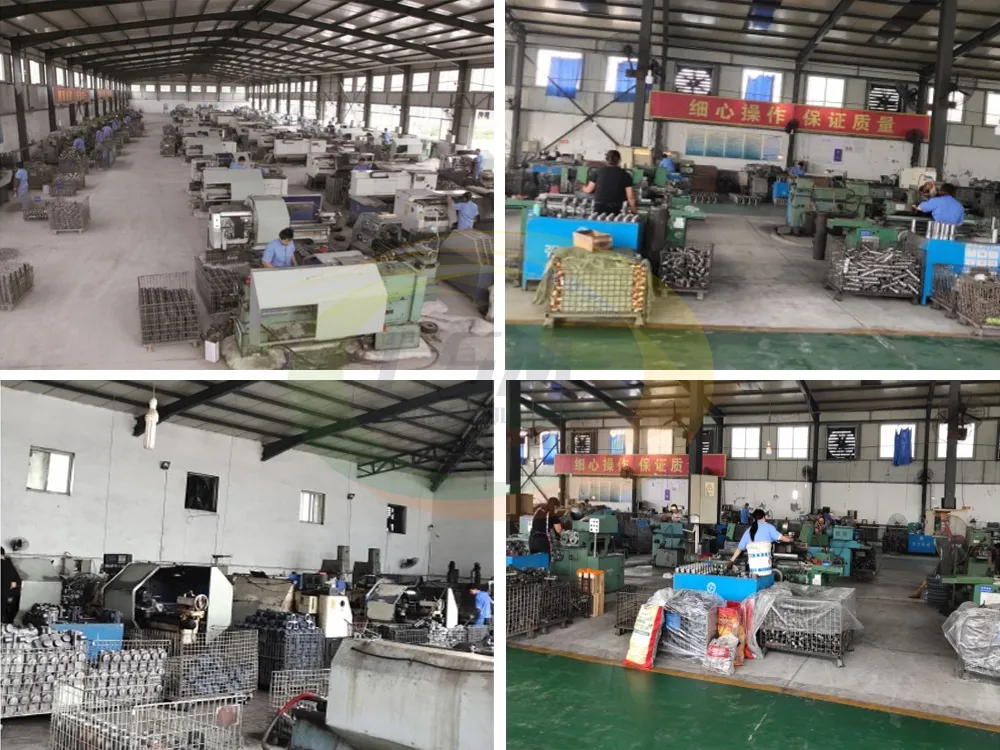

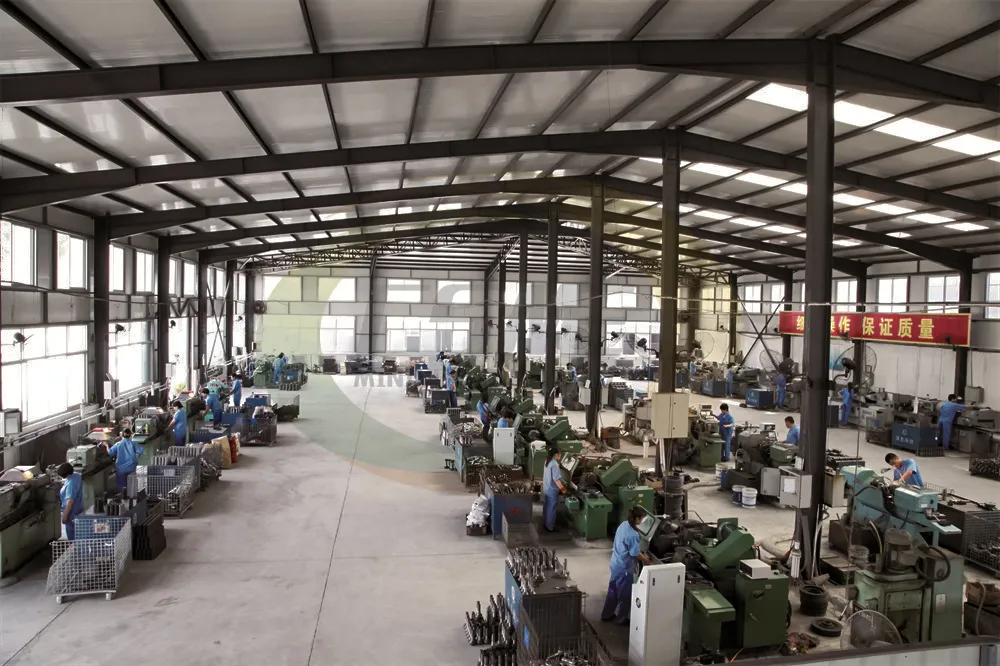

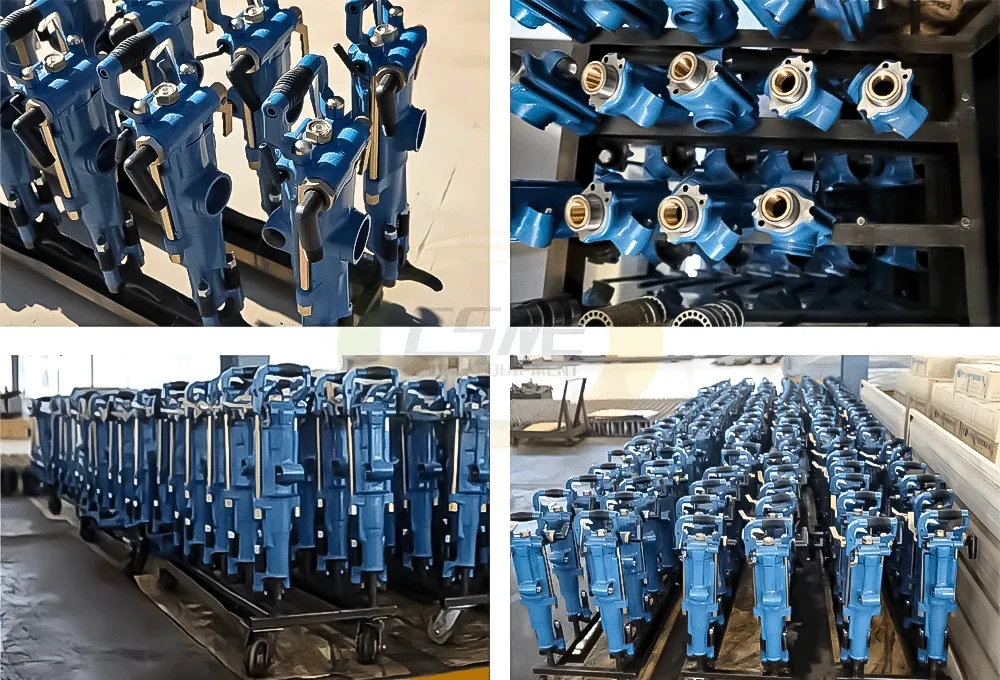

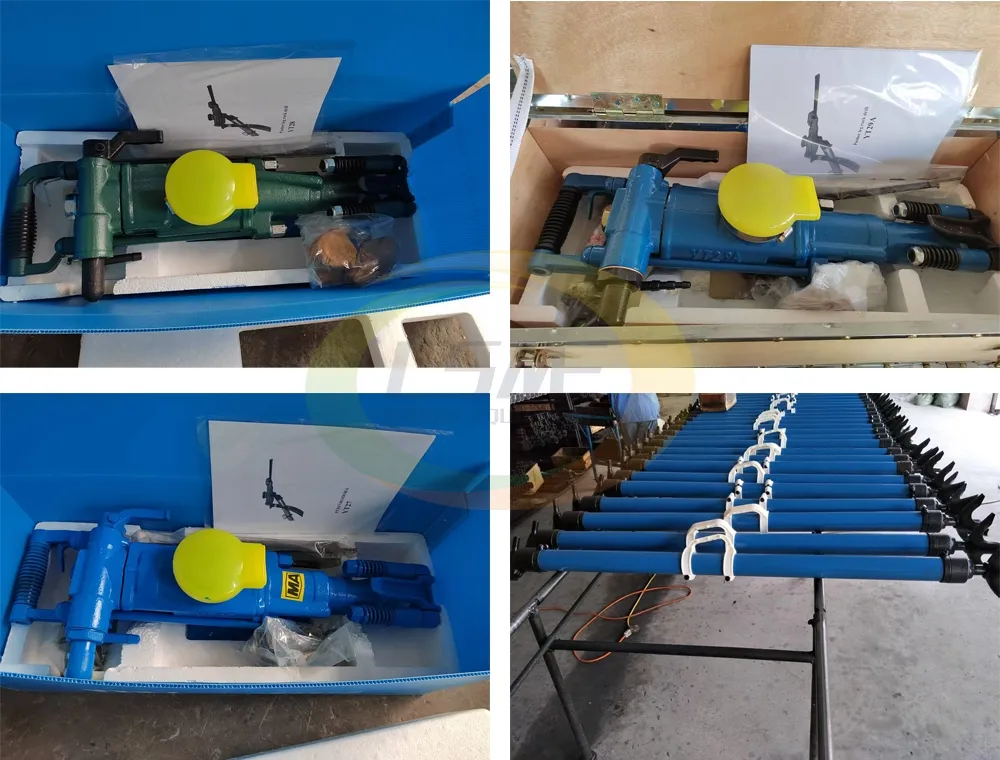

Our production facilities are equipped with state-of-the-art machinery to ensure every rock drill meets international quality standards. Products are carefully packed in reinforced cartons or wooden boxes to ensure safe international transit.
As a professional and credible mining equipment supplier, we collaborate with over 30 certified production plants. Our expertise spans across various mining solutions including mining hoists, locomotives, wagons, rock loaders, and light steel rails. With a strong international trading team, we provide responsible after-sale services and fixed solutions for the mining industry globally.
