Customization: Available
After-sales Service: Free Commissioning and Training on Site
Warranty: One Year or 2000 Working Hours
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Dragon GP830
Certification
CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition
New
Motor
AC Motor
Drill Hole Diameter
138-235mm
Drill Hole Depth
<100m
Bit Type
Button Bit
Drilling Way
Impactor
Hole Depth
30m
Rod Diameter
102mm, 114mm
Engine
Cumins Qsz13
Air Compressor
Atlas Copco
🏗️ Product Description

Hydraulic crawler truck mounted DTH RC Down The Hole Hammer Rock Impact Drilling Rig

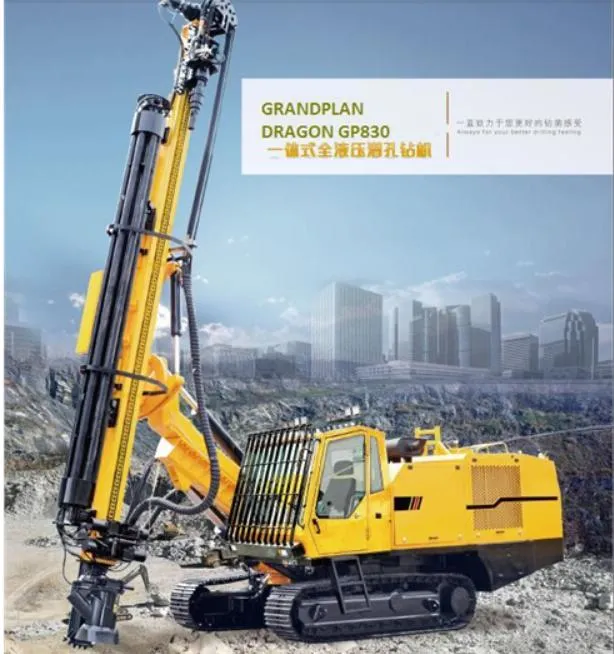

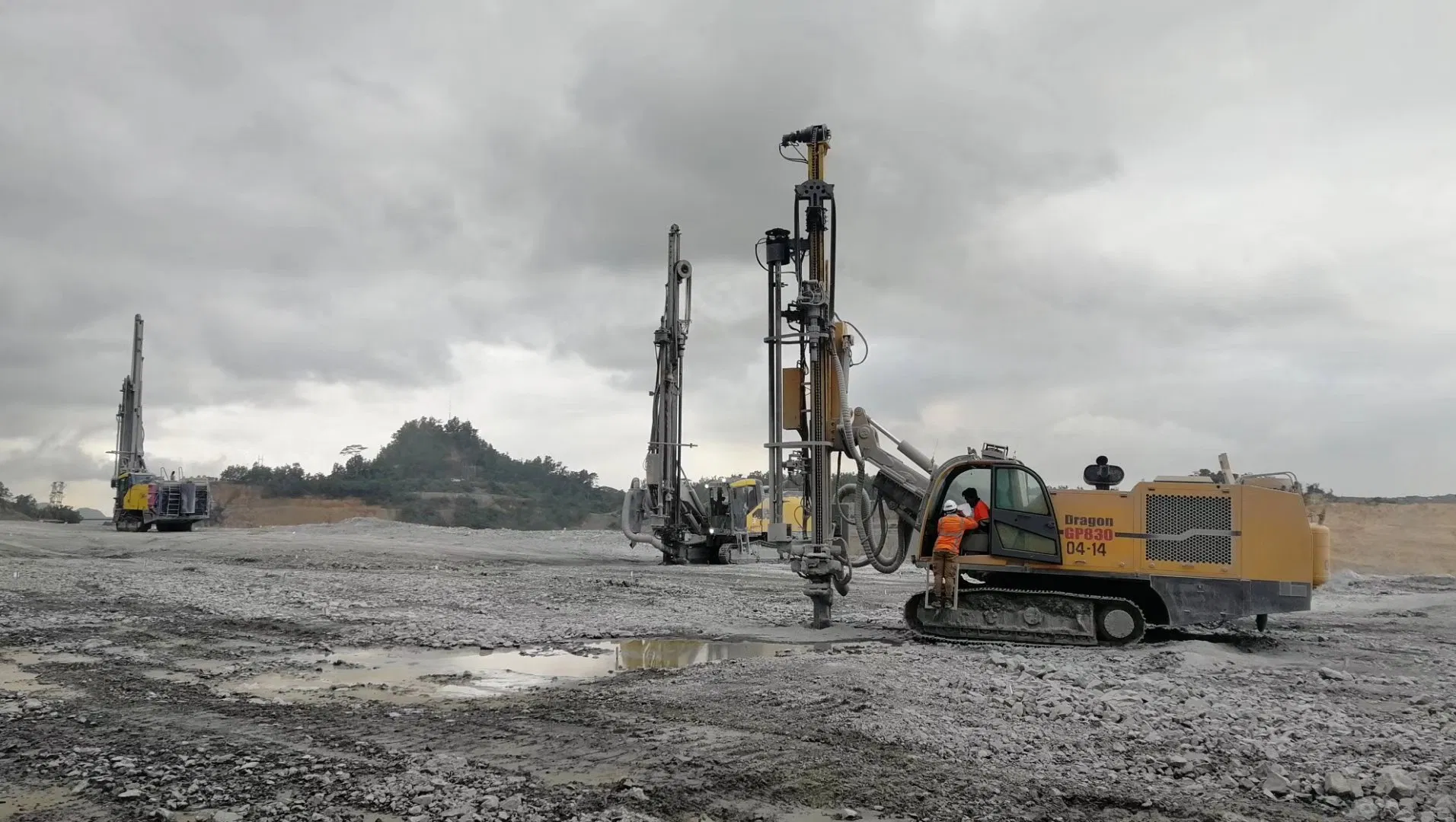

Drilling Rig Main Image

WITH BUILT-IN AIR COMPRESSOR + ROD MANIPULATOR + CABIN

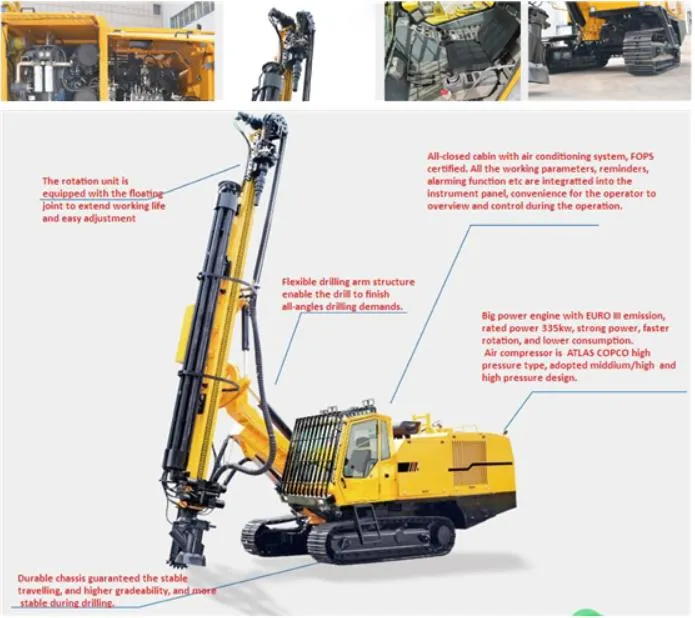

Dragon GP830 is an all-in-one hydraulic DTH drilling rig, offering enhanced automation, high efficiency, and reliable operation. Equipped with a FOPS-approved cabin and automatic pipe handling system, it features a heavy-duty undercarriage with wide tracks for safety and mobility. Its hydraulic dust collecting system meets modern environmental standards for green mining.

✨ Key Features
Rig Features
  • Fully Automatic: Requires only a single operator for full functionality.
  • Premium Components: Imported REXROTH and EATON hydraulic controls for powerful torque.
  • Versatile Drilling: Telescopic heavy-duty drill arm for wide coverage and effective drilling time.
  • High Pressure: Atlas air compressor (USA) reaching 25bar with 28m³/min displacement.
  • Eco-Friendly Power: EFI Cumins QSZ13 engine meeting EU Stage III standards.
  • Advanced Handling: Hydraulic rod changer and pulse-jet dust collection mechanism.

🚀 High Efficiency: Small auxiliary electrical compressor reduces engine starting load. Multi-directional telescopic boom expands coverage.

🛡️ Durability: Motor-driven planetary reducer and high-strength chain wheel mode for long service life.

🔧 Convenience: Accessible maintenance points and integrated alarming data on the instrument panel.

🔒 Safety: FOPS/ROPS air-conditioned cabin with large windows for visibility and 400mm+ ground clearance for tough terrains.

📊 Technical Parameters
Weight & Dimensions
Total Mass
25000kg
Dimensions
9785 x 3200 x 3500mm
Rod Carousel & Capacity
Drilling Dia.
138-235mm
Rod Carousel
5+1 capacity
DTH Hammer
5'' / 6'' / 7''
Engine & Rotation
Power
335kw / 2100rpm
Max Torque
3900NM
Rotation Speed
0-75rpm

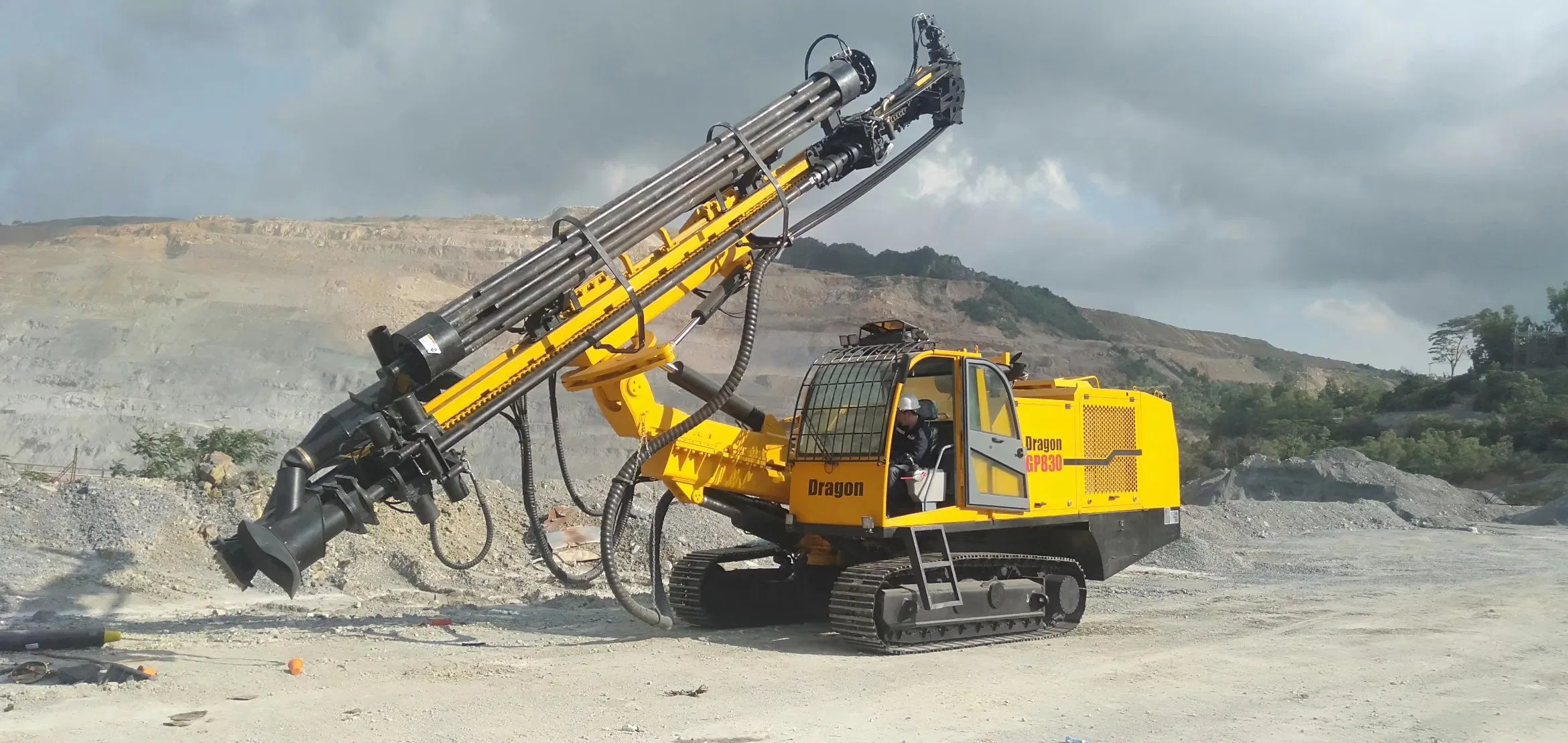

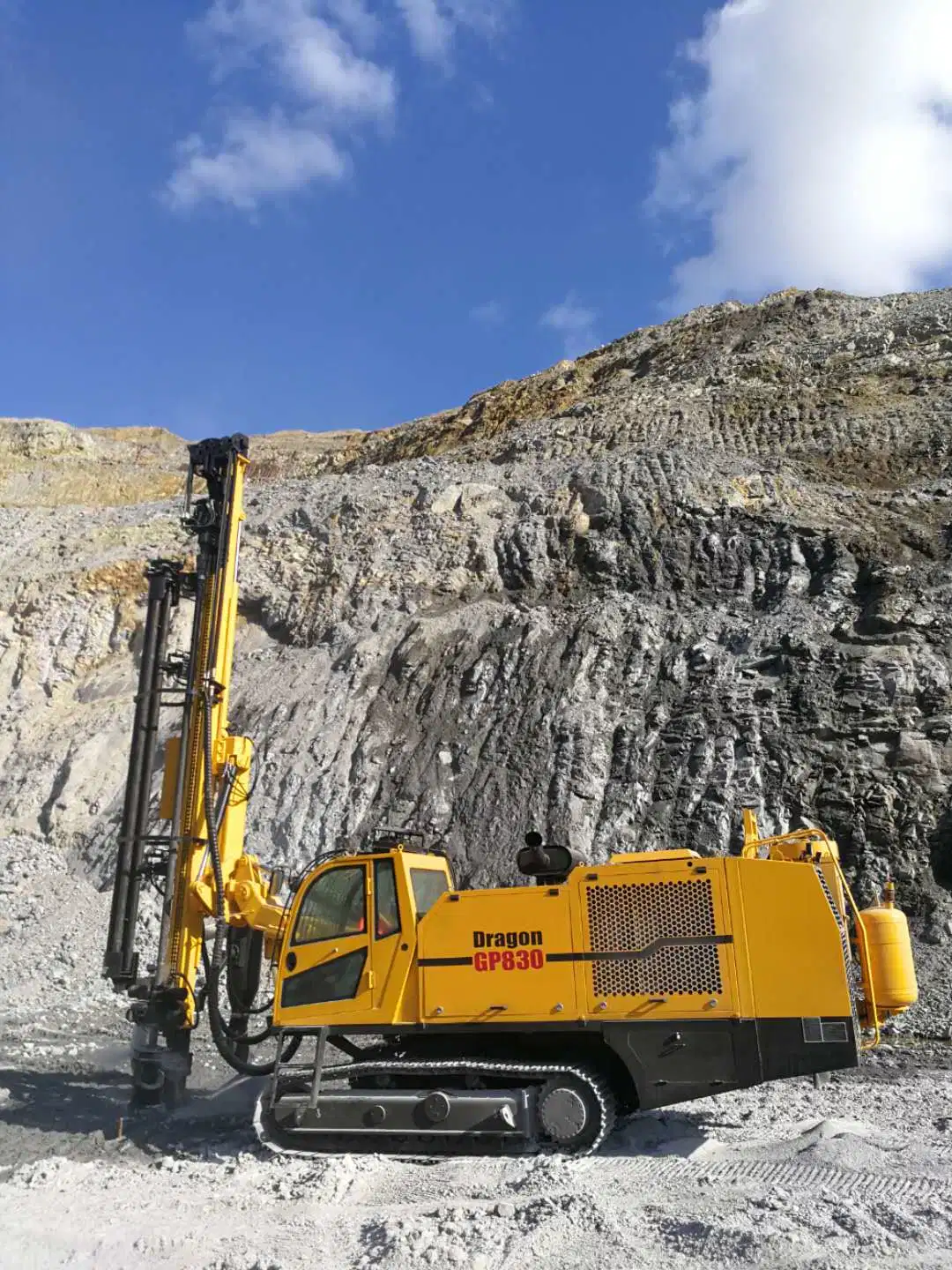

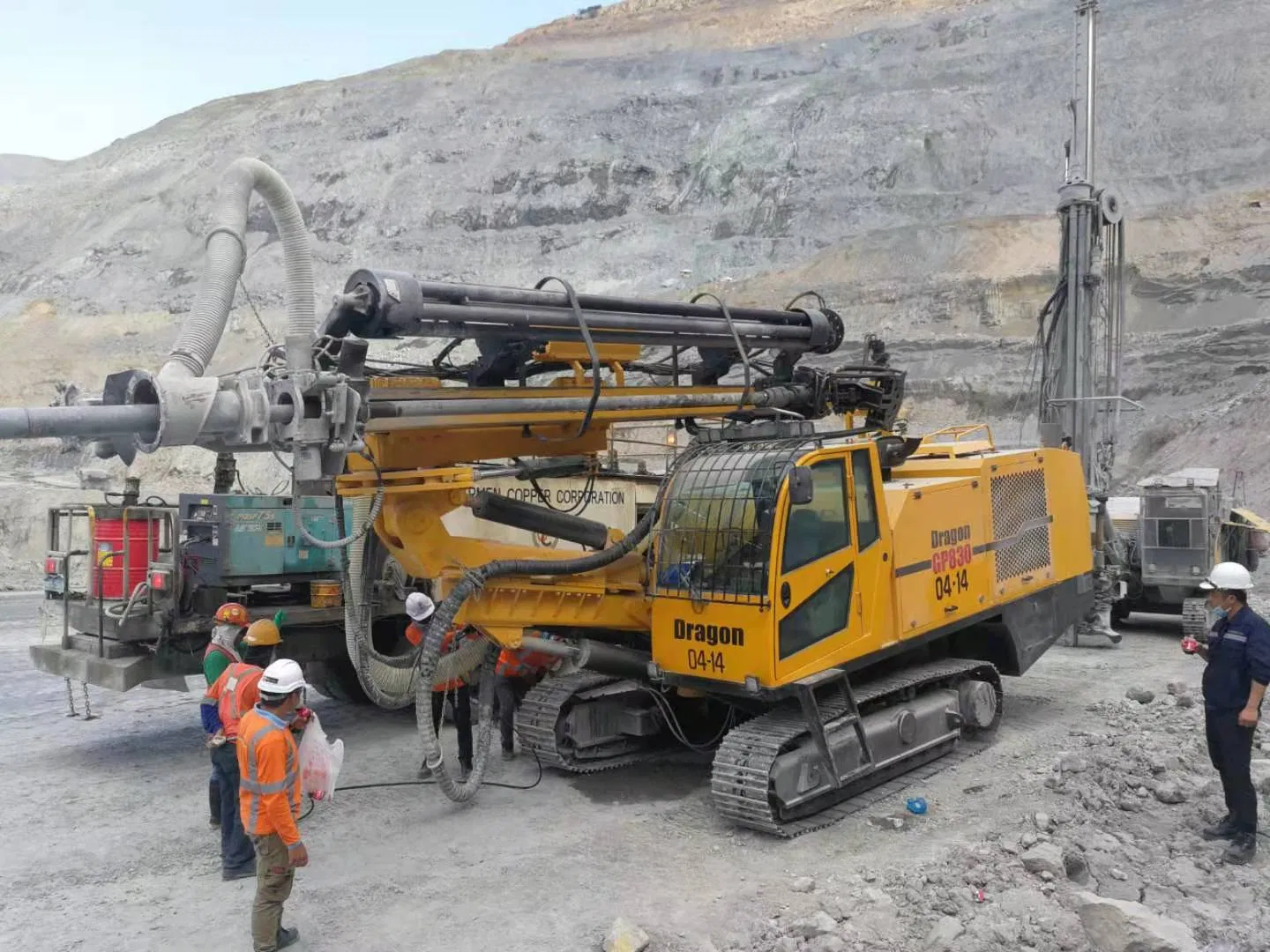

📷 Product Gallery
Frequently Asked Questions
What is the maximum drilling diameter for the Dragon GP830?
The rig supports a drilling hole diameter ranging from 138mm to 235mm.
Does this machine include an integrated air compressor?
Yes, it features a built-in Atlas Copco two-stage rotary screw air compressor with a maximum air pressure of 25bar.
What engine powers this drilling rig?
It is powered by a Cumins QSZ13-C450-30 water-cooled, 6-cylinder electrical injection engine with a rated power of 335kw.
Is the operator's cabin safety certified?
Yes, the closed cabin is FOPS/ROPS approved, meeting international safety standards, and includes air conditioning.
What is the rod carousel capacity of the rig?
The hydraulic rod changer has a carousel capacity of 5+1 rods, facilitating automatic rod handling.
Can it operate on rough terrain?
Yes, the heavy-duty undercarriage features a ground clearance of over 400mm and track oscillation of +/- 10°, making it suitable for tough terrains.
