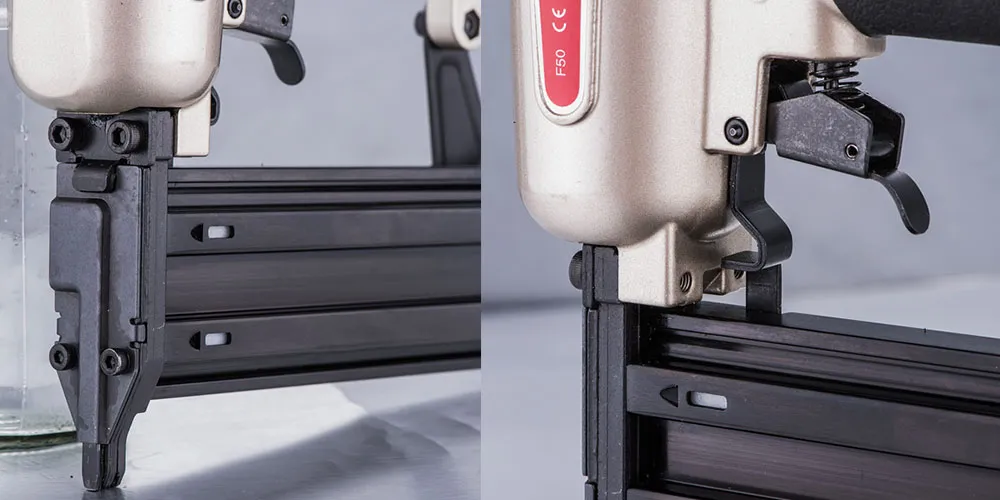

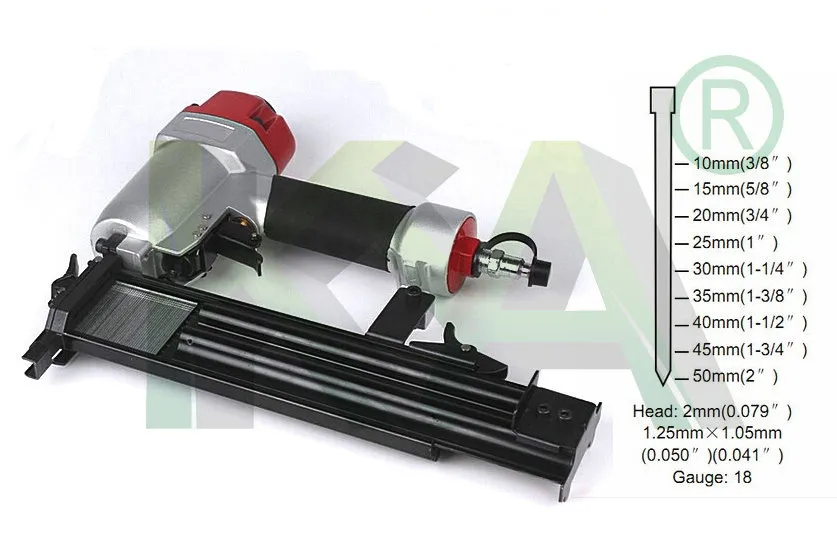

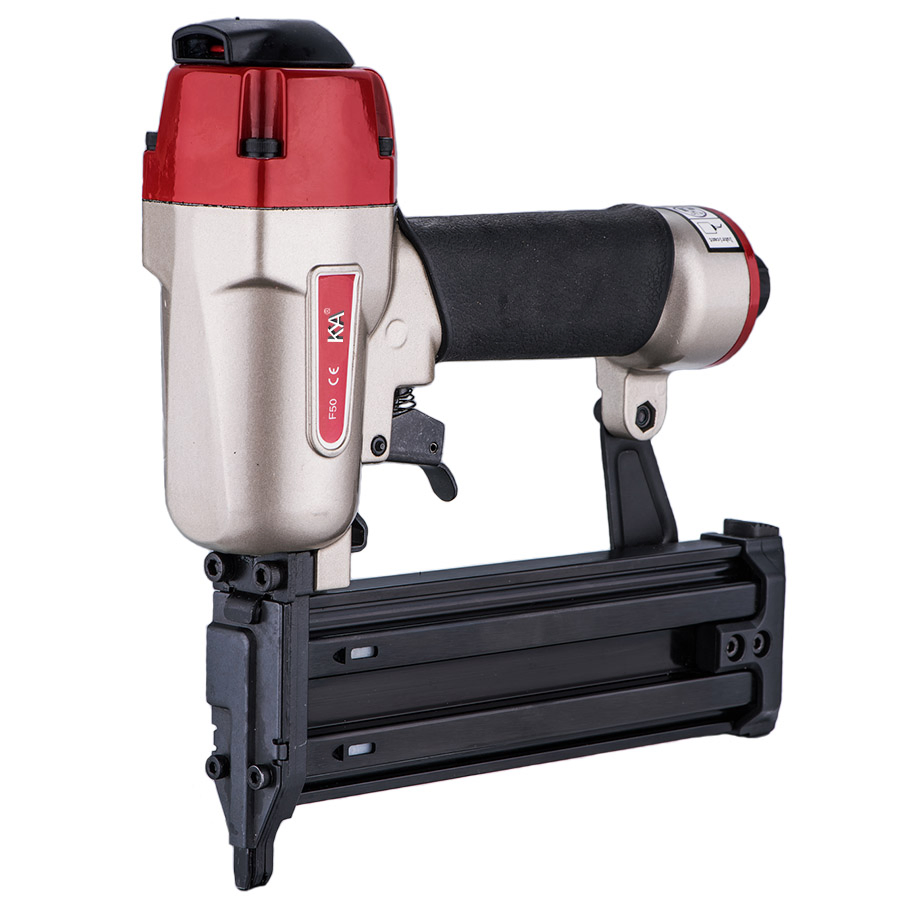

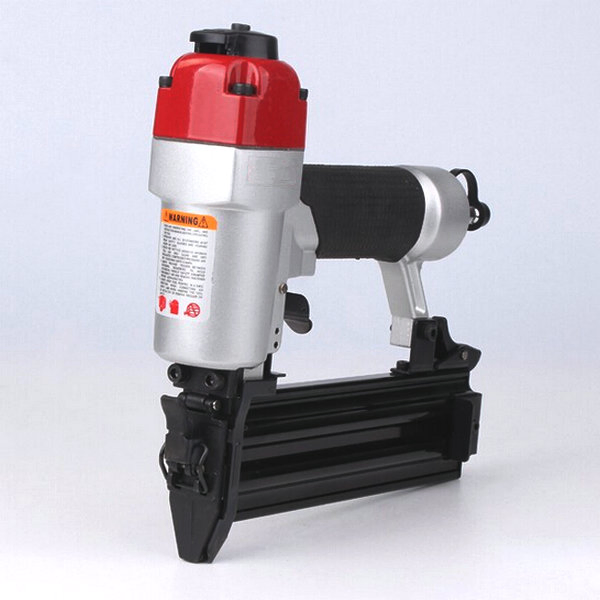

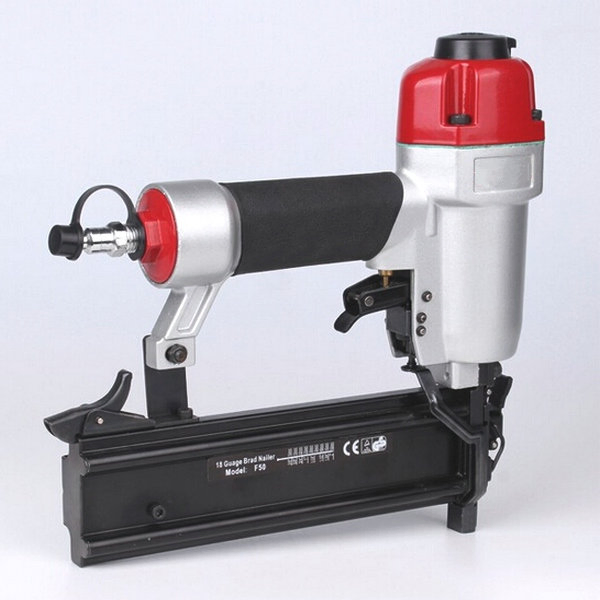

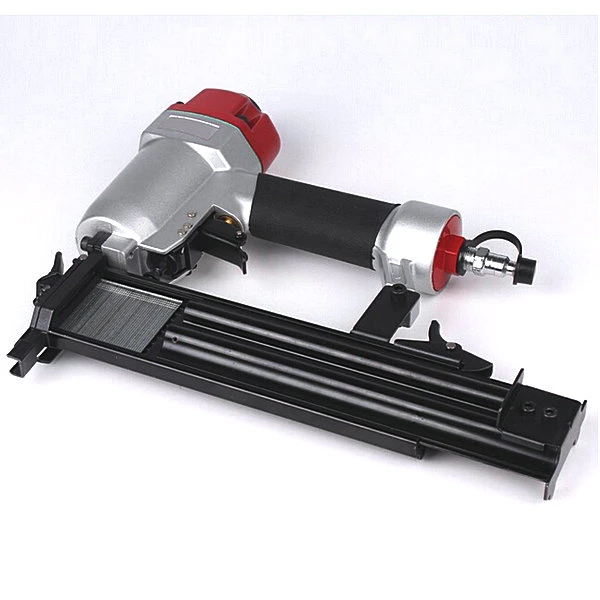

(F50) Pneumatic Brad Nailer
Key Features:
Main Advantages:
| Symptom | Problems | Solutions |
|---|---|---|
| Air leak in cylinder cap | 1. Loose head valve piston seal or o-rings 2. Worn/damaged o-ring or gasket |
Check and replace head valve piston set or gasket |
| Air leak in Trigger area | 1. Damaged o-ring in trigger valve 2. Dirt in trigger valve |
Check, clean, and replace o-rings |
| Air leak in nose | 1. Worn or damaged bumper 2. Loose driver piston unit |
Check and replace bumper or piston unit |
| Work weakly and sluggishly | 1. Worn piston o-ring 2. Inadequate lubrication |
Replace o-ring; add 2-6 drops of oil |
| Tool jams frequently | 1. Damaged driver unit 2. Bent driver guide cover |
Replace driver unit or guide cover |
| Nail cannot be shot | 1. Driver unit position error 2. Damaged pusher spring |
Check driver position or replace spring |
