Supreme German Quality Cross 4cutter Quick Stop Hammer Drill SDS Plus with Stopper for Depth Controlled Drilling in Concrete, Brick, Stone, Cement, etc.
1 / 5

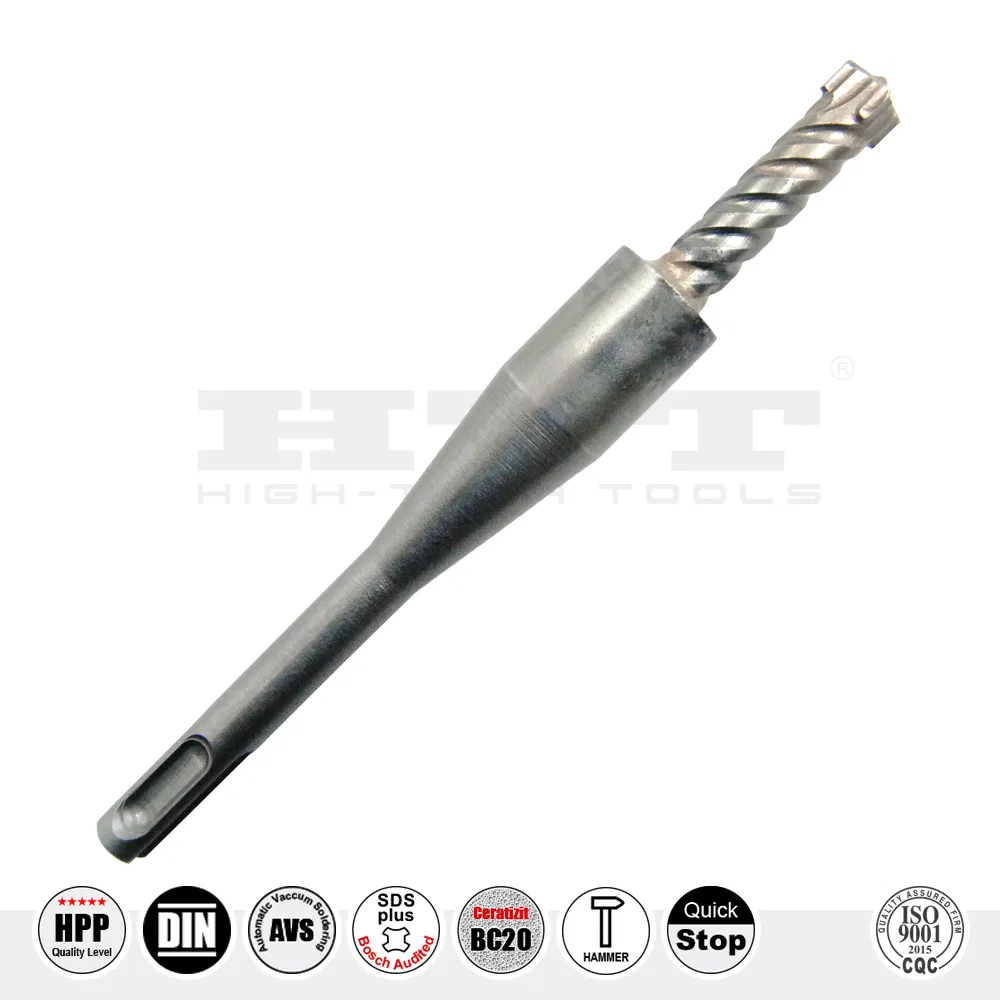

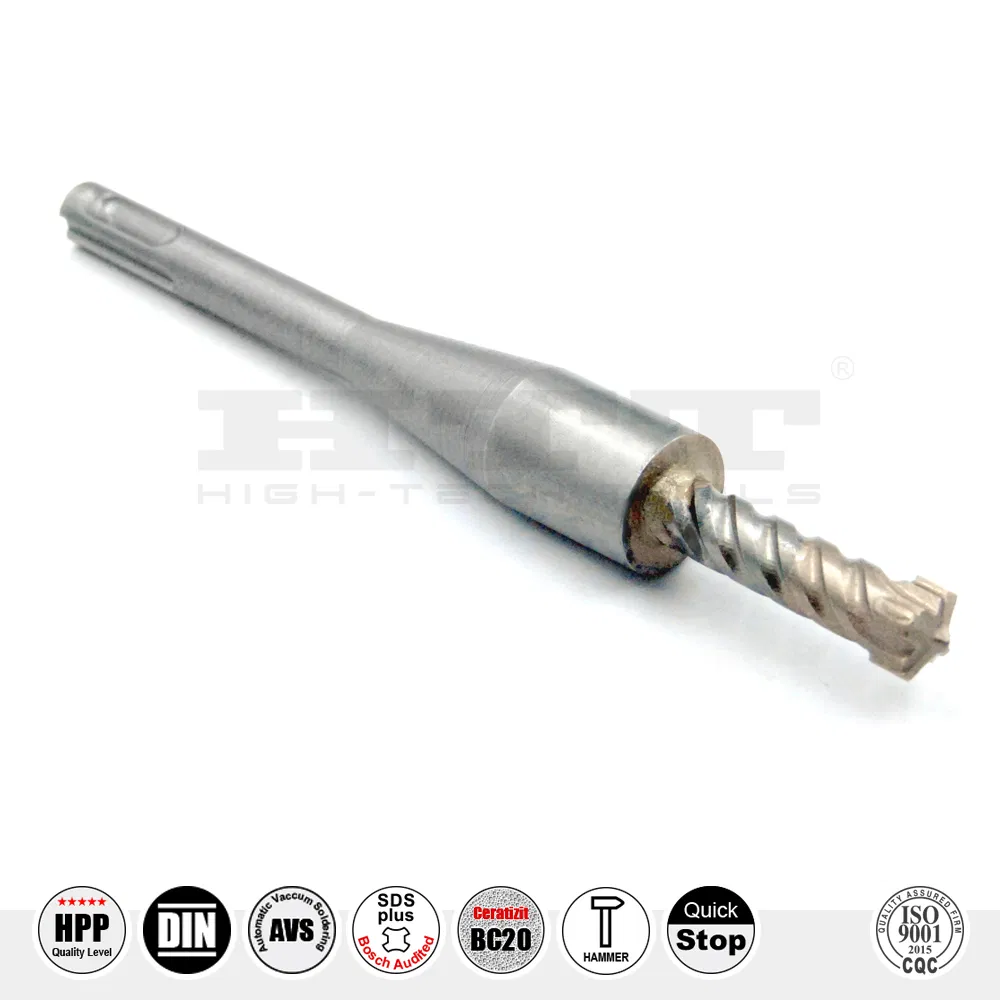

Supreme German Quality Cross 4cutter Quick Stop Hammer Drill SDS Plus with Stopper for Depth Controlled Drilling in Concrete, Brick, Stone, Cement, etc.

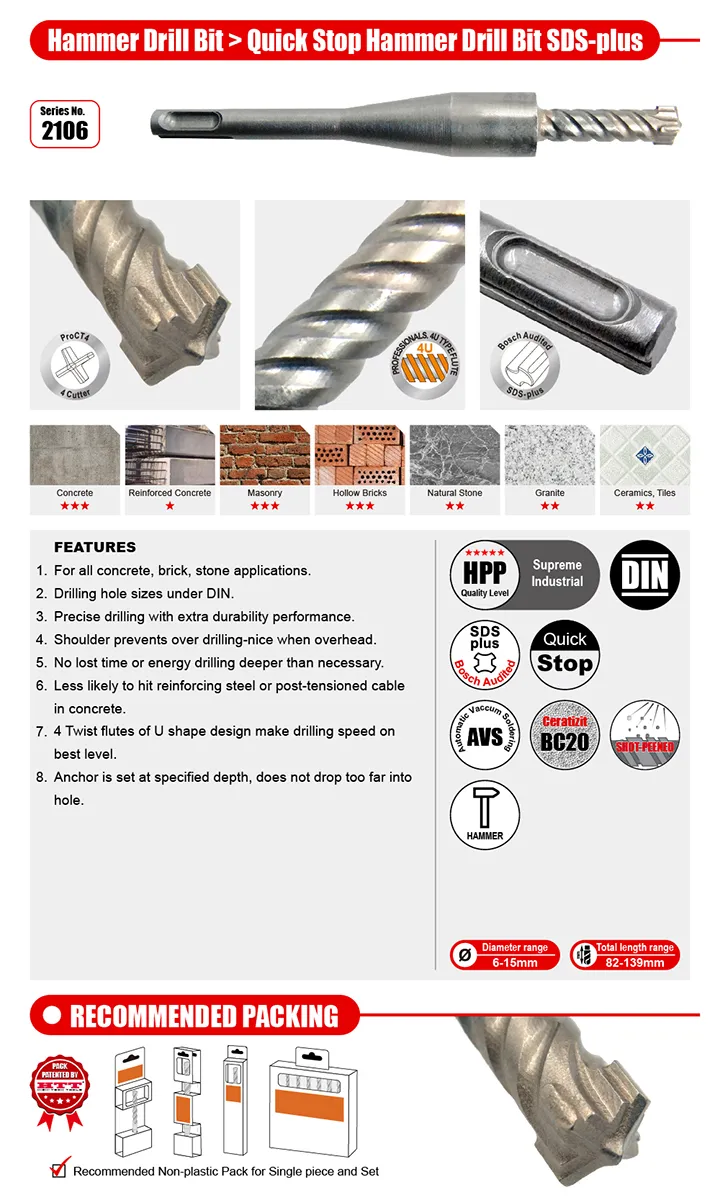

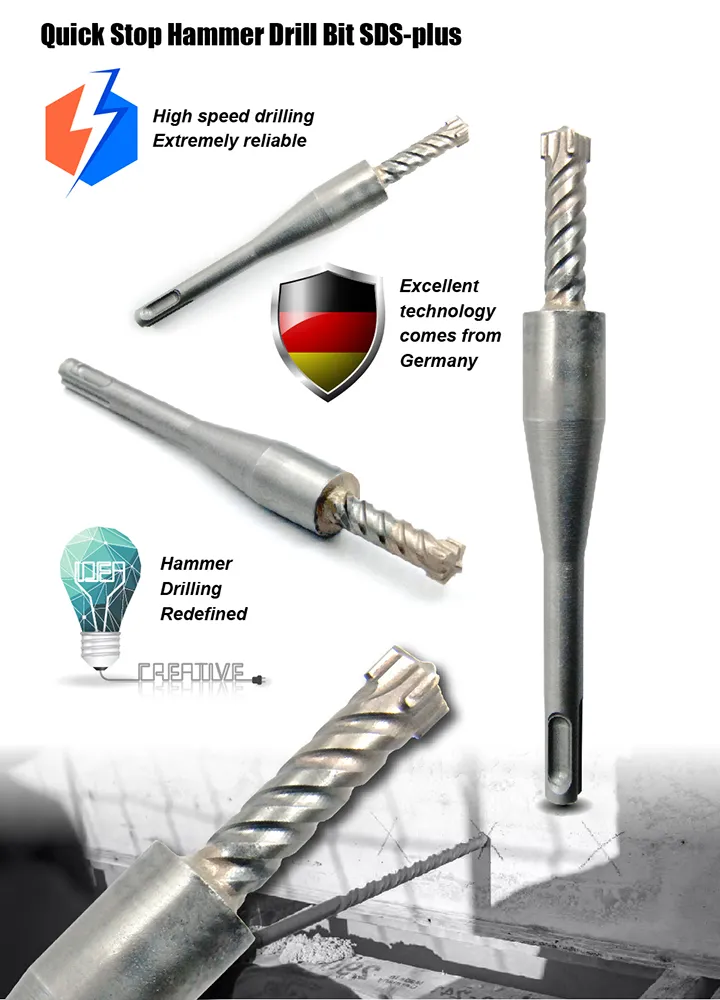

Quick Stop Hammer Drill SDS plus with Cross 4Cutter Tipped and 4U flute type.

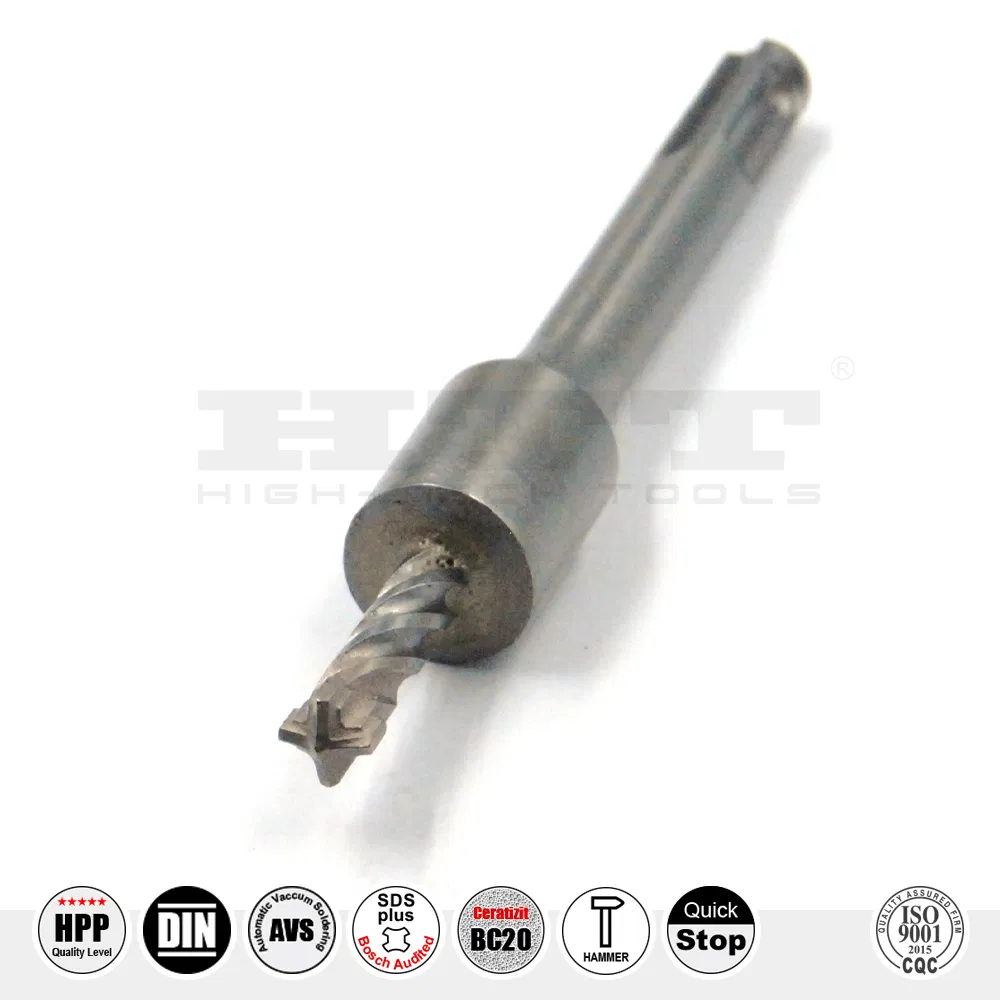

SDS-plus shank designed for precise depth-controlled hole drilling.
Ideal for fast volume assembly of fixings like drop-in anchors, stadium seats, and ventilation systems.
4U half-round flute maximizes dust rejection for higher drilling speeds.

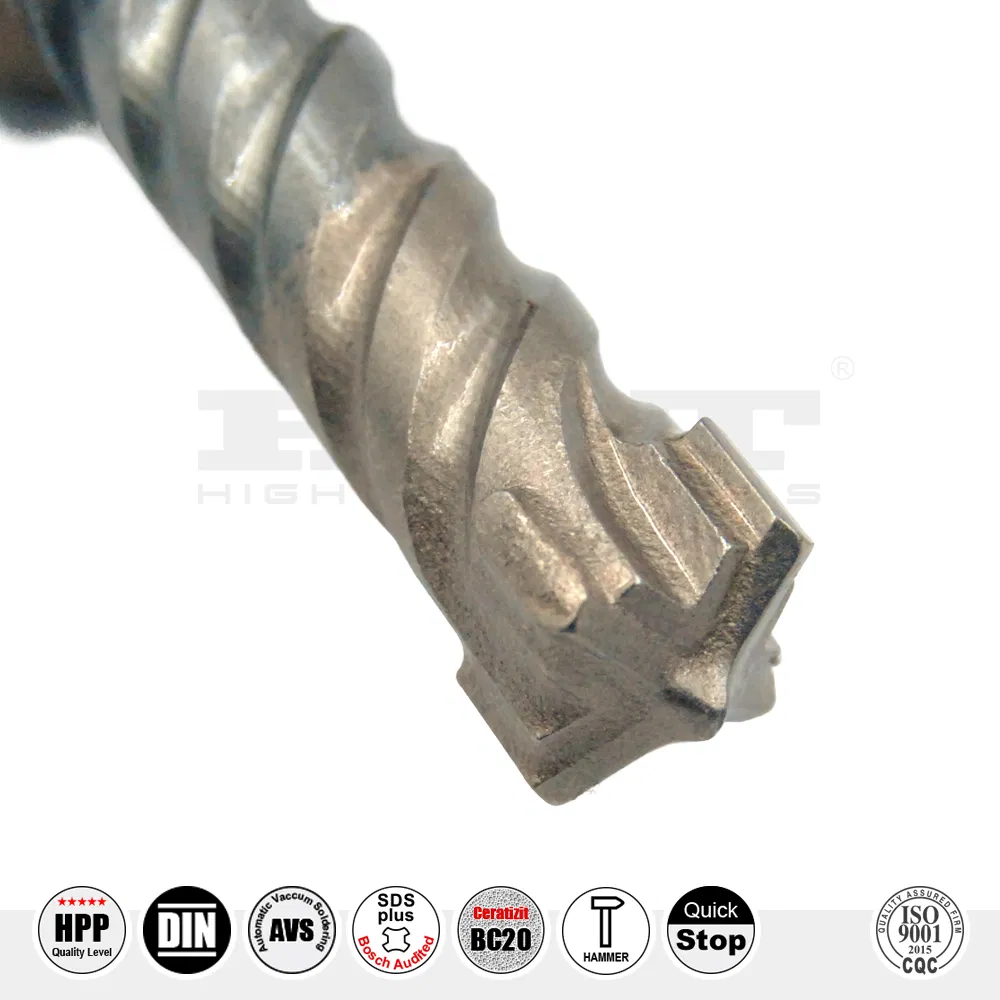

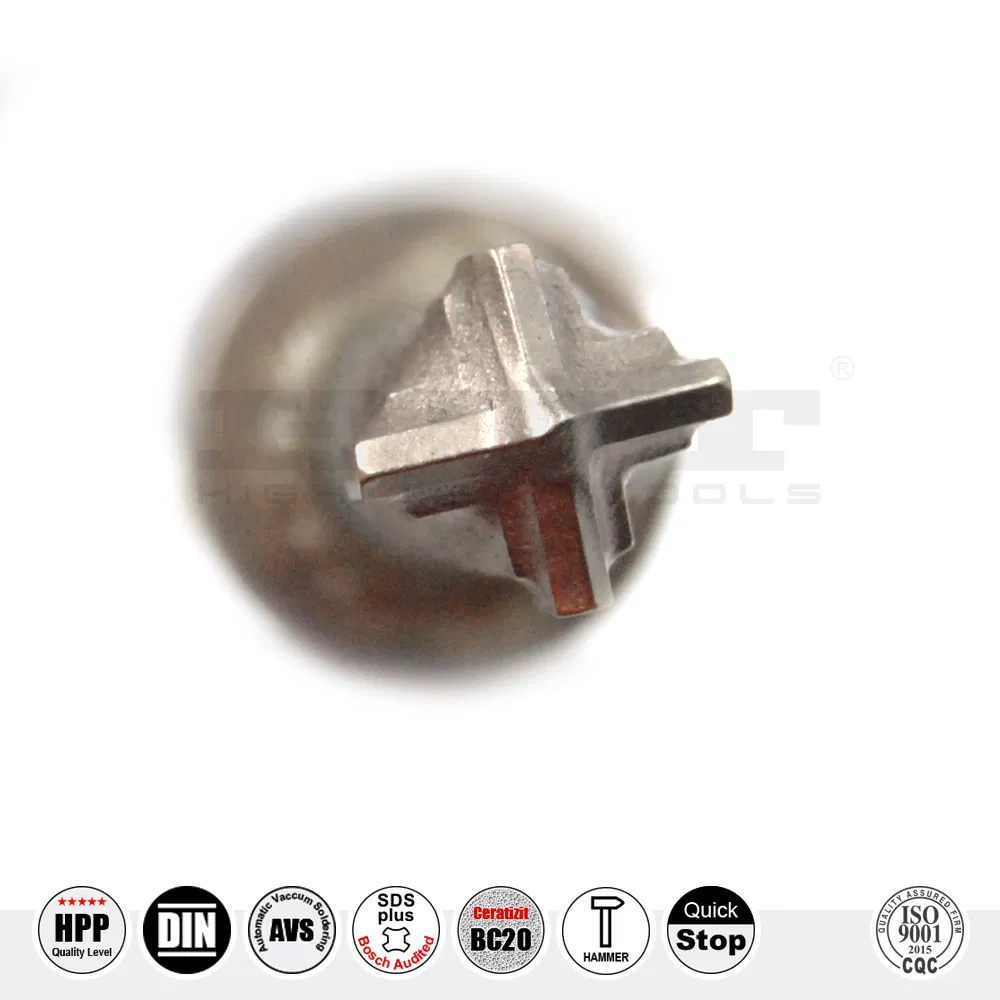

One-piece tip with 4 cutting edges suitable for all types of concrete, including reinforced.
Technical Specifications
Diameter (mm)
Drilling Depth (mm)
Overall Length (mm)
8
27
127
10
33
133
12
43
143
15
52
152
15
54
154
Frequently Asked Questions
What is the primary benefit of the "Quick Stop" design?
The depth stop design ensures precise and repetitive drilling depth, which is critical for installing drop-in anchors and other fixings that require exact hole depths.
Can this drill bit handle reinforced concrete?
Yes, the one-piece tip with 4 cutting edges is designed for all types of concrete, including reinforced concrete, brick, stone, and cement.
What material is used for the drill tip?
The drill bit features a high-quality Tungsten Carbide tip (Ceratizit Bc20 CT-4) for maximum durability and drilling efficiency.
How does the 4U flute improve performance?
The 4U half-round flute is engineered to maximize dust rejection, keeping the drilling speed fast and preventing the bit from overheating.
What shank type is compatible with this bit?
This drill bit uses a standard SDS Plus shank, making it compatible with most professional hammer drills on the market.
What surface treatments are applied to these bits?

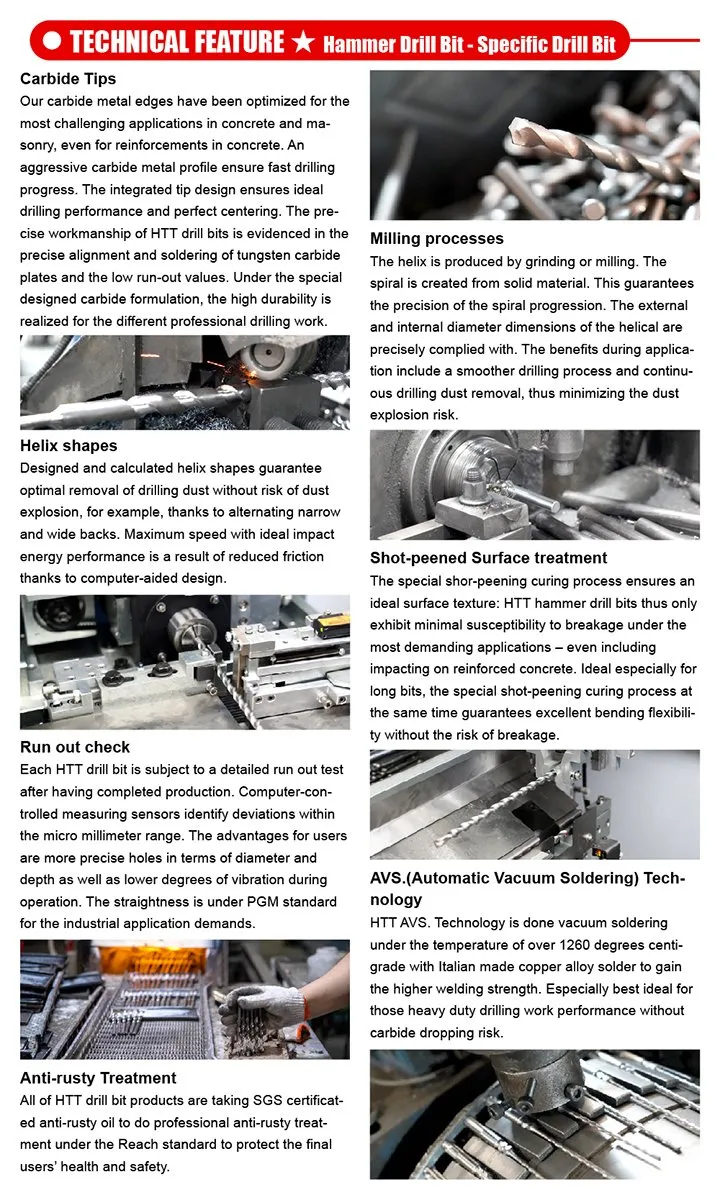

The bits undergo shot-peening and Zn-coating surface treatments to enhance corrosion resistance and surface strength.
